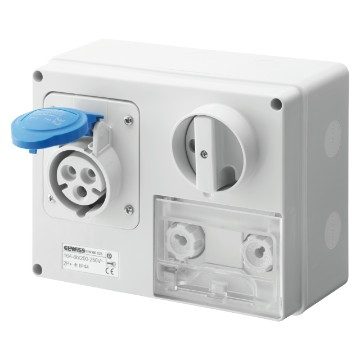

FIXED INTERLOCKED HORIZONTAL SOCKET-OUTLET - WITH BOTTOM - WITH FUSE-HOLDER BASE - 3P+N+E 16A 200-250V - 50/60HZ 9H CBF - IP44

Code: GW66028
Range: IB Range
Interlocked socket-outlets IEC 309 standard
System of industrial socket-outlets for power distribution in the industrial and commercial sector, equipped with locking device, enabling the most varied professional requirements of installers and panel builder to be met. The IB range is composed of 4 product lines: IP67 standard vertical socket-outlets, IP66 vertical socket-outlets for heavy duty applications, IP44 horizontal socket-outlets and IP44 and IP55 compact socket-outlets.

125 °C (active parts) - 80 °C (passive parts)

IP44

IK08

850 °C (active parts) - 650 °C (passive parts)

Technical Info

Information
Download
Software
Certificates
Type Horizontal
Fuse breacking capacity > 50 kA
Thermo-pressure with ball 125 °C (active parts) - 80 °C (passive parts)
IP degree IP44
No. of poles 3P+N+E
Mechanical resistance IK08
Frequency 50/60 Hz
Operating temperature -25 +40 °C
Protection Fuse-holder base (CBF)
With back-mounting box Yes
Electrocod 2220
Glow wire test 850 °C (active parts) - 650 °C (passive parts)
Colour Blue
Rated current (A) 16
Reference h 9
Rated voltage 200-250 V
Fuses holder E14
Ware Number 85366990

Product Data Sheet

BIM

DXF drawing

Technical characteristics - EN

Technical characteristics - IT

Technical characteristics - ES

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

Show more

ENERGYpro

Boards for building sites, campings-piers and distribution

Show more

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Show more

CADpro

Advanced design of electrical systems

Show more

PRICE

Estimation of electrical systems

Show more

Reach Declaration

Display the certificate

CE marking

EQUIPMENT AND NOTES
ACCESSORIES SUPPLIED: coupling for Ø 20 mm and Ø 25 mm conduits and Ø 29 mm cable gland.
CHARACTERISTIC: compatible with ND fuses, except for versions 16A - 500V that have to accomodate GG cylindrical fuses ø 10,3x38 mm and version 32A - 500V that have to accommodate GG cylindrical fuses ø 14x51 mm.
