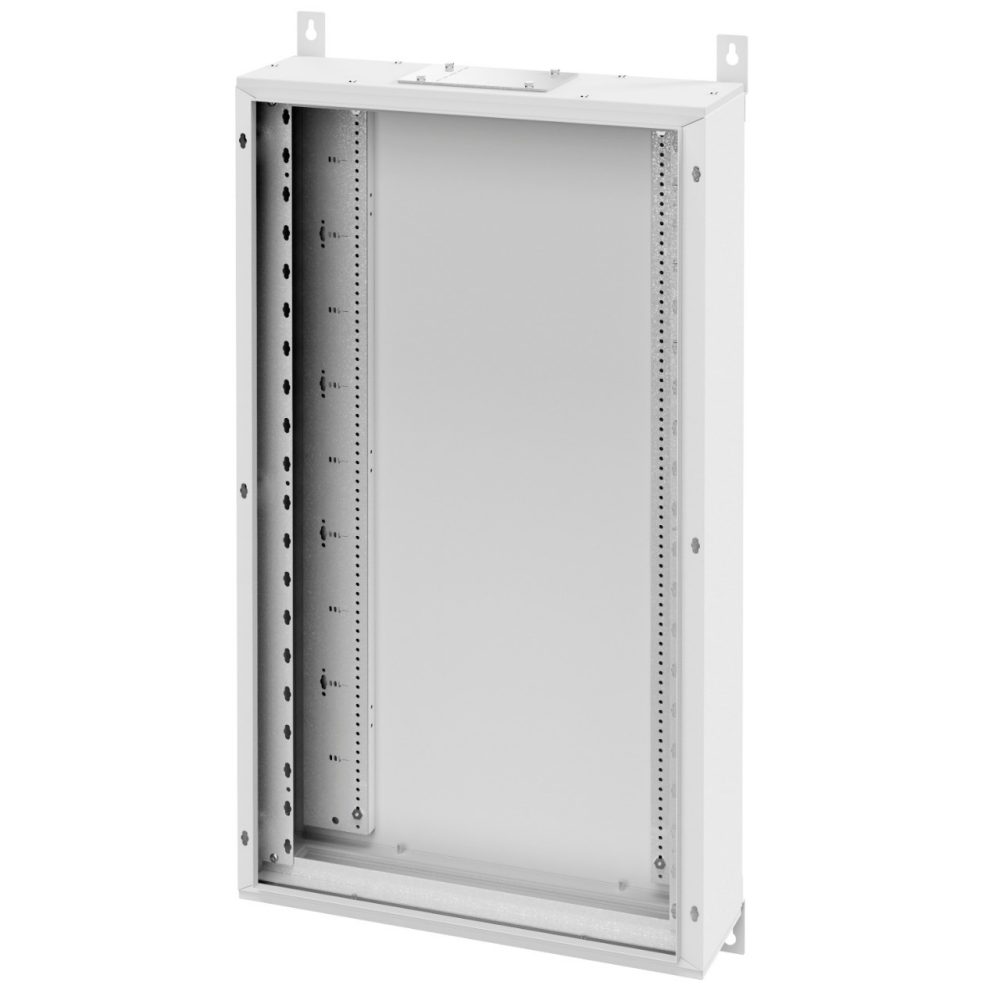

CASE - WALL-MOUNTING DISTRIBUTION BOARD - QDX 630 H - (600+200)X1200X200MM

Code: GWD3104

Range: QDX 630 H range
Monobloc and modular distribution boards up to 630A - IP55

The QDX 630 H range of boards is available in two distinct solutions, wall and floor mounting. Monobloc structure in welded sheet metal for wall mounting version and modular structure with fully removable front for floor mounting version. It is ideal in all those applications where maximum protection from external agents is needed.

Technical Info

Information
Download
Software
Certificates
Functional dim. LxD (mm) (600+200)x1200x200
External dim. LxD (mm) 840x1260x215
Ware Number 85389099

User guide

Brochure - EN

Brochure - IT

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - ES

CADpro

Advanced design of electrical systems

Show more

PBT-Q

Low voltage systems and boards

Show more

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Show more

PRICE

Estimation of electrical systems

Show more

CE marking

EQUIPMENT AND NOTES
EQUIPMENT: no. 4 wall mounting brackets.
NOTES: The GWD3103, GWD3104, GWD3109 and GWD3110 cases are equipped with an associated side compartment (200 mm wide) for the cables, terminal block or bar system. To secure the cables in the side compartment, use the pair of GWD3467 crosspieces, to be ordered separately.
The doors of the side compartment for codes GWD3103, GWD3104, GWD3109 and GWD3110 are supplied pre-mounted on the case.
