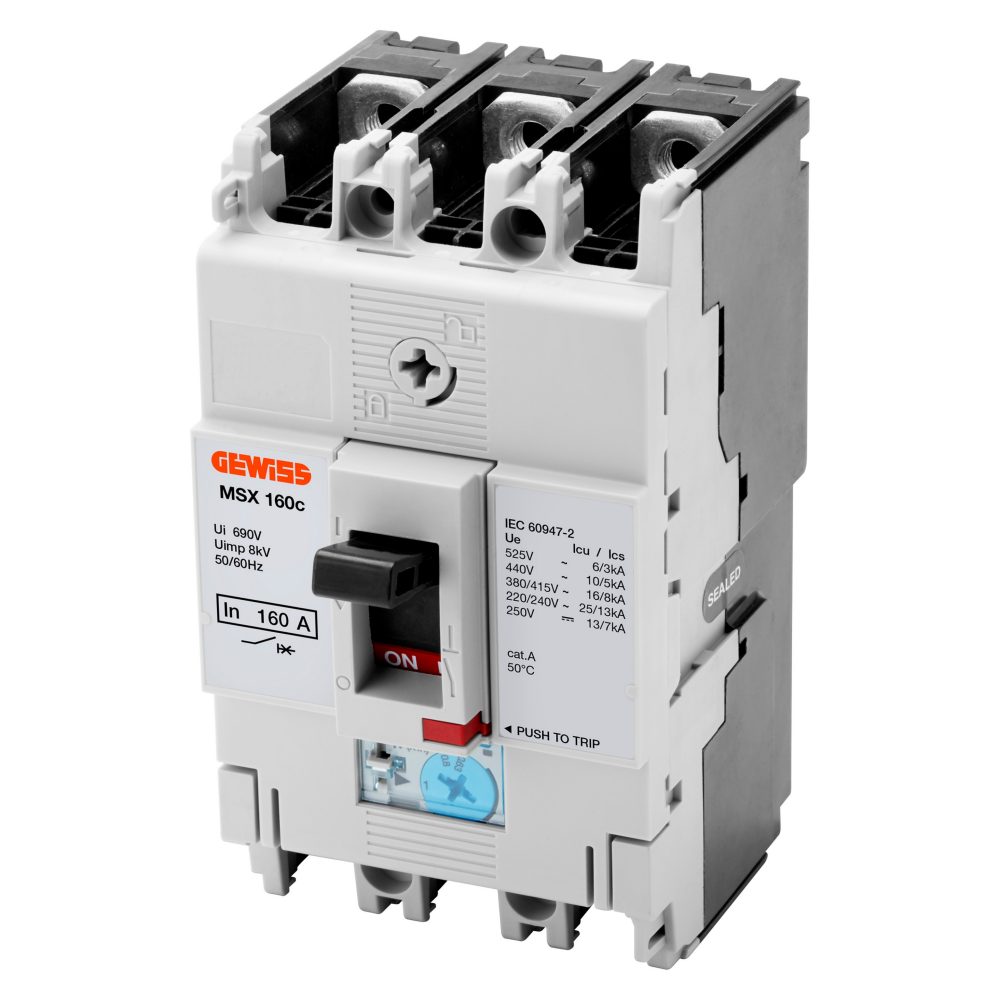

MSX 160c - COMPACT MOULDED CASE CIRCUIT BREAKERS - ADJUSTABLE THERMAL AND FIXED MAGNETIC RELEASE - 25KA 3P 125A 525V
Code:
GWD9066
Range: MSX
Moulded case circuit breakers for power distribution
Moulded case circuit breakers for power distribution
The moulded case circuit breakers MSX range is made up of circuit breakers with thermo-magnetic release, circuit breakers with thermo-magnetic release and Overcurrent Protection, circuit breakers with electronic release and switch disconnectors.
Technical Info
Information
Download
Software
Certificates
Description
Interruttore automatico scatolato
Code
MSX 160c
No. of poles
3P
Rated current
125 A
Release
Electromechanic
ELECTRICAL CHARACTERISTICS
-
MECHANICAL CHARACTERISTICS
-
Standard
IEC/EN 60947-2
Execution
Fixed
Use category
A
DIN rail mounting
Yes, by means of accessory
Rated frequency (Hz)
50 / 60
Can be equipped with motor operator
No
Rated operating voltage (Ue)
525 V ac - 250 V dc
Compatible interlock
-
Rated impulse withstand voltage (Uimp)
8 kV
Terminals supplied
Front FC
Overvoltage category
IV
Assembly position
Any
Insulation voltage (Ui)
690 V
Upline/downline power supply
Yes
Thermal regulation
0.63 - 0.8 - 1 x In
Electrical life (415Vac)
14.000 cycles
Magnetic regulation
Fixed - 1.500 A
Mechanical life
20.000 cycles
Neutral protection
-
Operating temperature
-5°C +65°C
Total power loss
33 W
Stocking temperature
-20° +65°
Rated short-circuit current making capacity (Icm)
-
Weight (kg)
0.8
Rated short-time withstand current for 0,3s (Icw)
-
Width
75 mm
Idn regulation
-
Height
130 mm
DT regulation
-
Depth
68 mm
SERVICE BREAKING CAPACITY (ICU)
-
RATED BREAKING CAPACITIY (ICS)
-
220/240Vac
35 kA
220/240Vac
18 kA
400/415Vac
25 kA
400/415Vac
13 kA
440Vac
15 kA
440Vac
7.5 kA
525Vac
7.5 kA
525Vac
4 kA
690Vac
-
690Vac
-
250Vdc
20 kA
250Vdc
10 kA
Ware Number
85362090
EQUIPMENT AND NOTES
NOTES: or mounting on EN 50022 DIN rail, choose the fixing bracket GWD8875.
The space taken up on the EN 50022 DIN rail is approximately 4 modules for 3P versions and 6 modules for 3P+N versions.
ACCESSORIES SUPPLIED: 25A ÷ 100A versions supplied with front terminals for copper cables (FW).
125A and 160A versions supplied with front terminals (FC).
CHARACTERISTICS: adjustable thermal release Ir = 0.63 - 0,8 - 1 x In
Fixed magnetic release Ii:
25A-40A: Ii = 600A
63A-80A: Ii = 1000A
100-125A: Ii = 1500A
160A: Ii = 1600A
The space taken up on the EN 50022 DIN rail is approximately 4 modules for 3P versions and 6 modules for 3P+N versions.
ACCESSORIES SUPPLIED: 25A ÷ 100A versions supplied with front terminals for copper cables (FW).
125A and 160A versions supplied with front terminals (FC).
CHARACTERISTICS: adjustable thermal release Ir = 0.63 - 0,8 - 1 x In
Fixed magnetic release Ii:
25A-40A: Ii = 600A
63A-80A: Ii = 1000A
100-125A: Ii = 1500A
160A: Ii = 1600A
