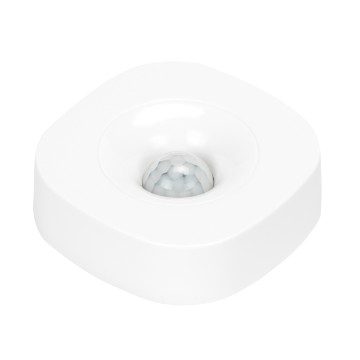

MOTION SENSOR - WHITE - IP30 - BATTERY OPERATED - ZIGBEE

Code: GWA1511
Range: Home&Building Pro
Home & Building PRO system
Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential solutions and small-to-medium offices. The offer is highly customisable, complete with all functions and can be integrated with third-party devices and systems (video intercom, smart locks, entertainment). It can be controlled via the APP, voice assistants or touch panels. With Home and Building PRO, you can also manage ZigBee devices and communicate with the Google Home IoT platforms, Amazon Alexa and IFTTT.

IP30

Technical Info

Information
Download
Software
Video
Certificates
Category Motion sensor
Colour White
Communication protocol Zigbee (IEEE 802.15.4)
Supply voltage Battery powered
Power supply batteries CR123 replaceable
Output power 3 dBm
Light sensor 3…70.000 lux
Max range 6 m
Horizontal bearing angle ± 45°
Vertical bearing angle ± 45°
Temperature sensor 0…50 °C
Standard 2014/53/EU, EN 60669-2-1, ETSI EN 300 328
IP degree IP30
Working temperature 0 ÷ +50 °C
Stocking temperature -20 ÷ +80 °C
Relative humidity (non-condensative) 10 ÷ 95%
Dimensions LxHxD (mm) 82x82x28
Electrocod 051A
Ware Number 90271010

Product Data Sheet

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - ES

Disposal

User guide (HR-IW)

User guide (MK-SQ-SL-HU-AR-TR)

User guide (IT-EN-FR-ES-DE-PT-RO)

HOME

Configuration of the home electrical system

Show more

ZIGBEE

Management and programming of zigbee systems

Show more

FENICE

APP for control and programming of connected devices

Show more

CADpro

Advanced design of electrical systems

Show more

PRICE

Estimation of electrical systems

Show more

Conformity declaration

Zigbee certificate GWA1511

CE marking

EQUIPMENT AND NOTES
CHARACTERISTICS: motion sensor with horizontal detection angle: ±45° and vertical detection angle: ±45°. Includes a brightness sensor and a temperature sensor. CR123 (replaceable) type battery power supply.
NOTES: Available on stock until new code GWA1511A will be available.
Wall or shelf installation via included accessories.
For the control of actuations, use the sensor in combination with the connected Zigbee actuators GW1x826, GWA1201 or GWA1202, GWA1221 or GWA1222 (max 5 sensors per actuator) or with the connected Zigbee actuators GWA1526, GWA1521, GWA1522, GWA1523 (max 1 sensor per actuator). The Zigbee-connected actuators GW1x826, GWA1201, GWA1202, GWA1221, GWA1222 can only be controlled in combination with the “Home Gateway” GW1x840.
