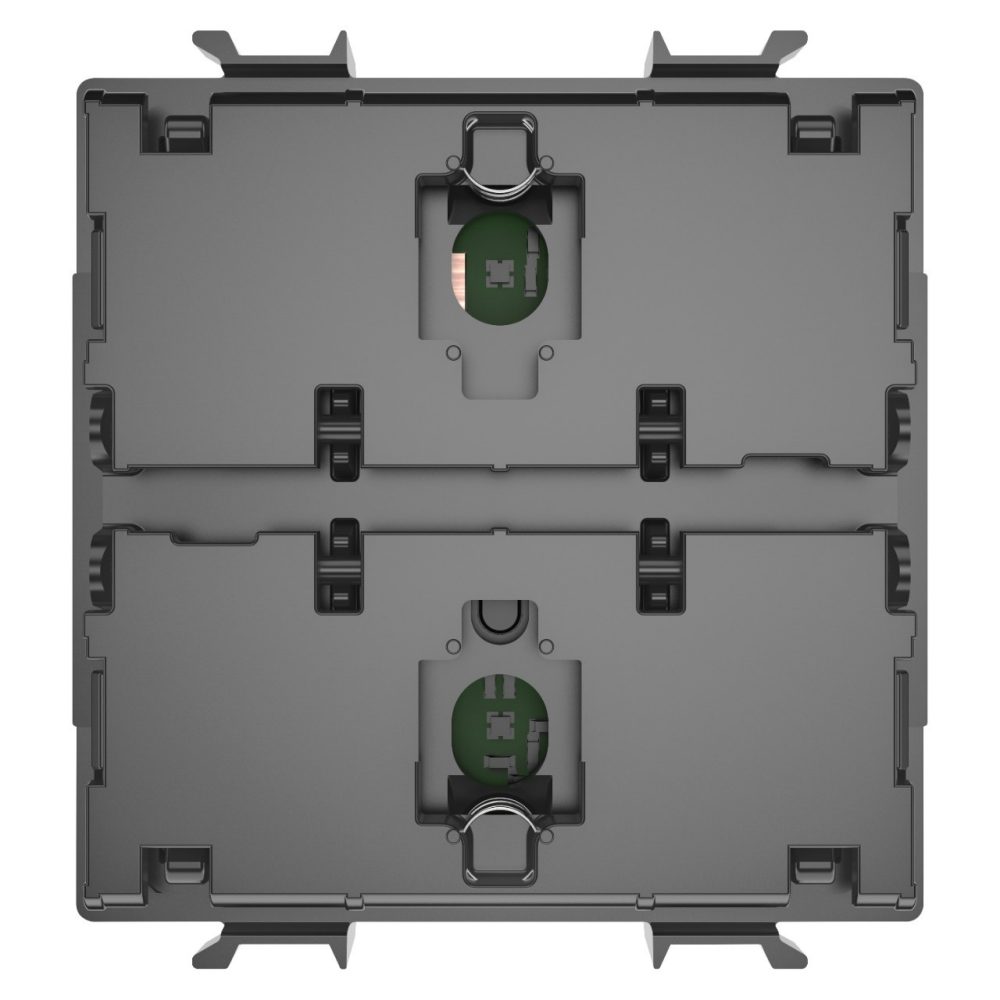

CONNECTED MODULE WITH 2 AXIAL COMMANDS - ZIGBEE - 100-240 V ac 50/60 Hz - 2 MODULES - CHORUSMART

Code: GWA1242
Range: Connected SMART HOME
Connected Smart Home system
The connected system, based on the Zigbee wireless protocol, offers a full range of solutions for smart homes and small offices that are suitable for both new buildings and renovations.
It enables you to control safety, comfort and consumption, through a unique user experience, using the Home Gateway APP and EGO Smart plates. The system integrates with the Google Home IoT platforms, Amazon Alexa and IFTTT, and all functions can be controlled with Google and Alexa voice assistants.

IP20 (with button key)

Technical Info

Information
Download
Software
Video
Certificates
Power supply 100 ÷ 240 V ac - 50/60 Hz
No. of channels 2
No. modules 2
Radio connections Zigbee (IEEE 802.15.4)
Standard -
Working temperature -5 ÷ +45 °C
Relative humidity (non-condensative) Max 93%
Power output Zigbee 10 dBm
Wiring terminals With screw
Terminal tightening capacity
stranded cables (mm²)
Max. 1,5
Terminal tightening capacity
solid cables (mm²)
Max. 1,5
Category 2-channel push-button control panel
No. input channels 2 (for local command replication or sending additional Zigbee commands)
Input voltage Mains supply voltage
IP degree IP20 (with button key)
LED colour Blue
Local control Via 2 front push buttons (to complete with button key)
Power supply of EGO SMART plate Yes
Zigbee control extension if installed in an EGO SMART plate (SHIFT function) Yes (2 Zigbee command activated with front push buttons)
Ware Number 85389099

Product Data Sheet

User guide

System manual and technical characteristics - IT

System manual and technical characteristics - EN

CADpro

Advanced design of electrical systems

Show more

PRICE

Estimation of electrical systems

Show more

FENICE

APP for control and programming of connected devices

Show more

HOME

Configuration of the home electrical system

Show more

ZIGBEE

Management and programming of zigbee systems

Show more

CE marking

Conformity declaration

EQUIPMENT AND NOTES
CHARACTERISTICS: devices for the sending of 2 independent ZigBee commands via the operation of 2 local push buttons with axial activation.
Equipped with 2 inputs (auxiliary axial commads, traditional switches and push buttons, sensors etc.) for sending ZigBee commands and status.
The devices are equipped with two blue LEDs that can be configured to facilitate localisation at night or to display the status of the loads with on/off type controls and are designed to supply power to the EGO SMART plate within which they are housed.
APPLICATIONS: sending of 2 ZigBee commands (On/off and lamp dimming commands, roller shutter command, generic load command, scenarios). Using the inputs, it is possible to add ZigBee commands to other actuators (lamp on/off and dimming control, roller shutter and Venetian blind control, generic load control, scenarios) or send sensor status over the ZigBee network.
Using this device in combination with the EGO SMART plate, 2 further ZigBee commands can be sent, activated via the push buttons on the device when the SMART plate has the "SHIFT" function enabled.
NOTES: the devices must be completed with a front push button: GWA1241 must be completed with push buttons GW1x553S or GW1x557S; GWA1242 must be completed with push buttons GW1x554S or GW1x558S.
