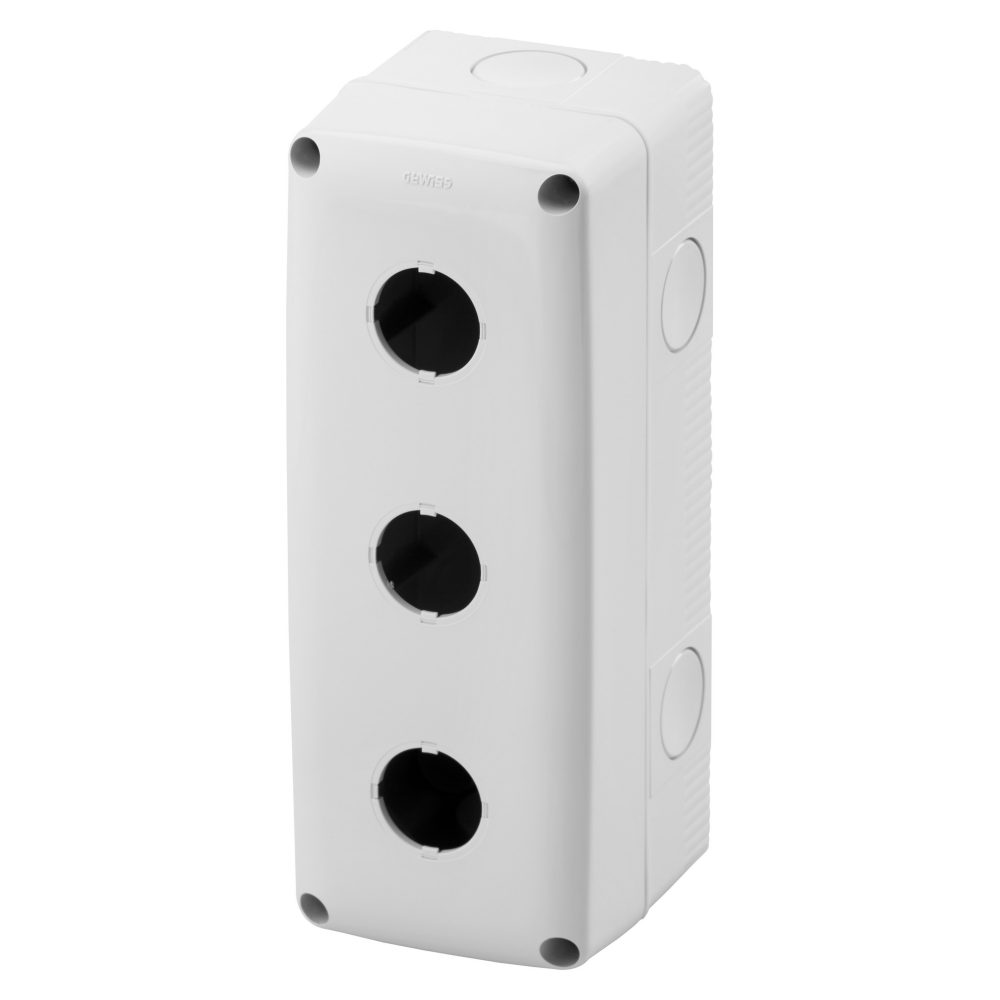

EMPTY ENCLOSURE FOR PUSH-BUTTONS, CONTROLS AND INDICATORS - 3 GANG - DIAMETER 22mm - GREY RAL 7035 LID - IP66
Code:
GW27103
Range: 27 COMBI Range
Wall-mounting enclosures and modular components
Wall-mounting enclosures and modular components
A complete, versatile system of modular enclosures, perfectly integrated in the SYSTEM domestic range capable to meet the high protection installation requirements of domestic, commercial and industrial sectors. The 27 COMBI range is available both in the IP40 version and in watertight versions with IP55 and IP65 degree of protection, recommended for all outdoor applications which are subjected to extreme atmospheric conditions.
IP66
IK07
650 °C
70 °C
Technical Info
Information
Download
Software
Certificates
Description
For push button
No. gangs
3
Colour
Grey RAL 7035
Type of knockout holes
Removable with tool
Side entries
4xØ 23
Top entries
1xØ 23
Bottom entries
1xØ 23
IP degree
IP66
Insulation class
II
Mechanical resistance
IK07
Lid screws
Stainless steel
Torque screws tightening
0.8 NM
Outer dim. LxHxD (mm)
66x171x65
Glow Wire Test
650 °C
Thermo-pressure with ball
70 °C
Standard
EN 60670-1
Installation temperature
-25 +60 °C
Electrocod
0212
Ware Number
85381000
EQUIPMENT AND NOTES
CHARACTERISTICS: degree of protection guaranteed with IP66 operators correctly installed. The hole seat has knockouts for installing operators with any reference. GW27111 with specific yellow lid for assembling emergency push-buttons GW74361, GW74362 and GW74365.
NOTES: the empty containers can be supplied with push-buttons, commands and indicators Ø 22mm and single contacts, type GW74501 and GW74502.
NOTES: the empty containers can be supplied with push-buttons, commands and indicators Ø 22mm and single contacts, type GW74501 and GW74502.
