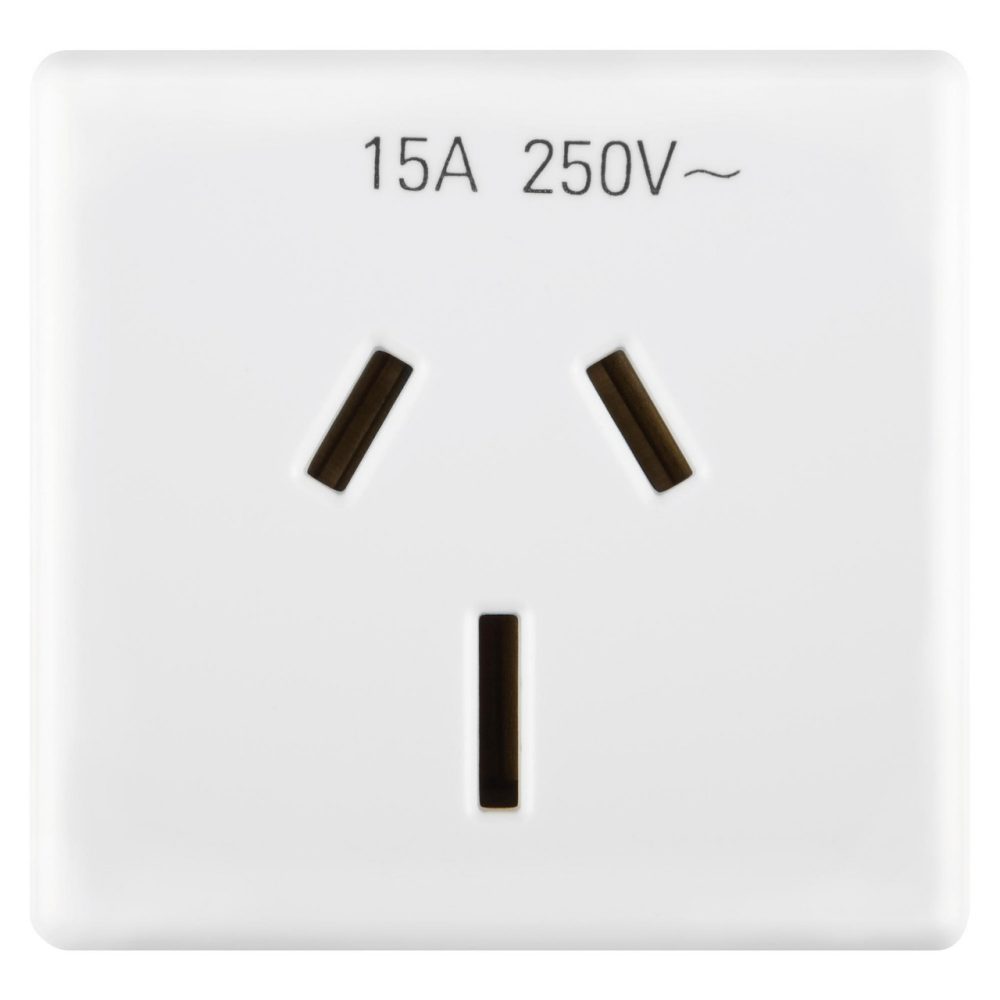

AUSTRALIAN STANDARD SOCKET-OUTLET 250V ac - 2P+E 15A - FLAT PLUG - 2 MODULES - SYSTEM WHITE

Code: GW20356
Range: SYSTEM WHITE - Domestic range
Modular devices
The System modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements. Colour and finiture: glossy white, bright and versatile
Ideal for flush-mounting solutions (for rectangular or square boxes), surface-mounting solutions, and for special applications. The range includes commands, socket- outlets, protection, indicators, connectors and devices for the control, safety and comfort of your home.

125 °C

850 °C

Technical Info

Information
Download
Software
Certificates
Category Power
Description 2P+E - 15A
Colour White
Voltage 250 V ac
Earth pit -
Standard Australian
Characteristics -
For plug pins Flat
Wiring terminals With screw
Standard IEC 60884-1; AS/NZS 3112
Resistance at test voltage 2000 V at 50 Hz for 1 minute
Prolonged operation switch (no.of position changes) 10.000 at In 250 V ac cosφ=0,8
Thermo-pressure with ball 125 °C
Glow Wire Test 850 °C
Terminal grip on cable traction > 50 N
Terminal tightening capacity
stranded cables (mm²)
min. 1,5 - max. 2x4
Terminal tightening capacity
solid cables (mm²)
min. 1,5 - max. 2x2,5
No. SYSTEM modules 2
Material Technopolymer
Electrocod 0131
Ware Number 85366990
