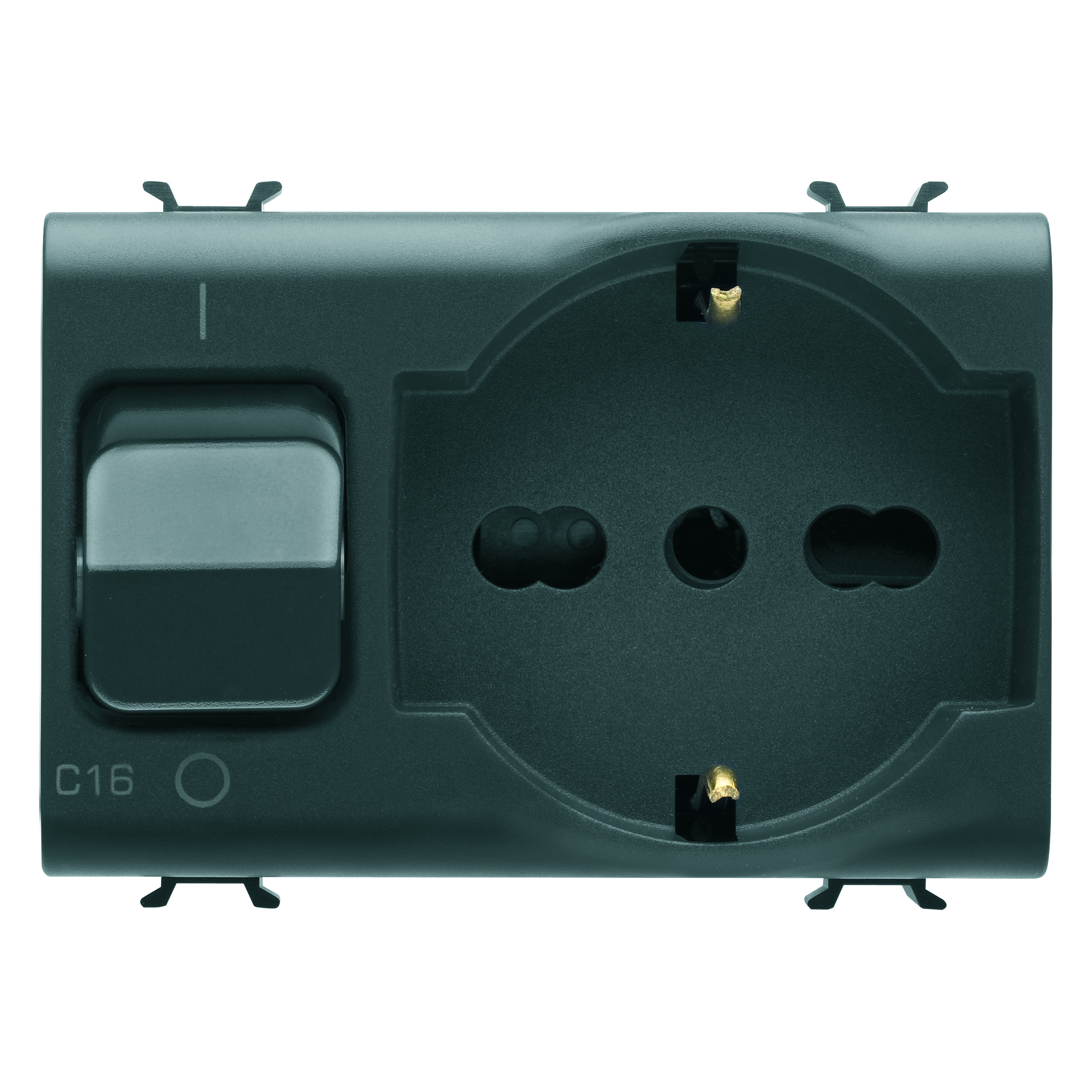

interlocked switched socket-outlet - 2p+e 16a p40 - with miniature circuit breaker 1p+n 16a - 230v ac - 3 modules - satin black - chorusmart.

INTERLOCKED SWITCHED SOCKET-OUTLET - 2P+E 16A P40 - WITH MINIATURE CIRCUIT BREAKER 1P+N 16A - 230V ac - 3 MODULES - SATIN BLACK - CHORUSMART.

Code: GW12312

Download Technical Sheet

Range: CHORUSMART - Domestic range
Black modular devices

The ChoruSmart modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements. Available in satin black, elegant and classy, they include rocker button keys with ½, 1 and 2 modules to optimise space, and axial keys in EVO or SMART version for advanced functions. The front attachment system facilitates assembly and release without removing the support.

125 °C

850 °C

Technical Info

Information

Download

Software

Certificates

Category Dual amperage interlocked socket-outlet

Description 2P+E - 16A

Colour Satin black

Type Interlocked

Voltage 230V ac

Standard English

Wiring terminals With screw

Protection MCB

Socket-out type P40

Miniature circuit breakers 1P+N 16A

Breaking capacity 3 kA

Standard IEC 60884-1; EN 60898-1

Resistance at test voltage 2000 V at 50 Hz for 1 minute

Insulation resistance > 5 MOhm

Prolonged operation socket (no.of position changes) 10.000 at In 250 V ac cosφ=0,8

Thermo-pressure with ball 125 °C

Glow Wire Test 850 °C

Terminal grip on cable traction > 50 N

Terminal tightening capacity stranded cables (mm²) min. 0,75 - max. 2x4

Terminal tightening capacity solid cables (mm²) min. 0,5 - max. 2x2,5

No. modules 3

Electrocod 0131

Material Technopolymer

Ware Number 85366990

Product Data Sheet

Technical characteristics

Disposal

User guide

Go to download area Go to download area

PRICE

Estimation of electrical systems

HOME

Configuration of the home electrical system

64-8

Performance level of the electrical system

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

CADpro

Advanced design of electrical systems

Go to software area Go to software area

CE marking

REACH information

Related products

Gewiss Code

Description

Socket-out type

Miniature circuit breakers

Breaking capacity

No. modules

GW12311

2P+E - 16A

P17-P11

1P+N 16A

3 kA

GW12312

2P+E - 16A

P40

1P+N 16A

3 kA

Show All Show All

EQUIPMENT AND NOTES

CHARACTERISTICS: Interlocked switched socket-outlets with automatic miniature circuit breaker (C characteristic). Pits under tension only with plug inserted.
APPLICATIONS: suitable for installation in the system terminations to protect the load.
