Beschreibung

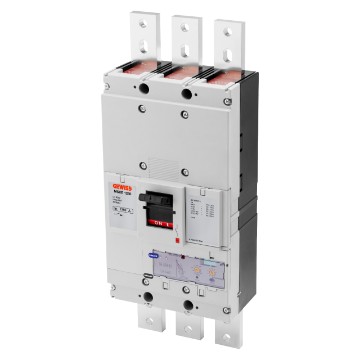

Interruttore automatico scatolato
Artikelnr.
MSXE 1250
Anz. Pole
3P
Bemessungs- strom
1250 A
Auslöser
elektronisch
ELECTRICAL CHARACTERISTICS
-
MECHANICAL CHARACTERISTICS
-
Norm
IEC/EN 60947-2
Ausführung
Fest
Kategorie
B
DIN rail mounting
Nein
Bemessungs- frequenz (Hz)
50 / 60
Accessoriabile con comando motore
Sì
Rated operating voltage (Ue)
690 Vac
Compatible interlock
-
Bemessungsstoß-
spannungsfestigkeit (Uimp)
8 kV
Terminals supplied
Verlängerte vorderseitige FB
Überspannungs- kategorie
IV
Position Montage
Jeder
Isolationsspannung (Ui)
800 V
Upline/downline power supply
Sì
Thermal regulation
0,4 - 0,5 - 0,63 - 0,8 - 0,9 - 0,95 - 1 x In
Electrical life (415Vac)
4.000 cycles
Magnetic regulation
Electronic LSI
Mechanical life
5.000 cycles
Neutral protection
-
Betriebstemperatur
-5°C +65°C
Total power loss
210.93 W
Lagertemperatur
-20° +65°
Rated short-circuit current making capacity (Icm)
-
Gewicht (kg)
19.8
Rated short-time withstand current for 0,3s (Icw)
15 kA
Breite
210 mm
Idn regulation
-
Höhe
370 mm
DT regulation
-
Tiefe
120 mm
SERVICE BREAKING CAPACITY (ICU)
-
RATED BREAKING CAPACITIY (ICS)
-
220/240Vac
85 kA
220/240Vac
65 kA
400/415Vac
50 kA
400/415Vac
38 kA
440Vac
45 kA
440Vac
34 kA
525Vac
30 kA
525Vac
23 kA
690Vac
20 kA
690Vac
15 kA
250Vdc
-
250Vdc
-
Ware Number
85362010
