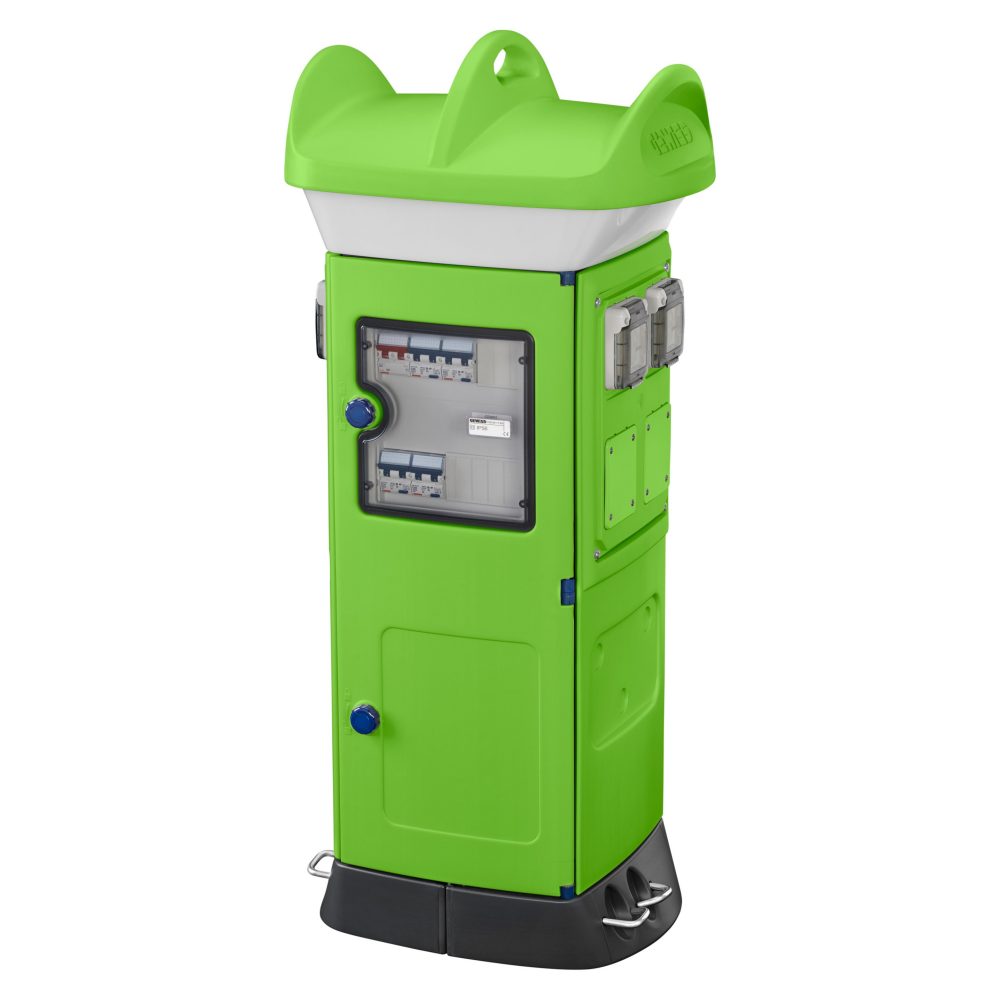

QMC63B - WIRED - DOUBLE SIDE TAKE-OFF - 4 DOMESTIC SOCKET OUTLET 16A - IP55 - GREEN
Code:
GW68855G
Range: 68 Q-MC
Pedestals for energy distribution and service in insulating material
Pedestals for energy distribution and service in insulating material
The 68 Q-MC range is an innovative energy and services distribution system made of thermoplastic, for environments such as tourist ports, campsites and public spaces (trade fairs, markets, gardens, etc.). It combines an attractive design with complete reliability over time, thanks to its resistance to chemical and atmospheric agents. The range includes both pre-wired and unwired versions, which can be configured as needed, and is available in light blue and white.
Technical Info
Information
Download
Software
Certificates
Colour
Green
German Std socket-outlet 16A
4 (2 for side)
Ware Number
85371098
EQUIPMENT AND NOTES
PROTECTIONS:
board In: 32 A. Main switch disconnector 4P 40A;
4 RCBO - MDC Range 2P 230 V 10 A C 6 kA 0.03 A - A Type for the 2P+E 230 V domestic sockets.
CHARACTERISTICS: stainless steel cable fastener devices; enclosure with hinged opening that can be fitted with security lock for access to modular devices.
Power supply terminal section: 16mm². Pedestal dimensions: 445x950x300 mm (LxHxD).
board In: 32 A. Main switch disconnector 4P 40A;
4 RCBO - MDC Range 2P 230 V 10 A C 6 kA 0.03 A - A Type for the 2P+E 230 V domestic sockets.
CHARACTERISTICS: stainless steel cable fastener devices; enclosure with hinged opening that can be fitted with security lock for access to modular devices.
Power supply terminal section: 16mm². Pedestal dimensions: 445x950x300 mm (LxHxD).
