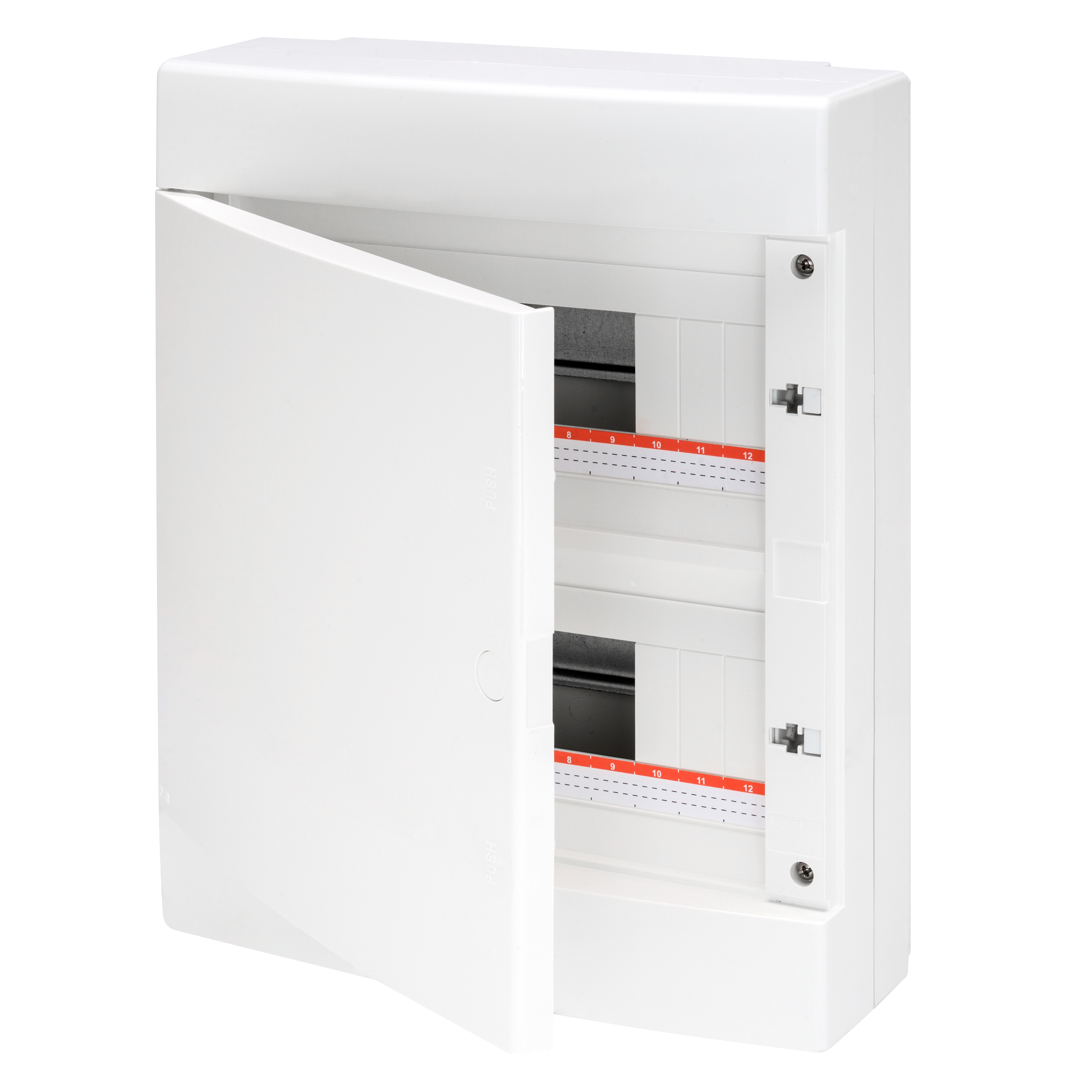

smooth walls decorative encolosure - with terminal block n (3x16)+(11x10) e (3x16)+(11x10) - blank door - (12x2) 24m ip40

SMOOTH WALLS DECORATIVE ENCOLOSURE - WITH TERMINAL BLOCK N (3X16)+(11X10) E (3X16)+(11X10) - BLANK DOOR - (12X2) 24M IP40

Code: GW40067BS

Download Technical Sheet

Range: 40 CD Range
Surface-mounting distribution boards and enclosures

The 40CD Series of control units, available in transparent or blind door versions and in sizes from 8 to 72 modules, guarantees aesthetic integration with all types of furniture. The offer includes: 40CDK - IP65 watertight panels with removable frame (from 24M) and lead-in panels; accessories with wiring ducts, locks, aesthetic covers and blind panels, 40CD - IP55 watertight control units with drilling doilies on the walls, door with lock for each modular row; 40CD control units protected by furniture - IP40 up to 72M in the smoke and blind door versions; 40CD control units without door - IP40. All materials are Halogen Free.

IP40

IK08

650 °C

70 °C

Technical Info

Information

Download

Software

Certificates

Insulation class II (according to IEC 61140 standards)

Colour White RAL 9016

Outer dim. LxHxD (mm) 280x350x100

IP degree IP40

Dispersible power (W) 25

Mechanical resistance IK08

Rated voltage 400V

Door colour Blank

Terminal blocks 80 A - IP20 bipolar holes with screws

No. of modules EN 50022 24 (12X2)

Rated current 125 A

Glow Wire Test 650 °C

Operating temperature -25 +60 °C

Type of material Halogen-free in compliance with EN 60754-2

Thermo-pressure with ball 70 °C

Accessories for insulation restoring Screwcaps (GW44623) or fixing brackets in resin (GW44621)

Standard EN 60670-1 (CEI 23-48) IEC60670-24 CEI 23-49

Insulation voltage 750 V

Pole 1 (mm²) N/E (3x16) + (11x10)

Pole 2 (mm²) N/E (3x16) + (11x10)

Ware Number 85381000

Product Data Sheet

Technical characteristics

Disposal

User guide

Go to download area Go to download area

PRICE

Estimation of electrical systems

PBT-Q

Low voltage systems and boards

CENTRAL

Quotation and Thermal test of modular enclosures

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

CADpro

Advanced design of electrical systems

PROJEX

Low voltage system design

Go to software area Go to software area

Display the certificate

CE marking

Related products

Gewiss Code

No. of modules EN 50022

Outer dim. LxHxD (mm)

Dispersible power (W)

Pole 1 (mm²)

Pole 2 (mm²)

GW40063BS

200x180x100

N/E (2x16) + (7x10)

GW40065BS

280x225x100

N/E (3x16) + (11x10)

GW40067BS

24 (12X2)

280x350x100

N/E (3x16) + (11x10)

GW40067BD

24 (12X2)

280x350x100

N/E 2x[(3x16) + (11x10)]

GW40069BS

36 (18x2)

400x400x130

N/E (3x16) + (17x10)

GW40069BD

36 (18x2)

400x400x130

N/E 2x[(3x16) + (17x10)]

GW40071BD

54 (18x3)

400x550x130

N/E 2x[(3x16) + (17x10)]

GW40073BD

72 (18x4)

400x850x150

N/E 2x[(3x16) + (17x10)]

GW40073BQ

72 (18x4)

400x850x150

N/E 4x[(3x16) + (17x10)]

Show All Show All

EQUIPMENT AND NOTES

ACCESSORIES SUPPLIED: module masks, circuit labels. Self-adhesive label to be filled out for certification according to standard CEI 23-51. GW40069BS, GW40069BD, GW40071BD, GW40073BD, GW40073BQ fitted with removable frame, to carry out the wiring operations outside the enclosure. Insulated bipolar screw 80A - IP20 terminal blocks to be installed on the frame) before wiring.
NOTES: dispersible power calculated according to CEI 23-49. For the perforations, use the GW52401 milling cutter. To restore the double insulation, use the relative accessories supplied (module masks and screwcaps or brackets for surface-mounting).
CHARACTERISTICS: thermo-pressure with ball equal to 70°C.
