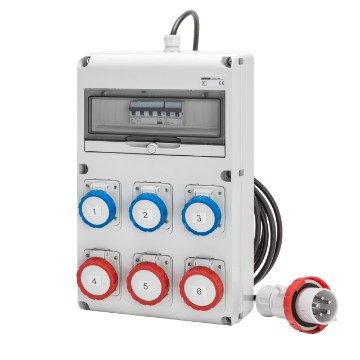

Q-DIN 14 ACS - MOBILE-PORTABLE - WITH CABLE AND PLUG - 3 2P+E 16A IEC309 + 2 3P+E 16A IEC309 + 1 3P+E 32A IEC309 - IP65

Code: GW68251N

Range: 68 ACS Range
ACS distribution board system for construction sites

The 68 ACS range is composed of an extensive selection of wired boards which are certified in accordance with the Standard EN 61439-4, and are capable of meeting all electrification requirements, from the smallest to the biggest construction sites. The boards are available in numerous configurations that differ in terms of number and type of socket-outlet, protected by MCB or fuse holder base. A selection of ready to use pre-wired or empty versions is available, and these can be personalised to suit all site needs and certified using GWENERGYpro software. The range is completed by a range of portable floodlights and luminous indicator devices.



650 °C

70 °C

Technical Info

Type Q-DIN 14 ACS
board type Wired
Outer dim. LxHxD (mm) 320x510x120
Weight (kg) 7
Accordance with Standards EN 61439-4 (ACS)
Characteristics UV resistance (EN 62208)
IP degree IP65
Mechanical resistance IK09
Glow wire test 650 °C
Thermo-pressure with ball 70 °C
Insulation class II
Power supply Mobile plug
No. of poles 3P+N+E
Power suppliable (kW) 17
Mains switch RCBO 32A 4P 6 kA 0,03A - AC type
Circuits protection MCB
No. socket outlets 6
Socket-outlet 2P+E 16A - IEC 309 3
Socket-outlet 3P+E 16A - IEC 309 2
Socket-outlet 3P+E 32A - IEC 309 1
Cable length 4 m
Electrocod 139
Ware Number 85371098

Product Data Sheet

Conformity declaration

User guide


Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - DE

Technical characteristics - ES


Advanced design of electrical systems

Show more


Plugin with GEWISS products for the software AUTOCAD®

Show more


Boards for building sites, campings-piers and distribution

Show more

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

Show more


Estimation of electrical systems

Show more

Reach Declaration

CE marking

ACCESSORIES SUPPLIED: 4 m of cable H 07 RN - F and mobile plug, insulating screw caps to mantain double insulation and original IP degree of boards.
NOTES: external dimensions (BxHxP) 320x510x120 mm.
Please refer to Gewiss web site to download the wiring diagrams of the boards..
