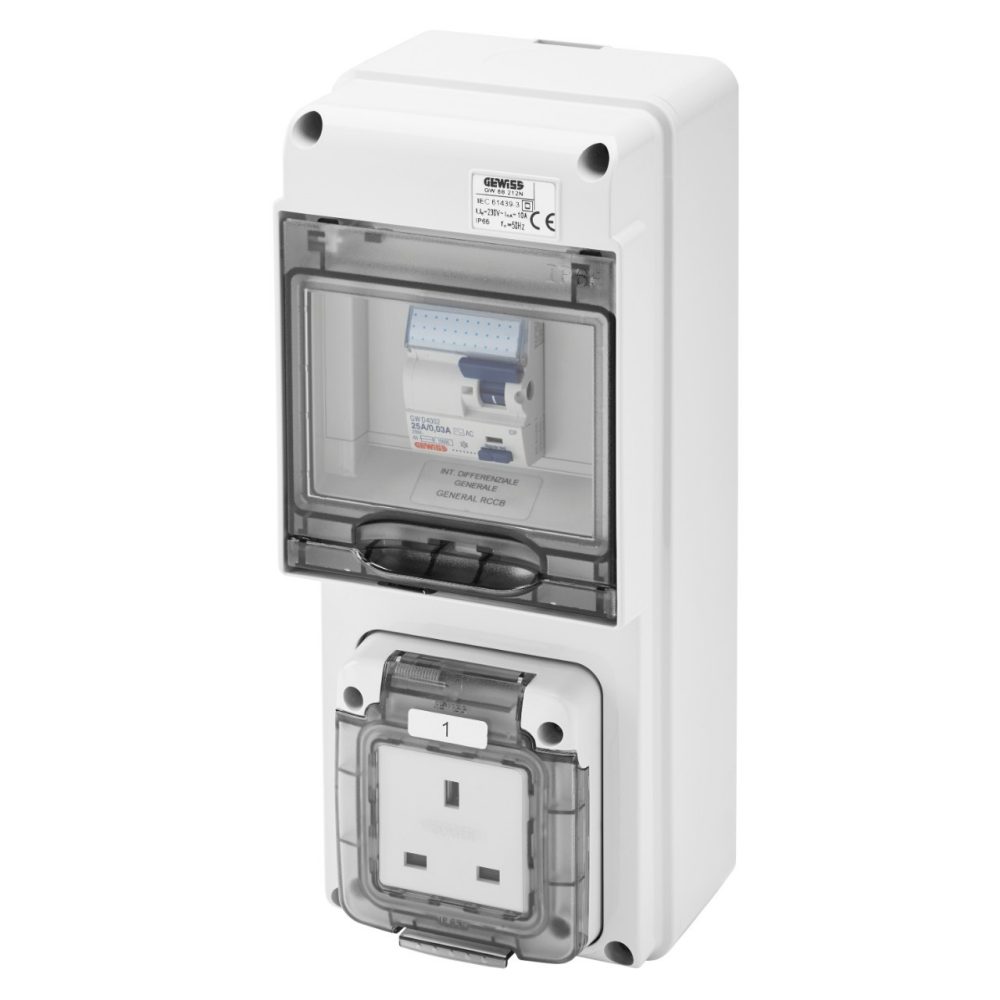

Q-DIN 5 DBO - 1 COSCKET-OUTLET ENGLISH STANDARD - IP44
Code:
GW68212N
Range: 68 Q-DIN Range
Distribution boards
Distribution boards
A complete system of IP65 boards for distributing energy in tertiary, commercial sector and building applications, available both empty and pre-wired, in accordance with the international standard IEC 61439. The Q-DIN range comprises boards from 5 to 20 DIN modules, plus supplementary modules of 14 or 20 M to add even more DIN spaces. They can accommodate flush-mounting socket-outlets and interlocked socket-outlets of up to 63 A, and they can be combined with numerous accessories.
IP44
IK09
850 °C (active parts) - 650 °C (passive parts)
70 °C
Technical Info
Information
Download
Software
Certificates
Type
Q-DIN 5 DBO
board type
Wired
Colour
Grey RAL 7035
Outer dim. LxHxD (mm)
105x260x120
Weight (kg)
1
Accordance with Standards
EN 61439-3 (DBO)
Characteristics
UV resistance (EN 62208)
IP degree
IP44
Mechanical resistance
IK09
Glow wire test
850 °C (active parts) - 650 °C (passive parts)
Thermo-pressure with ball
70 °C
Insulation class
II
Power supply
Terminal block
No. of poles
2P+E
Power suppliable (kW)
2.3
MCB’S MT main RCCB
RCCB 25A 2P 0,03A - AC type
Circuits protection
MCB
No. socket outlets
1
UK socket-outlet 13A
1
Ware Number
85371098
EQUIPMENT AND NOTES
PROTECTIONS:
GW68212N: Board In: 10A
1 RCCB - SD Range 2P 230 V 25 A 0,03 A - AC Type
GW68224N: Board In: 13A
1 RCBO - MDC Range 4P 400 V 16 A C 6 kA 0,03 A - AC Type
GW68225N: Board In: 13A
1 RCBO - MDC Range 2P 230 V 16 A C 6 kA 0,03 A - AC Type
GW68226N: Board In: 25A
1 MCB - MTC Range 2P 230 V 16 A C 6 kA
1 MCB - MTC Range 3P 400 V 16 A C 6 kA
GW68227N: Board In: 13A
1 RCBO - MDC Range 2P 230 V 16 A C 6 kA 0,03 A - AC Type
ACCESSORIES SUPPLIED: cable clamp and 2 screw caps.
GW68212N: Board In: 10A
1 RCCB - SD Range 2P 230 V 25 A 0,03 A - AC Type
GW68224N: Board In: 13A
1 RCBO - MDC Range 4P 400 V 16 A C 6 kA 0,03 A - AC Type
GW68225N: Board In: 13A
1 RCBO - MDC Range 2P 230 V 16 A C 6 kA 0,03 A - AC Type
GW68226N: Board In: 25A
1 MCB - MTC Range 2P 230 V 16 A C 6 kA
1 MCB - MTC Range 3P 400 V 16 A C 6 kA
GW68227N: Board In: 13A
1 RCBO - MDC Range 2P 230 V 16 A C 6 kA 0,03 A - AC Type
ACCESSORIES SUPPLIED: cable clamp and 2 screw caps.
