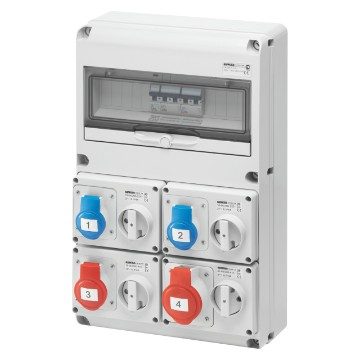

Q-DIN 14 DBO - 4 IB HORIZONTAL SBF - IP44

Code: GW68206N

Range: 68 Q-DIN Range
Distribution boards

A complete system of IP65 boards for distributing energy in tertiary, commercial sector and building applications, available both empty and pre-wired, in accordance with the international standard IEC 61439. The Q-DIN range comprises boards from 5 to 20 DIN modules, plus supplementary modules of 14 or 20 M to add even more DIN spaces. They can accommodate flush-mounting socket-outlets and interlocked socket-outlets of up to 63 A, and they can be combined with numerous accessories.

IP44

850 °C (active parts) - 650 °C (passive parts)

IK09

70 °C

Technical Info

Information
Download
Software
Certificates
Colour Grey RAL 7035
IP degree IP44
Installation type Surface-mounting
Accordance with Standards EN 61439-3 (DBO)
Glow wire test 850 °C (active parts) - 650 °C (passive parts)
Mechanical resistance IK09
Operating temperature -25 +40 °C
Thermo-pressure with ball 70 °C
Insulation class II
Characteristics UV resistance (EN 62208)
Version Wired
Ware Number 85371098

Product Data Sheet

User guide

Schema elettrico

Conformity declaration

Disposal

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - DE

Technical characteristics - ES

CADpro

Advanced design of electrical systems

Show more

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

Show more

ENERGYpro

Boards for building sites, campings-piers and distribution

Show more

PRICE

Estimation of electrical systems

Show more

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Show more

Reach Declaration

CE marking

EQUIPMENT AND NOTES
Board In: 50A
PROTECTIONS: Board with horizontal interlocked switched socket-outlets 44 IB
1 MCB - MTC Range 2P 230 V 16 A C 6 kA
1 MCB - MTC Range 3P 400 V 16 A C 6 kA
1 MCB - MTC Range 3P 400 V 32 A C 6 kA
ACCESSORIES SUPPLIED: cable clamp and 4 screw caps.
