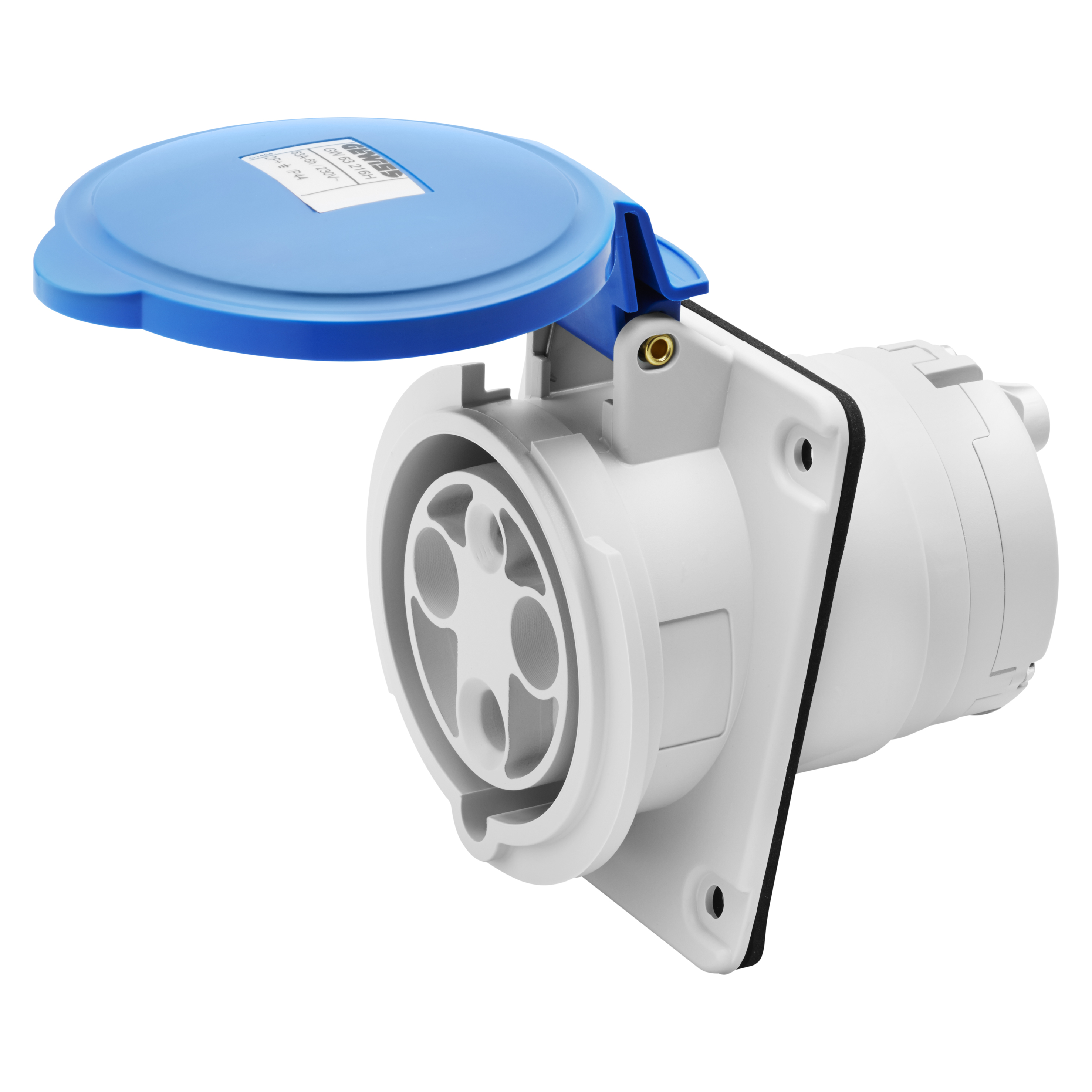

10° ANGLED FLUSH-MOUNTING SOCKET-OUTLET HP - IP44/IP54 - 3P+N+E 63A 200-250V 50/60HZ - BLUE - 9H - MANTLE TERMINAL
Code:
GW63218H
Range: IEC 309 HP range
Plugs and socket-outlets IEC 309 Standard
Plugs and socket-outlets IEC 309 Standard
The IEC 309 HP system comprises plugs and socket-outlets from 16 to 125 A in two different versions – straight mobile and 10° flush-mounting – which have IP44/IP54 and IP66/IP67/IP68/IP69 degrees of protection (IP68/IP69 only available for straight versions). The introduction of all the hours references for the earthing contact completes the range for specific applications and installations. The 16-32 A versions are available with screw wiring or fast wiring with spring terminals, while the 63-125A versions propose indirect wiring with mantle terminals.
IP44/IP54
IK09
850 °C (active parts) - 650 °C (passive parts)
125 °C (active parts) - 80 °C (passive parts)
Technical Info
Information
Download
Software
Video
Certificates
Colour
Blue
Rated current (A)
63
IP degree
IP44/IP54
No. of poles
3P+N+E
Mechanical resistance
IK09
Reference h
9
Flange dimensions (mm)
110x100
Type
10° angled flush-mounting socket-outlet
Rated voltage
200 - 250 V
Frequency
50/60 Hz
Terminal tightening capacity
6-16mm² flexible cables - 6-25mm² rigid cables
Operating temperature
-25 +55 °C
Type of wiring
Mantle terminal
Type of material
Halogen-free in compliance with EN 60754-2
Electrocod
2210
Glow wire test
850 °C (active parts) - 650 °C (passive parts)
Total number of operations
> 2000
Breaking capacity at 1.1 Un
79 A
Insulation resistance
> 10 MΩ
Thermo-pressure with ball
125 °C (active parts) - 80 °C (passive parts)
Ware Number
85366990
EQUIPMENT AND NOTES
NOTES: all products are packaged individually.
Halogen free in accordance with Standard EN 60754-2.
CHARACTERISTICS: connection technology with mantle terminals. nickel-plated contacts.
All the versions are available with a pilot contact upon request.
Halogen free in accordance with Standard EN 60754-2.
CHARACTERISTICS: connection technology with mantle terminals. nickel-plated contacts.
All the versions are available with a pilot contact upon request.
