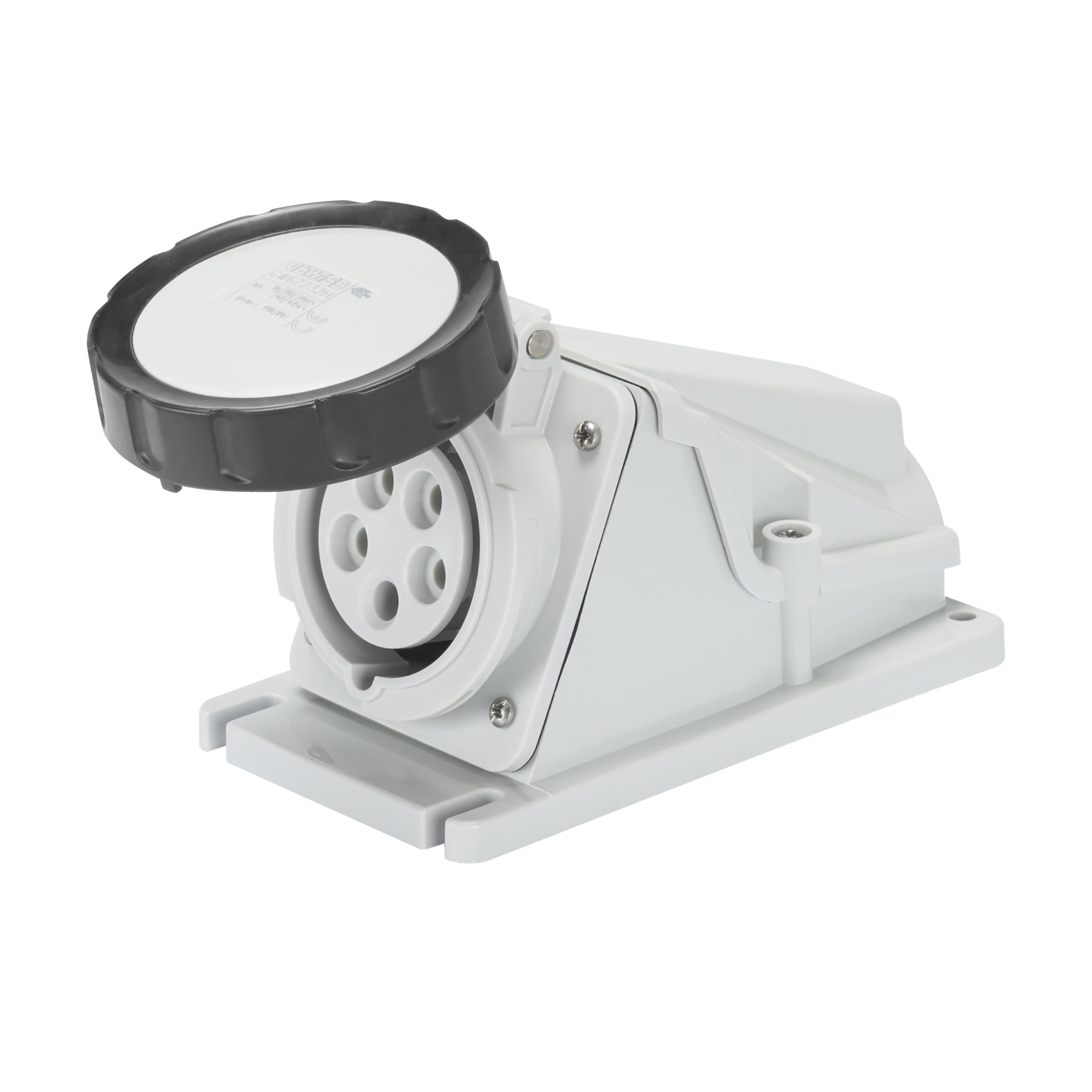

90° ANGLED SURFACE-MOUNTING SOCKET-OUTLET - IP67 - 3P+E 32A 480-500V 50/60HZ - BLACK - 7H - SCREW WIRING
Code:
GW62517
Range: IEC 309 HP range
Plugs and socket-outlets IEC 309 Standard
Plugs and socket-outlets IEC 309 Standard
The IEC 309 HP system comprises plugs and socket-outlets from 16 to 125 A in two different versions – straight mobile and 10° flush-mounting – which have IP44/IP54 and IP66/IP67/IP68/IP69 degrees of protection (IP68/IP69 only available for straight versions). The introduction of all the hours references for the earthing contact completes the range for specific applications and installations. The 16-32 A versions are available with screw wiring or fast wiring with spring terminals, while the 63-125A versions propose indirect wiring with mantle terminals.
IP67
IK08
850 °C (active parts) - 650 °C (passive parts)
125 °C (active parts) - 80 °C (passive parts)
Technical Info
Information
Download
Software
Video
Certificates
Related products
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Frequency
Reference h
EQUIPMENT AND NOTES
CHARACTERISTICS: PG21 cable gland.
NOTE: all products are packaged individually.
NOTE: all products are packaged individually.
