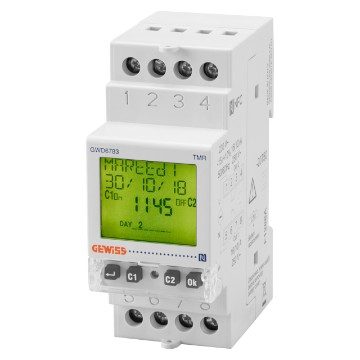

WEEKLY TIME SWITCH - CHARGE RESERVE 5 YEARS - 2 CHANGEOVER CONTACTS - 2 MODULES

Code: GWD6783

Range: 90 AM Range
Modular accessories

The 90 AM range, in addition to auxiliaries common for the all circuit breakers, comprises many modular accessories for the protection, command, programming, measurement and signalling in electrical systems.

Technical Info

Information

Download

Software

Certificates

Type of contacts 2 Changeover

Contact rating 16 A

Rated voltage (V) 230V ac

Charge reserve 5 years

No. of modules EN 50022 2

Ware Number 91070000

Technical characteristics - EN

Smaltimento

Manuale istruzioni (DE)

Manuale istruzioni (IT)

Manuale istruzioni (EN)

Manuale istruzioni (FR)

Manuale istruzioni (ES)

Depliant - IT

Go to download area Go to download area

TIMERON

APP for programming 90 TMR time switches

PRICE

Estimation of electrical systems

ENERGYpro

Boards for building sites, campings-piers and distribution

PROJEX

Low voltage system design

PBT-Q

Low voltage systems and boards

CADpro

Advanced design of electrical systems

Go to software area Go to software area

CE marking

EQUIPMENT AND NOTES

APPLICATIONS: command and management of electrical loads according to weekly programming; particularly useful for timing control of functions (for example: ventilation, lighting, heating, irrigation), comfort optimization and energy saving.
NOTE: maximum number of programs that can be stored: 120.
CHARACTERISTICS: The NFC interface allows the connection with smartphone and tablet to transfer the programs set on the time swtich by means of the specific APP. Particularly with free of charge Gewiss TimerOn APP you can:
- create programs directly on your smartphone and tablet
- transfer programs created on several time switches
- copy and paste programs among several time switches
- switch channels manually
- obtain settings (date, time, coordinates) automatically and transfer them to the time switch
