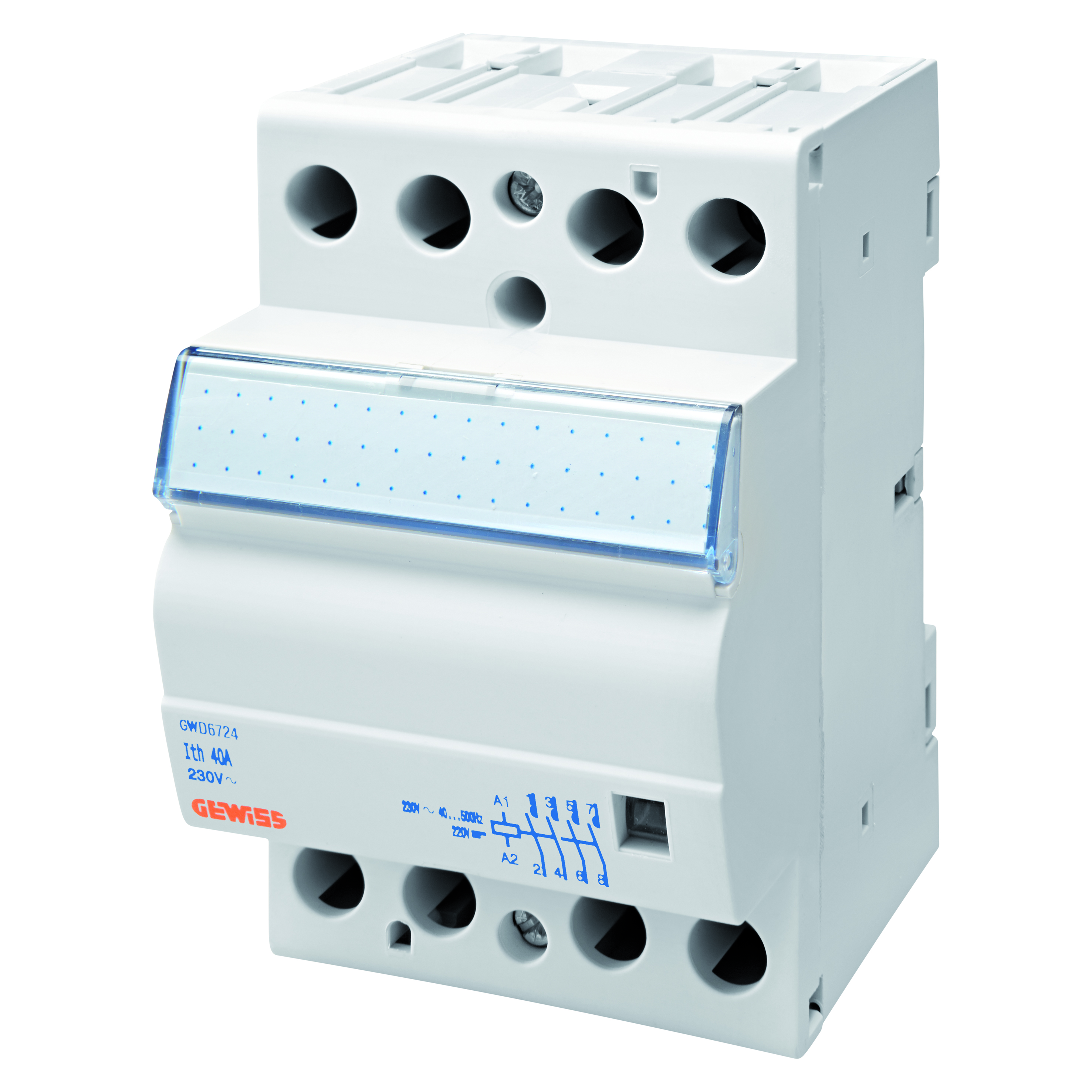

 CONTACTOR CTR - 40A 4NO 230V - 3 MODULES

CONTACTOR CTR - 40A 4NO 230V - 3 MODULES

Code: GWD6724
Range: 90 AM Range
Modular accessories
The 90 AM range, in addition to auxiliaries common for the all circuit breakers, comprises many modular accessories for the protection, command, programming, measurement and signalling in electrical systems.

Technical Info

Information
Download
Software
Certificates
Rated current (AC-1/AC-7a) 40 A - CTR40
Contacts 4NO
Control coil voltage (V) 230 ac - 220 dc
No. of modules EN 50022 3
Ware Number 85364900

CENTRAL

Quotation and Thermal test of modular enclosures

Show more

PROJEX

Low voltage system design

Show more

PBT-Q

Low voltage systems and boards

Show more

ENERGYpro

Boards for building sites, campings-piers and distribution

Show more

PRICE

Estimation of electrical systems

Show more

CADpro

Advanced design of electrical systems

Show more

CE marking

Conformity declaration

REACH information

Related products

Gewiss Code
Rated current (AC-1/AC-7a)
Contacts
Control coil voltage (V)
No. of modules EN 50022

GWD6701

20 A - CTR20

1NA

230 ac

1

GWD6702

20 A - CTR20

2NO

24 ac

1

GWD6703

20 A - CTR20

2NO

230 ac

1

GWD6705

20 A - CTR20

2NC

230 ac

1

GWD6706

20 A - CTR20

1NA+1NC

24 ac

1

GWD6707

20 A - CTR20

1NA+1NC

230 ac

1

GWD6708

20 A - CTR20

3NO

230 ac

2

GWD6709

20 A - CTR20

4NO

230 ac

2

GWD6711

25 A - CTR25

2NO

24 ac/dc

2

GWD6712

25 A - CTR25

2NO

230 ac - 220 dc

2

EQUIPMENT AND NOTES
APPLICATIONS: they are used for automatic control of electrical devices with high number of operations. The switching of contacts happens when the coil is both energized and de-energized. For other applications than AC-1/AC-7a utilization category, please consult the technical pages.
CHARACTERISTICS: they can be combined with auxiliary contacts and sealing terminal covers.
NOTE: it's suggested the use of a spacer insert between adjacent contactors to ensure optimum operation.
