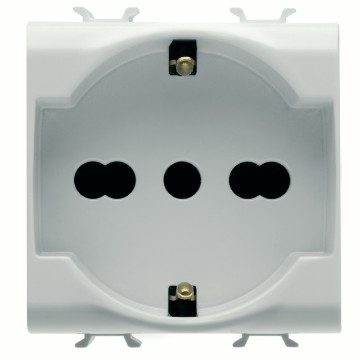

ITALIAN/GERMAN STANDARD SOCKET-OUTLET 250V ac - 2P+E 16A DUAL AMPERAGE - 2 MODULES - GLOSSY WHITE - CHORUSMART
Code:
GW10204
Range: 90 AM Range
Modular accessories
Modular accessories
The 90 AM range, in addition to auxiliaries common for the all circuit breakers, comprises many modular accessories for the protection, command, programming, measurement and signalling in electrical systems.
125 °C
850 °C
Technical Info
Information
Download
Software
Certificates
Category
Dual amperage socket-outlet
Description
2P+E - 16 A Dual amperage
Colour
Glossy white
Voltage
250 V ac
Earth pit
Side and central
Standard
Italian / German
Characteristics
Con schermi di sicurezza
For plug pins
Ø 4 / 4.8 / 5 mm
Wiring terminals
With screw
Socket-out type
P40
Standard
CEI 23-50 / IEC 60884-1
Resistance at test voltage
2000 V at 50 Hz for 1 minute
Insulation resistance
> 5 MOhm
Prolonged operation socket (no.of position changes)
10.000 at In 250 V ac cosφ=0,8
Thermo-pressure with ball
125 °C
Glow Wire Test
850 °C
Terminal grip on cable traction
> 50 N
Terminal tightening capacity stranded cables (mm²)
min. 0,75 - max. 2x4
Terminal tightening capacity solid cables (mm²)
min. 0,5 - max. 2x2,5
No. modules
2
Electrocod
0131
Material
Technopolymer
Ware Number
85366990
EQUIPMENT AND NOTES
CHARACTERISTICS: with safety shields.
