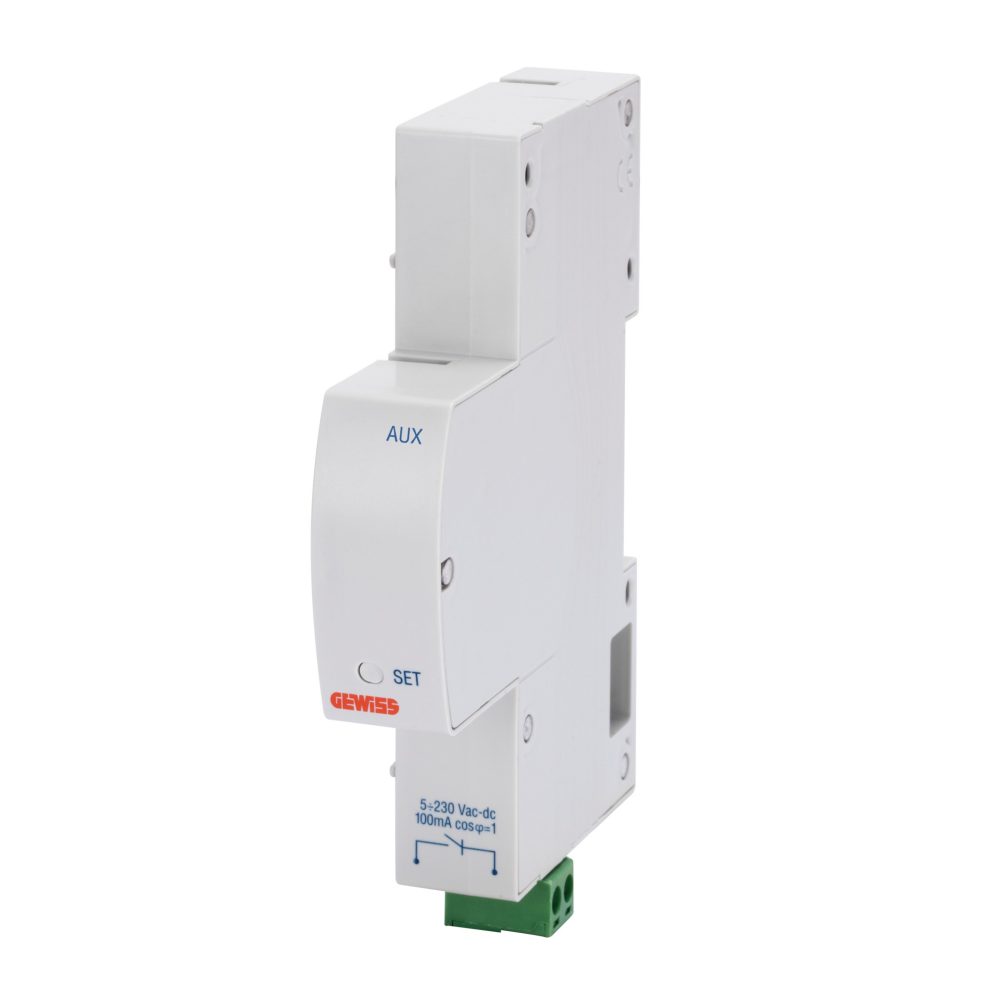

AUXILIARY CONTACT - FOR RESTART RD/RM PRO 2P - 1 MODULE EN 50022
Code:
GWD0951
Range: 90 ReStart Range
Automatic reclosing devices
Automatic reclosing devices
In the event the switch trips, the ReStart devices, after checking the system status, restore the power supply thereby ensuring maximum continuity of service in complete safety. Available for both residual current circuit breakers and residual current circuit breakers with overcurrent protection, the range is characterized by the Autotest functions, with periodic and automatic control of the residual current protection without interrupting the power supply and PRO with extended control of the system.
Technical Info
Information
Download
Software
Certificates
Suitable for
ReStart RD PRO 2P (GWD0976 and GWD0978)/ReStart Rm PRO 2P (GWD0996 and GWD0998)
Voltage operating
5-230 V ac/dc
Current operating
0,6-100 mA ac/dc
No. of modules EN 50022
1
Ware Number
85389099
EQUIPMENT AND NOTES
CHARACTERISTICS: the auxiliary contact, coupled on the right side of ReStart device, will change state to indicate that the automatic reset did not take place because there is a fault in the electrical system.
The auxiliary contact can be set in three operating modes:
- NO (default condition)
- NC
- NO as signal of handle position
NOTE: the auxiliary contacts is free potential type.
The auxiliary contact can be set in three operating modes:
- NO (default condition)
- NC
- NO as signal of handle position
NOTE: the auxiliary contacts is free potential type.
