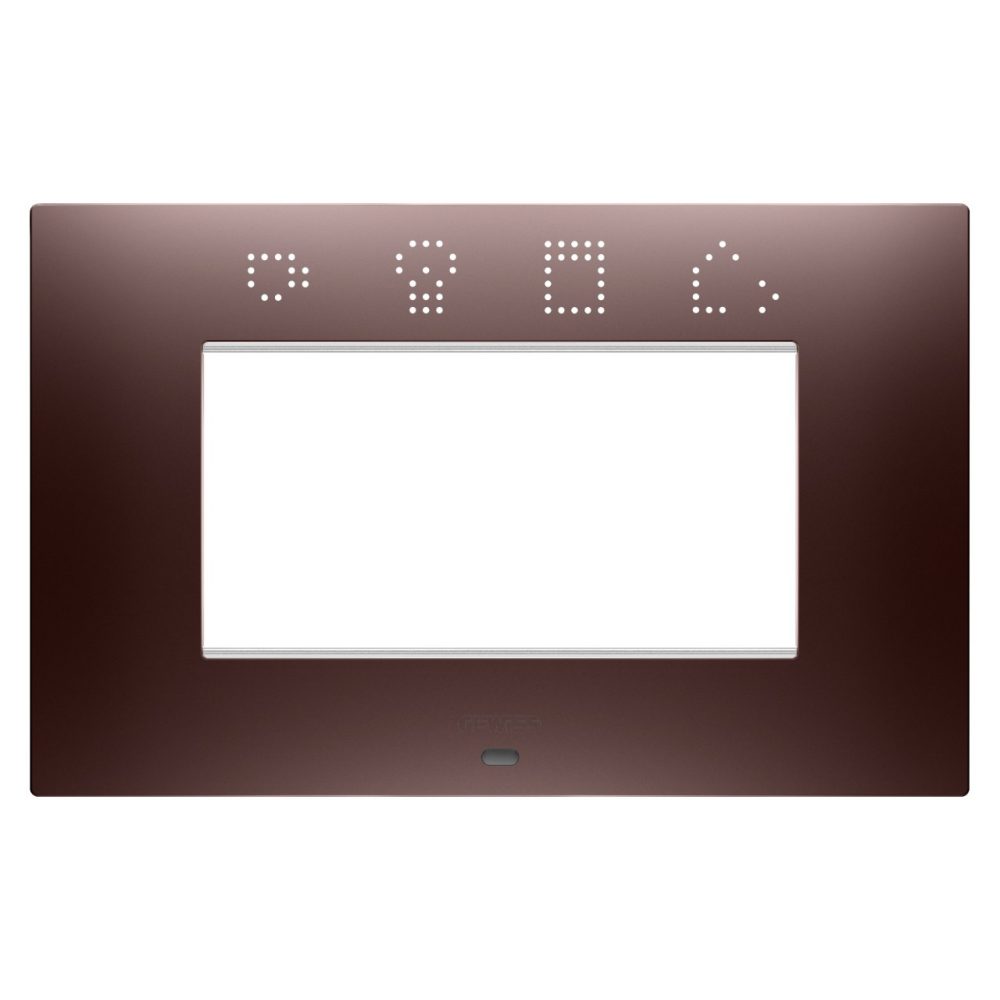

EGO SMART PLATE - IN PAINTED TECHNOPOLYMER - 4 MODULES - COPPER - CHORUSMART

Code: GW16004SCP

Range: CHORUSMART - Domestic range
EGO SMART plates

The EGO SMART plates go beyond pure aesthetics to become an element of interaction with the user and with other ChoruSmart system connected devices. Through RGB LED edge strips and a graphic display, the plates communicate operating statuses and alarms detected by other smart functions controlling your home. The EGO SMART and EGO plates, with their harmonious aesthetics, can be installed within the same system for a seamlessly designed look throughout the interior environment.

IP20

650 °C

70 °C

Technical Info

Information
Download
Software
Certificates
Colour Copper
Description 4 modules
For support codes GW16804N
Power supply Via one of the suitable connected devices installed within it or via dedicated power supply unit GWA1700
Standard 2014/35/EU, 2014/30/EU, 2011/65/EU + 2015/863, EN 62368-1, EN 55032, EN 55035, EN IEC 63000
Working temperature -5 ÷ +45 °C
Relative humidity (non-condensative) Max 93%
IP degree IP20
Functions System information/status with messages on the display and notifications by RGB LED strips.
Material Painted technopolymer
Finishing Opaque finish
Glow wire test 650 °C
Thermo-pressure with ball 70 °C
Family EGO SMART
User interface The plate is equipped with a dot-matrix display and RGB LED strips
Ware Number 85389099

Product Data Sheet

User guide

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - ES

CADpro

Advanced design of electrical systems

Show more

HOME

Configuration of the home electrical system

Show more

PRICE

Estimation of electrical systems

Show more

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Show more

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

Show more

Conformity declaration

CE marking

EQUIPMENT AND NOTES
CHARACTERISTICS: matt finish, metallic effect. The plate has a dot-matrix display on the upper portion, RGB LED strips (along the outer and inner edges at the top and bottom) and a proximity sensor.
APPLICATIONS: visualisation of dynamic icons on the display indicating the functions associated with the devices installed in the plate; event/alarm signalling using the display (messages) and/or RGB led strips.
NOTES: the plate must be supplied with power by one of the following Smart devices, which must be installed in the same box as the plate: GWA1201, GWA1202, GWA1231, GWA1232, GWA1241, GWA1242 or GW1x826, or by a dedicated GWA1700 power supply; the connection cable from the plate to the device powering it is included in the plate package.
Codes not held as stock, for delivery times contact your local representative.
