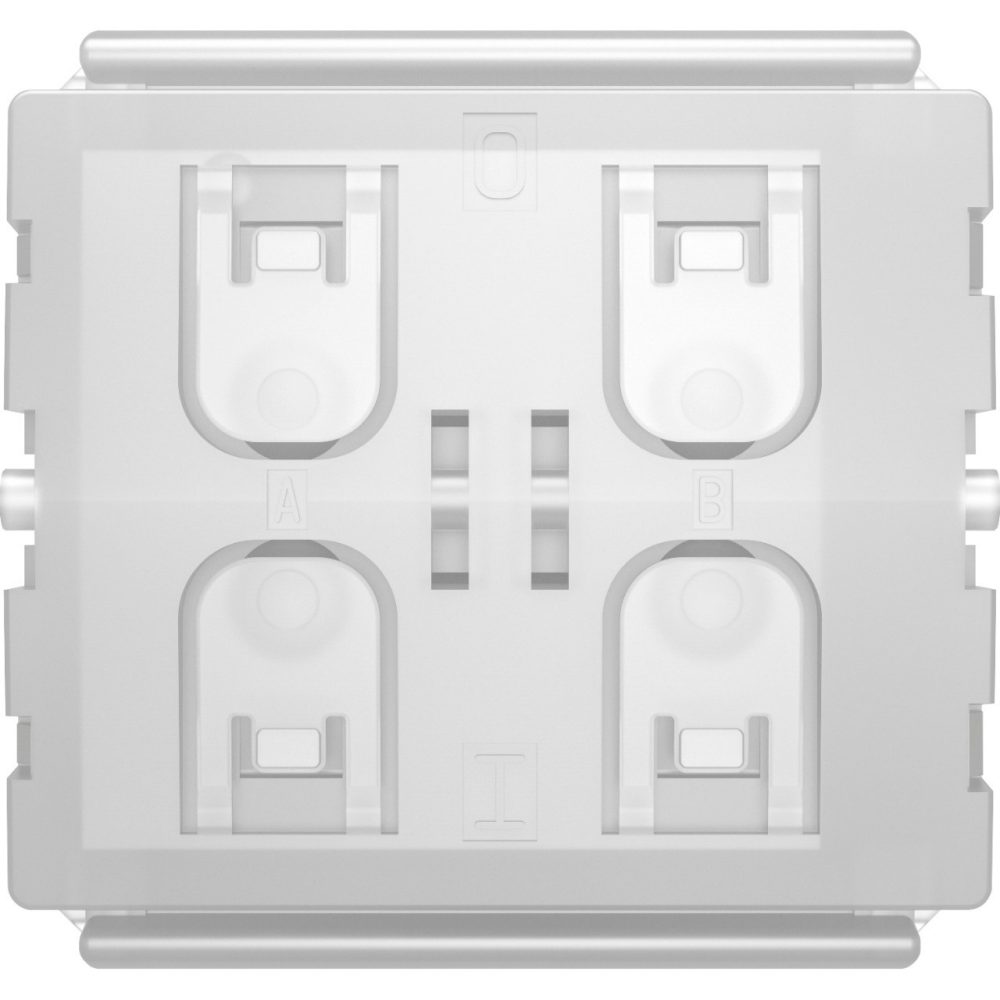

CONNECTED ECO MODULE WITH 4 COMMANDS - ZIGBEE - WALL AND FLUSH NOUNTING - CHORUSMART
Code:
GWA1291
Range: Connected SMART HOME
Connected Smart Home system
Connected Smart Home system
The connected system, based on the Zigbee wireless protocol, offers a full range of solutions for smart homes and small offices that are suitable for both new buildings and renovations.
It enables you to control safety, comfort and consumption, through a unique user experience, using the Home Gateway APP and EGO Smart plates. The system integrates with the Google Home IoT platforms, Amazon Alexa and IFTTT, and all functions can be controlled with Google and Alexa voice assistants.
It enables you to control safety, comfort and consumption, through a unique user experience, using the Home Gateway APP and EGO Smart plates. The system integrates with the Google Home IoT platforms, Amazon Alexa and IFTTT, and all functions can be controlled with Google and Alexa voice assistants.
IP20
Technical Info
Information
Download
Software
Video
Certificates
Power supply
None
No. of channels
4
No. modules
2
Radio connections
Zigbee (IEEE 802.15.4)
Standard
2014/35/EU, 2014/30/EU, 2014/53/EU, 2011/65/EU, EN 62368-1, EN 303 446-1, EN 301 489-1, EN 301 489-17, EN 55032, EN 55035, EN 300 328, EN 62479
Working temperature
-5 ÷ +45 °C
Relative humidity (non-condensative)
Max 93%
Power output Zigbee
7 dBm
Category
4-channel push-button control panel
IP degree
IP20
Local control
Via 4 front push buttons (to complete with button key)
Installation
Flush- or wall-mounting
Ware Number
85389099
EQUIPMENT AND NOTES
CHARACTERISTICS: device for sending 4 independent Zigbee commands via activation by the local 4 push buttons.
The device can be installed both flush (ChoruSmart supports) and surface mounted. For surface mounted installation, it can be completed with ONE, GEO, LUX, ICE and EGO plates in both the 2-gang rectangular version and the international 2-gang version.
The device does not require power (neither from the mains nor from batteries).
APPLICATIONS: sending 4 Zigbee commands (on/off command and lamp dimming, roller-shutter control, generic load command, scenarios) using local buttons.
NOTES: The push-button panel must be completed with front buttons: with 2 push button keys GW1x819 of 1 module or 1 push button key GW1x820 of 2 modules.
The device cannot be used to control actuators: GWA1521, GWA1522, GWA1523, GWA1526, GWA1531 and the local relay of GWA1916.
ACCESSORIES SUPPLIED: base and fitting KIT (screws, wall-plugs and bi-adhesive strips) for surface mounting, adapter for flush mounting on ChoruSmart supports.
The device can be installed both flush (ChoruSmart supports) and surface mounted. For surface mounted installation, it can be completed with ONE, GEO, LUX, ICE and EGO plates in both the 2-gang rectangular version and the international 2-gang version.
The device does not require power (neither from the mains nor from batteries).
APPLICATIONS: sending 4 Zigbee commands (on/off command and lamp dimming, roller-shutter control, generic load command, scenarios) using local buttons.
NOTES: The push-button panel must be completed with front buttons: with 2 push button keys GW1x819 of 1 module or 1 push button key GW1x820 of 2 modules.
The device cannot be used to control actuators: GWA1521, GWA1522, GWA1523, GWA1526, GWA1531 and the local relay of GWA1916.
ACCESSORIES SUPPLIED: base and fitting KIT (screws, wall-plugs and bi-adhesive strips) for surface mounting, adapter for flush mounting on ChoruSmart supports.
