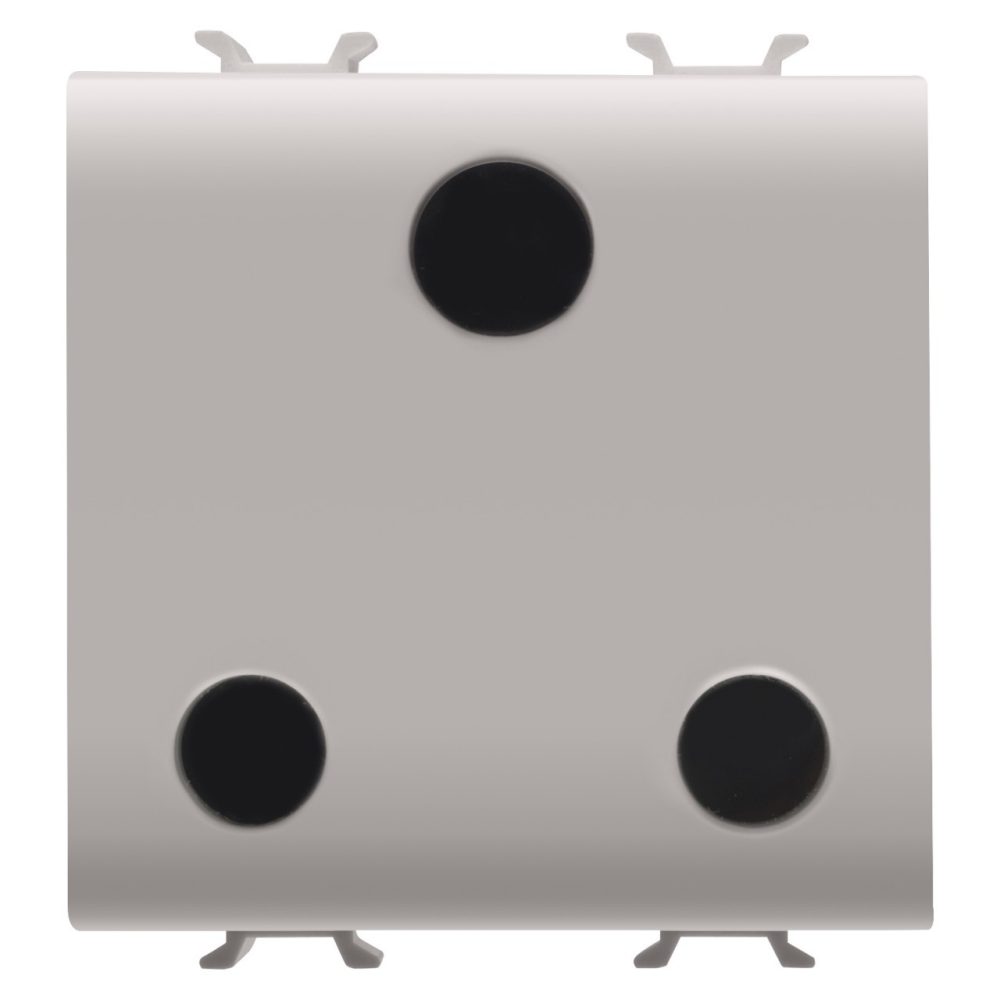

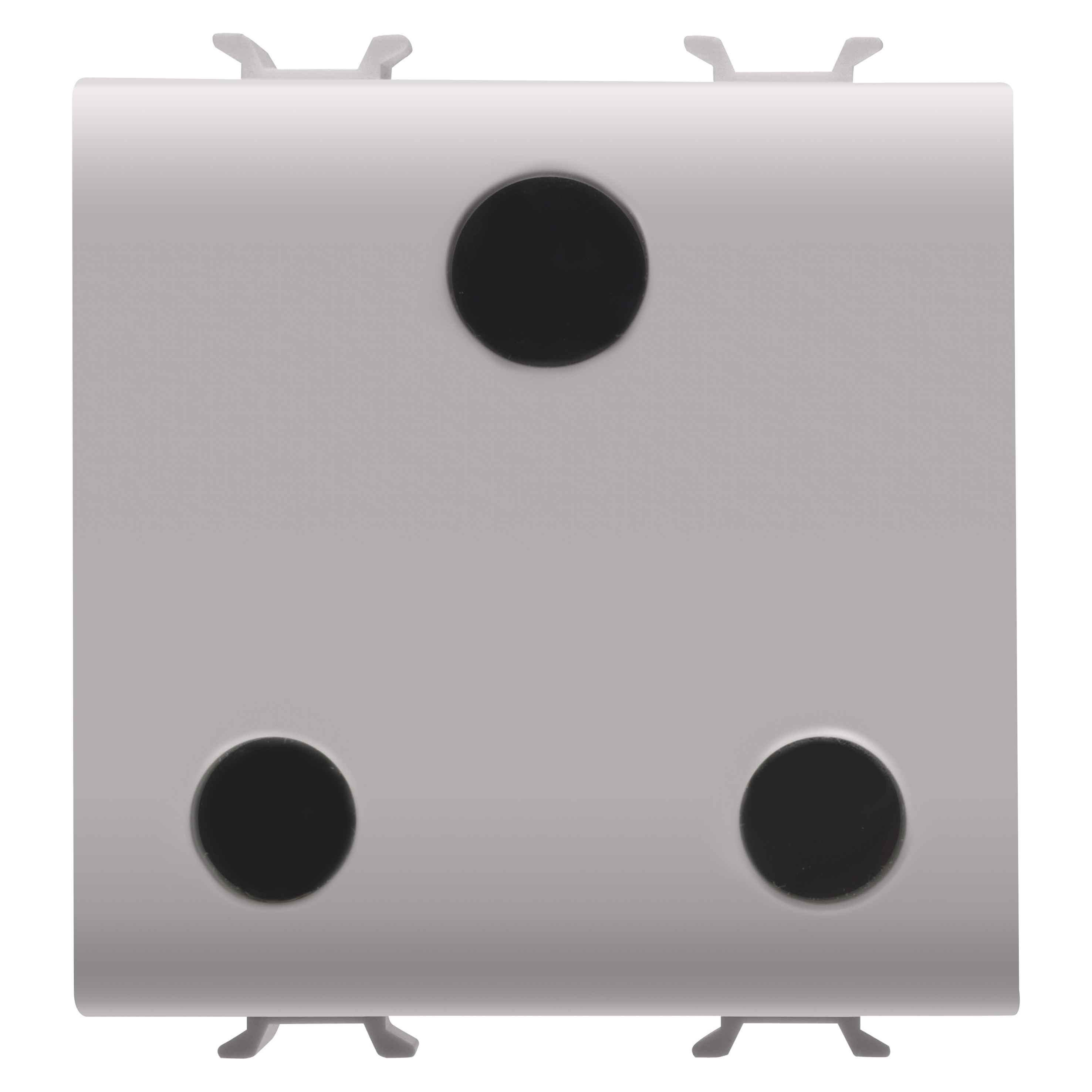

BRITISH STANDARD SOCKET-OUTLET 250V ac - 2P+E 15A - 2 GANG - NATURAL SATIN BEIGE - CHORUSMART

Code: GW13297

Range: CHORUSMART - domestic range
Satin natural beige modular devices

The ChoruSmart modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements.
Colors and finishes: natural satin beige, warm and enveloping. Unlimited functions in reduced spaces: the ChoruSmart range consists of rocker button keys with ½, 1 and 2 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs.
Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.

125 °C

850 °C

Technical Info

Information
Download
Software
Certificates
Category Socket-outlet
Description 2P+E - 15A
Colour Natural satin beige
Voltage 250 V ac
Standard British
Characteristics With safety shields
For plug pins Ø 7 mm
Wiring terminals With screw
Standard IEC 60884-1
Resistance at test voltage 2000 V at 50 Hz for 1 minute
Insulation resistance > 5 MOhm
Prolonged operation socket (no.of position changes) 10.000 at In 250 V ac cosφ=0,8
Thermo-pressure with ball 125 °C
Glow Wire Test 850 °C
Terminal grip on cable traction > 50 N
Terminal tightening capacity
stranded cables (mm²)
min. 0,75 - max. 2x4
Terminal tightening capacity
solid cables (mm²)
min. 0,5 - max. 2x2,5
No. modules 2
Electrocod 0131
Material Technopolymer
Ware Number 85366990

Product Data Sheet

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - ES

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

Show more

HOME

Configuration of the home electrical system

Show more

PRICE

Estimation of electrical systems

Show more

CADpro

Advanced design of electrical systems

Show more

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Show more

Conformity declaration

CE marking

EQUIPMENT AND NOTES
CHARACTERISTICS: with safety shields.
NOTES: given the size of the plugs, it is not possible to install two or more socket-outlets side-by-side.
