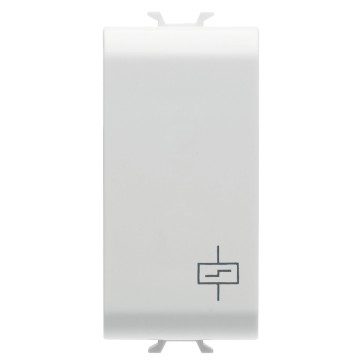

LATCHING RELAY 230V ac 50/60Hz - 1P 10AX 250V ac - 1 MODULE - SATIN WHITE - CHORUSMART
Code:
GW15721
Range: CHORUSMART - Domestic range
Satin white modular devices
The CHORUSMART modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements.
Colours and finishes: satin white, distinctive and elegant.
Unlimited functions in reduced spaces: the ChoruSmart range consists of rocker button keys with ½, 1, 2 and 3 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs.
Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.
Colours and finishes: satin white, distinctive and elegant.
Unlimited functions in reduced spaces: the ChoruSmart range consists of rocker button keys with ½, 1, 2 and 3 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs.
Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.
125 °C
850 °C
Technical Info
Information
Download
Software
Certificates
Category
Relay
Output contacts
10 AX 250V ac
Type
Latching relay
Colour
Satin White
Description
Latching relay
No. of poles
1P
Voltage
230V ac
Standard
EN 60669-1 / EN 60669-2-2
Frequency
50/60 Hz
Resistance at test voltage
2000 V at 50 Hz for 1 minute
Insulation resistance
> 5 MOhm
Wiring terminals
With screw
Prolonged operation switch (no.of position changes)
40.000 at In 250 V ac cosφ=0,6
Thermo-pressure with ball
125 °C
Glow Wire Test
850 °C
Terminal grip on cable traction
> 50 N
Terminal tightening capacity
stranded cables (mm²) 1x4 / 2x2,5
stranded cables (mm²) 1x4 / 2x2,5
Terminal tightening capacity
solid cables (mm²) 2x2,5
solid cables (mm²) 2x2,5
No. modules
1
230V incandescent-halogen lamps
1000 W
Fluorescent lamps with electronic ballast
400 W
Fluorescent lamps with compensated ballast
360 W
CFL lamps
200 W
230V LED lamps
200 W
Halogen/LED lamps with electronic transformer
200 W
Halogen/LED lamps with electromechanical transformer
400 W
Material
Technopolymer
Electrocod
140
Ware Number
85364900
EQUIPMENT AND NOTES
CHARACTERISTICS: GW15721, GW15723 suitable for commanding incandescent/halogen lamps: 1000 W, fluorescent tubes with electronic ballast: 400 W, fluorescent tubes with electromechanical ballast: 360 W, compact fluorescent lamps (CFL): 200 W, LED lamps (230V ac): 200 W, low voltage halogen or LED lamps with electronic ballast: 200 W, low voltage halogen or LED lamps with electromechanical ballast: 400 W.
APPLICATIONS: GW15721,GW15723 command of lighting devices from more than one point, by means of remote NO push-buttons.
GW15721 motor function/stop commands (extractors, air agitators, etc.).
GW15724 as an auxiliary element for commanding special loads, for distance signalling, for electrical separation between the command and use circuits.
APPLICATIONS: GW15721,GW15723 command of lighting devices from more than one point, by means of remote NO push-buttons.
GW15721 motor function/stop commands (extractors, air agitators, etc.).
GW15724 as an auxiliary element for commanding special loads, for distance signalling, for electrical separation between the command and use circuits.
