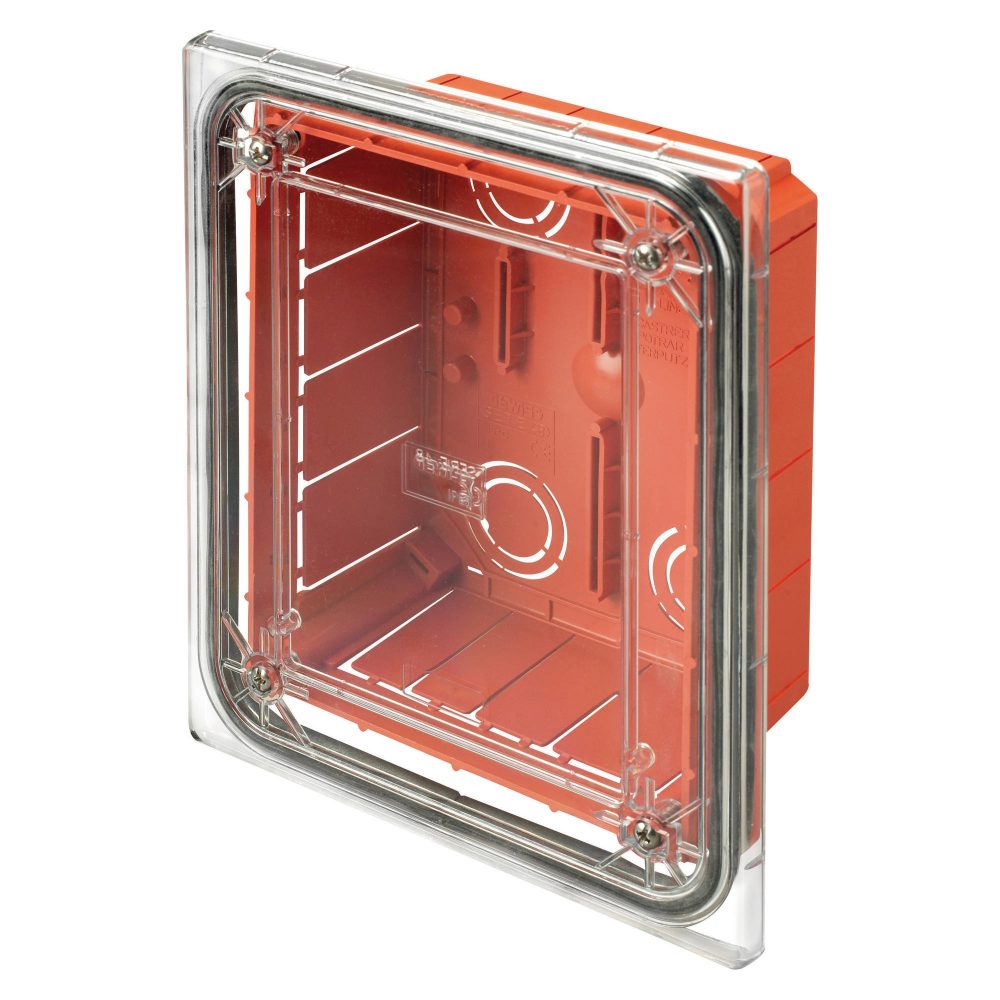

MODULAR JUNCTION AND CONNECTION BOX - FLUSH-MOUNTING - WATERTIGHT - DIMENSIONS 138X169X70 - WITH TRANSPARENT SHOCKPROOF LID - IP55
Code:
GW48691
Range: 48 Range
Flush-mounting junction and modular boxes range
Flush-mounting junction and modular boxes range
The system is composed of three ranges: 48 PT / 48 PT DIN Range with moulded DIN rail, compliant to CEI 23-48, suitable to install also H&B devices; 48 CM Range composed of high-capacity junction boxes, suitable to create distribution columns; 48 PTC Range composed of modular junction, control and distribution boxes. All boxes are made with Halogen Free technopolymer.
Technical Info
Information
Download
Software
Certificates
Outer dim. LxHxD (mm)
138x169x70
Compartment pre-arrangement
1
Ware Number
85381000
EQUIPMENT AND NOTES
ACCESSORIES SUPPLIED: self-adhesive symbol discs for the identification of circuits, kit of Ø 4x32mm stainless steel self-tapping screws, hinge for constrained lid opening.
Mortar guard element in cardboard supplied as standard in the packs and packed with paper banding.
CHARACTERISTICS: pre-arrangement for combined coupling (both horizontal and vertical) via the feedthrough coupling device GW48026.
Mortar guard element assembled by pressing on the base opening.
NOTES: for the inputs, remove the knockouts after cutting the relative tangs with scissors.
The IP55 degree of protection is guaranteed with the lid closed and with installations on waterproof walls made of tiles or similar materials, without joints.
APPLICATIONS: ideal for medical room applications where the earthing point must be inspectable.
Mortar guard element in cardboard supplied as standard in the packs and packed with paper banding.
CHARACTERISTICS: pre-arrangement for combined coupling (both horizontal and vertical) via the feedthrough coupling device GW48026.
Mortar guard element assembled by pressing on the base opening.
NOTES: for the inputs, remove the knockouts after cutting the relative tangs with scissors.
The IP55 degree of protection is guaranteed with the lid closed and with installations on waterproof walls made of tiles or similar materials, without joints.
APPLICATIONS: ideal for medical room applications where the earthing point must be inspectable.
