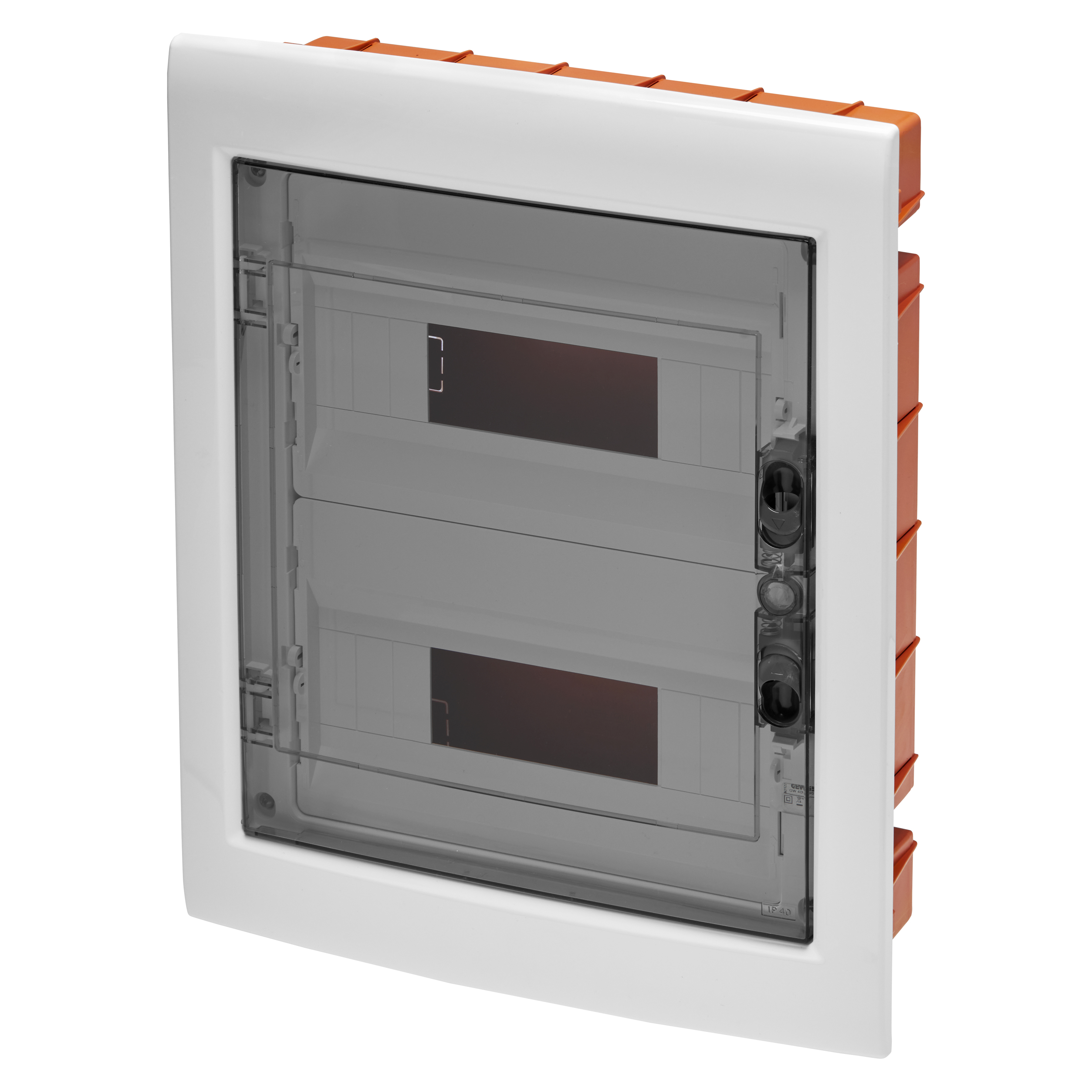

distribution board - panel with window and extractable frame - smoked door - terminal block n (3x16)+(11x10) e (3x16)+(11x10) - (12x2) 24m-ip40

DISTRIBUTION BOARD - PANEL WITH WINDOW AND EXTRACTABLE FRAME - SMOKED DOOR - TERMINAL BLOCK N (3X16)+(11X10) E (3X16)+(11X10) - (12X2) 24M-IP40

Code: GW40606BS

Download Technical Sheet

Range: 40 CDI Range
Flush-mounting distribution boards and enclosures

The widest offer of flush-mounting distribution boards and enclosures currently available on the market. Seven families designed to offer advanced solutions in the residential and commercial sector, also available in halogen-free material. Versions from 2 to 72 modules, degree of protection from IP40 to IP55 and special versions for plasterboard. The range includes also two Multimedia Enclosures: Full Version (54 modules) and Compact Version (36 modules).

IP40

IK08

650 °C

70 °C

Technical Info

Information

Download

Software

Certificates

Insulation class II (according to IEC 61140 standards)

Colour White RAL 9016

Outer dim. LxHxD (mm) 330x420x85

IP degree IP40

Installation For brick wall

Dispersible power (W) 37

Mechanical resistance IK08

Rated voltage 400V

Door colour Smoked Transparent

Terminal blocks 80 A - IP20 bipolar holes with screws

No. of modules EN 50022 24 (12X2)

Rated current 125 A

Glow Wire Test 650 °C

Operating temperature -15 ÷ +60°C

Type of material Halogen-free in compliance with EN 60754-2

Electrocod 0311

Thermo-pressure with ball 70 °C

Standard EN 60670-1 (CEI 23-48) IEC60670-24 CEI 23-49

Insulation voltage 750 V

Pole 1 (mm²) N/E (3x16) + (11x10)

Pole 2 (mm²) N/E (3x16) + (11x10)

Ware Number 85381000

Product Data Sheet

Technical characteristics

User guide

Disposal

Go to download area Go to download area

PBT-Q

Low voltage systems and boards

CADpro

Advanced design of electrical systems

CENTRAL

Quotation and Thermal test of modular enclosures

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

PRICE

Estimation of electrical systems

PROJEX

Low voltage system design

Go to software area Go to software area

Display the certificate

Related products

Gewiss Code

No. of modules EN 50022

Outer dim. LxHxD (mm)

Dispersible power (W)

Pole 1 (mm²)

Pole 2 (mm²)

GW40606BS

24 (12X2)

330x420x85

N/E (3x16) + (11x10)

GW40606BD

24 (12X2)

330x420x85

N/E 2x[(3x16) + (11x10)]

GW40609BS

36 (18x2)

465x505x85

N/E (3x16) + (17x10)

GW40609BD

36 (18x2)

465x505x85

N/E 2x[(3x16) + (17x10)]

GW40610BD

54 (18x3)

465x680x95

N/E 2x[(3x16) + (17x10)]

GW40610BT

54 (18x3)

465x680x95

N/E 3x[(3x16) + (17x10)]

GW40611BD

72 (18x4)

465x855x95

N/E 2x[(3x16) + (17x10)]

GW40611BQ

72 (18x4)

465x880x95

N/E 4x[(3x16) + (17x10)]

Show All Show All

EQUIPMENT AND NOTES

ACCESSORIES SUPPLIED: module masks, circuit labels. Self-adhesive label to be filled out for certification according to standard CEI 23-51. Insulated bipolar screw 80A - IP20 terminal blocks to be installed on the frame before wiring.
NOTES: dispersible power calculated according to CEI 23-49. Upon request, flush-mounting boxes and cabinets (including frame and DIN rails) can be supplied separately.
CHARACTERISTICS: removable and plumbable panels with windows. Thermo-pressure with ball equal to 70°C. Bottoms of enclosures can be assembled side-by-side using combined coupling element GW40425.
