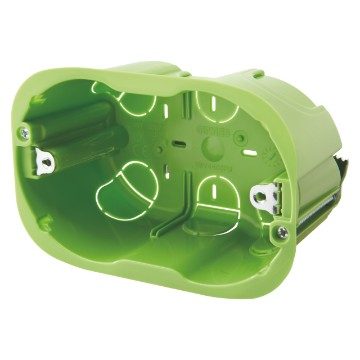

GREEN WALL - HIGH CAPACITY RECTANGULAR BOX - 3 GANG - DIMENSIONS 110x73x50 - HALOGEN FREE

Code: GW24403PM

Range: Green Wall range
Flush-mounting system for plasterboard walls

The most complete system of containers for lightweight and plasterboard walls; GEWISS patented solutions. Made with halogen-free technopolymer and GWT 850°C. The range include enclosures and distribution boards up to 72 M; 48 PT DIN GREENWALL range junction boxes with integrated DIN rail on the back plate, compliant with CEI 23-49, ideal for the pre-arrangement and installation of domotic devices; boxes for wiring devices and boxes for interlocked switched socket-outlets.

Technical Info

Information
Download
Software
Video
Certificates
Description 3 modules
Fixing supports axles distance 83.5 mm
Compartment pre-arrangement 2
Outer dim. LxHxD (mm) 110x73x50
Ware Number 85381000

BIM

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - DE

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Show more

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

Show more

CADpro

Advanced design of electrical systems

Show more

PRICE

Estimation of electrical systems

Show more

IMQ CA02.05512_2018-03-06

Marcatura CE - FT002

EQUIPMENT AND NOTES
CHARACTERISTICS: high resistance to mechanical stress and crushing. Removal of the knockouts without the use of tools. GW24403PM, GW24404PM, GW24406PM with unlosable metal grips and inserts with adjustable depth for fixing. GW24237PM with tabs for direct fixing on panels or a metal structure.
It is recommended to use a Ø 68 mm hollow mill for the correct installation of the rectangular boxes.
NOTES: Casing type H in accordance with EN60670-1, and type Ha in accordance with IEC60670-1.
GWT 850°C, according to EN 60695-2-11, relative to the green flush-mounting box.
