NEW

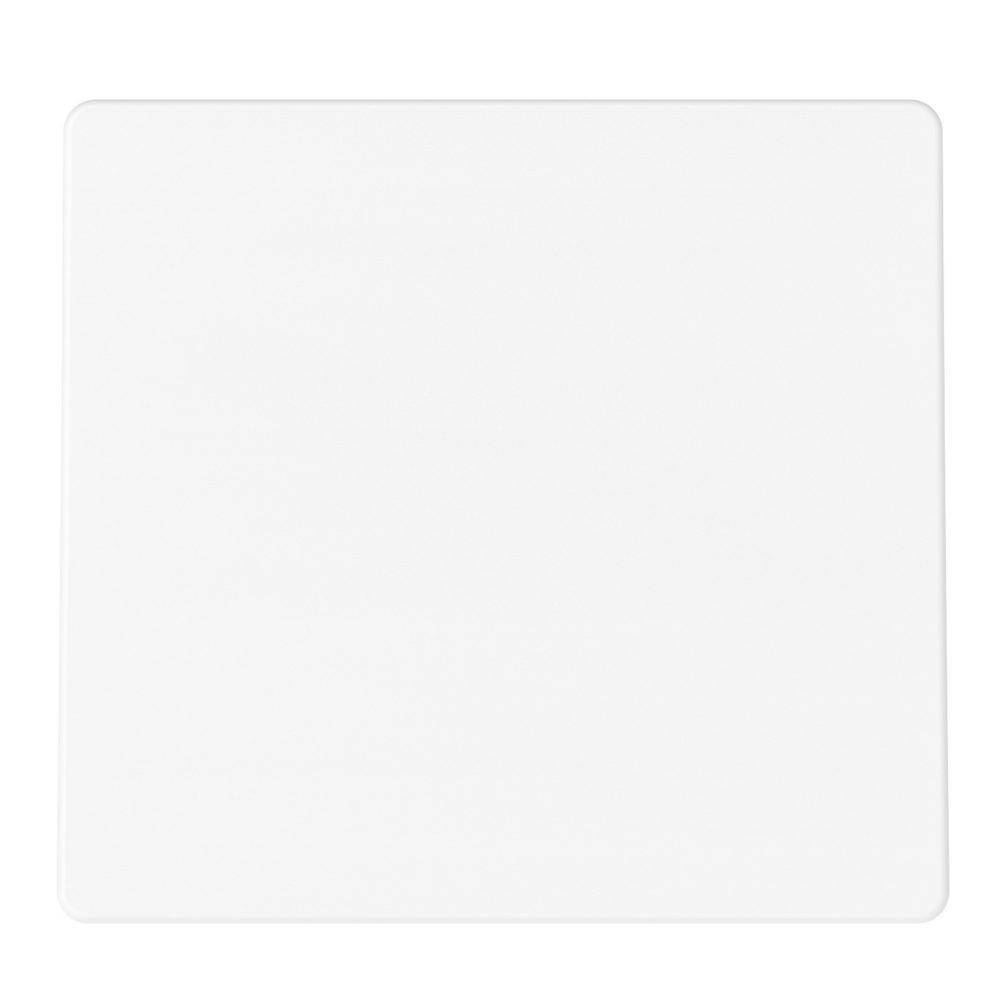

ONE-WAY SWITCH 1P 250V AC - 16AX - NEUTRAL BUTTON - 2 MODULES - GLOSSY WHITE - SYSTEM PURA
Code:
GWC20587
Range: System Pura
Glossy white modular devices
Glossy white modular devices
The System Pura range combines modularity, design and sustainability to offer versatile and complete solutions. Glossy white: understated, modern and easy to integrate into any environment, System Pura meets every aesthetic and functional requirement. It includes devices for control, protection, connection and comfort, ideal for residential settings and special applications.
125 °C
850 °C
Technical Info
Information
Download
Software
Certificates
Category
Switch
Button key
Neutral
Symbol
-
Description
1P - 16 AX
Colour
Glossy white
Voltage
250 V ac
Type
Switch
Signalling unit
-
Standard
EN 60669-1
Resistance at test voltage
2000 V at 50 Hz for 1 minute
Rated power of 230V LED lamps
200 W
Insulation resistance
> 5 MOhm
Wiring terminals
With screw
Prolonged operation switch (no.of position changes)
40.000 at In 250 V ac cosφ=0,6
Thermo-pressure with ball
125 °C
Glow Wire Test
850 °C
Terminal grip on cable traction
> 50 N
Terminal tightening capacity stranded cables (mm²)
min. 0,75 - max. 2x4
Terminal tightening capacity solid cables (mm²)
min. 0,5 - max. 2x2,5
No. modules
2
Material
Technopolymer
Halogen Free
Halogen-free in compliance with EN IEC 63355
Electrocod
0130
Ware Number
85365080
Product Data Sheet
Download
EQUIPMENT AND NOTES
CHARACTERISTICS: the illuminable articles use miniature LED signalling units, not included.
