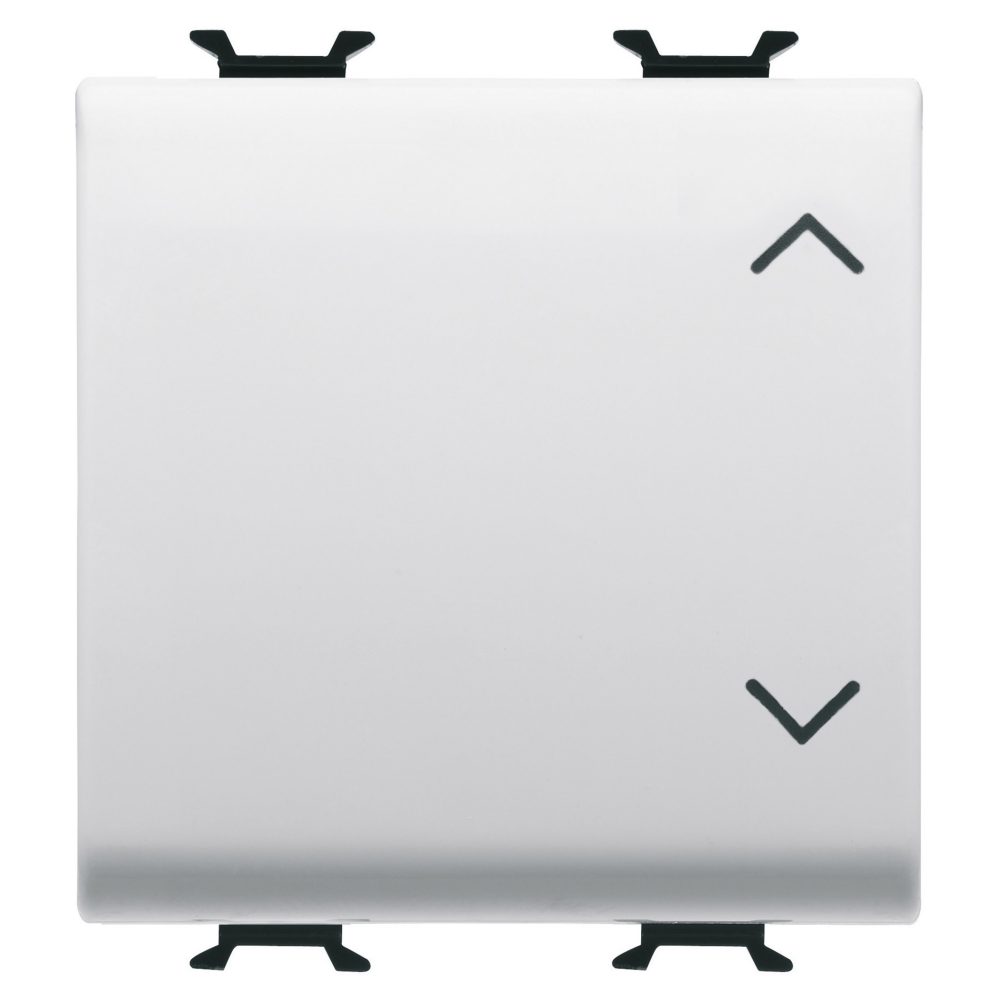

THREE-WAY SWITCH 1P 250V ac - 10AX - NEUTRAL - SYMBOL UP-DOWN - 2 MODULES - GLOSSY WHITE - CHORUSMART

Code: GW10123
Range: CHORUSMART - Domestic range
Glossy white modular devices
The ChoruSmart modular devices allow you to create infinite combinations of devices and plates, thanks to a complete range that covers all design, functional and installation needs.
Colours and finishes: glossy white, bright and versatile.
Unlimited functions in compact spaces: the ChoruSmart range consists of button keys with ½, 1 and 2 rocker modules, to optimise space according to needs, and axial buttons in the EVO or SMART version, to meet the latest requirements.
Front coupling: front coupling allows the components to be assembled and released quickly and easily, with no need to remove the support, which is the same for all plates and boxes.

125 °C

850 °C

Technical Info

Information
Download
Software
Certificates
Category Three-way switch
Colour Glossy white
Description 1P - 10AX
Voltage 250 V ac
Standard EN 60669-1
Resistance at test voltage 2000 V at 50 Hz for 1 minute
Rated power of 230V LED lamps 100 W
Insulation resistance > 5 MOhm
Wiring terminals With screw
Prolonged operation switch (no.of position changes) 40.000 at In 250 V ac cosφ=0,6
Thermo-pressure with ball 125 °C
Glow Wire Test 850 °C
Terminal grip on cable traction > 50 N
Terminal tightening capacity
stranded cables (mm²)
min. 0,75 - max. 2x4
Terminal tightening capacity
solid cables (mm²)
min. 0,5 - max. 2x2,5
No. modules 2
Button key Neutral
Symbol UP - DOWN
Material Technopolymer
Electrocod 0130
Ware Number 85365080

Product Data Sheet

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - ES

CADpro

Advanced design of electrical systems

Show more

HOME

Configuration of the home electrical system

Show more

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

Show more

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Show more

PRICE

Estimation of electrical systems

Show more

Conformity declaration

Display the certificate

CE marking

EQUIPMENT AND NOTES
CHARACTERISTICS: three standing positions. Both contacts are open in the central position (OFF).
APPLICATIONS: command of circuits requiring an interlock (e.g. operating motorised devices with direction reversal). 2-user selective control.
