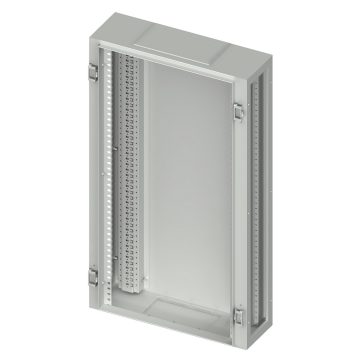

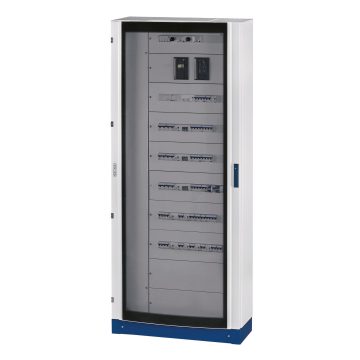

47 CVX 630 M range Monobloc distribution boards up to 630 A - IP55

ACCESSORIES SUPPLIED: 2 cable gland plates with fixing screws for distribution boards L=600 mm,

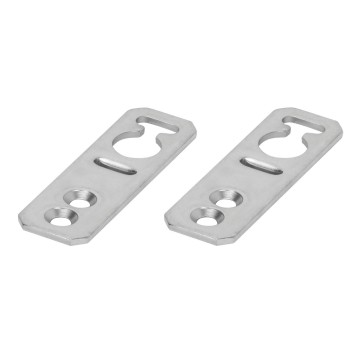

6 cable gland plates with fixing screws for distribution boards L=850 mm, 4 brackets for wall-mounting.

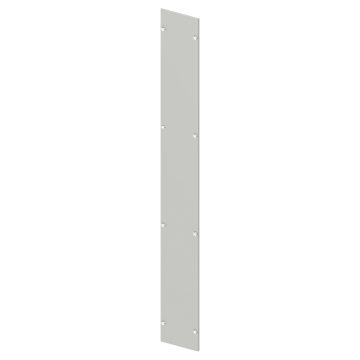

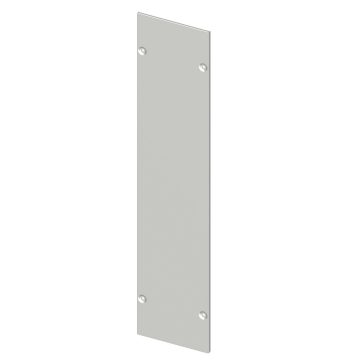

ACCESSORIES SUPPLIED: screws for fixing to the structure.

ACCESSORIES SUPPLIED: screws for fixing to the structure.

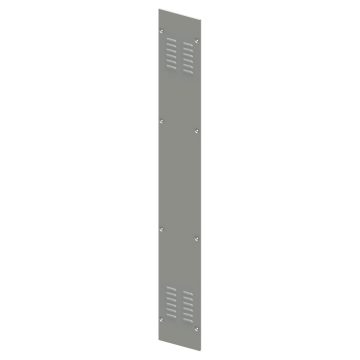

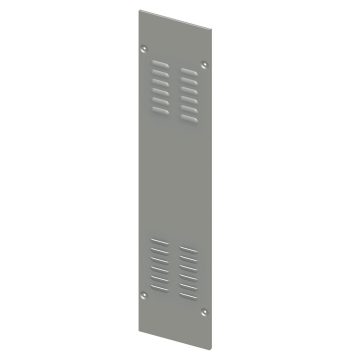

APPLICATIONS: louver for natural or forced aeration, with IP30 degree of protection.

ACCESSORIES SUPPLIED: 1 cable gland plate complete with fixing screws for the distribution boards L=600 mm,
3 cable gland plates complete with fixing screws for the distribution boards L=850 mm.

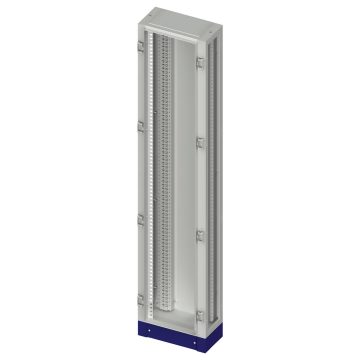

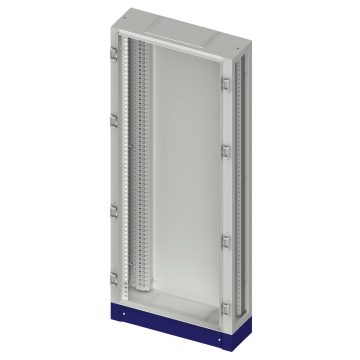

NOTE: the external dimensions of the board also include the dimensions of the plinth (H=100 mm).

ACCESSORIES SUPPLIED: screws for fixing to the structure.

ACCESSORIES SUPPLIED: screws for fixing to the structure.
APPLICATIONS: louver for natural or forced aeration, with IP30 degree of protection.

ACCESSORIES SUPPLIED: 4 mounting pins; key in zama.

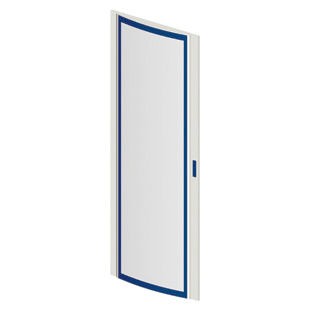

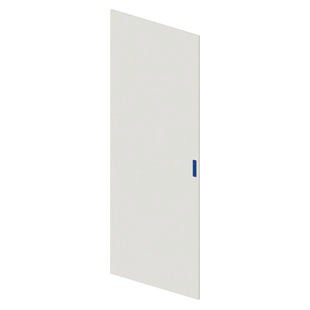

CHARACTERISTICS: possibility to assemble the door with reversible opening (right/left); painted sheet metal, Grey RAL 7035.

ACCESSORIES SUPPLIED: 4 mounting pins; key in zama.
CHARACTERISTICS: possibility to assemble the door with reversible opening (right/left); painted sheet metal, Grey RAL 7035.

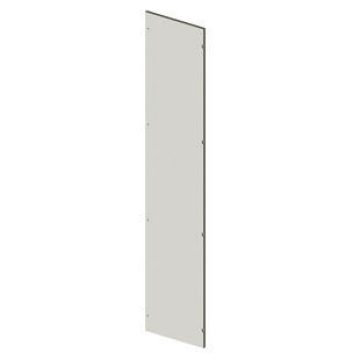

ACCESSORIES SUPPLIED: panel in painted sheet metal colour Grey RAL 7035.

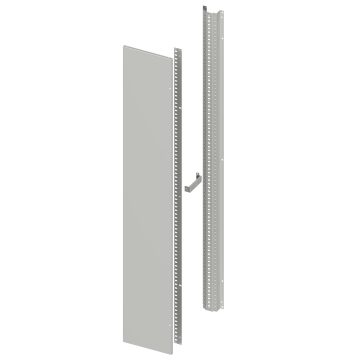

CHARACTERISTICS: possibility to assemble the internal cable compartment at the right or at the left side for board L=850 mm.

ACCESSORIES SUPPLIED: 1 cable gland plate complete with fixing screws.
NOTES: the external compartment can be put together with the structure by using the special side by side kit.
The external dimensions of the external cable compartment also include the dimensions of the plinth (H=100 mm).

ACCESSORIES SUPPLIED: external door equipped with handle with rod-mechanism lock and key in zama.
NOTES: the internal doors are used on an external cable compartment put together with an IP30 structure without door.
The internal doors can be used also as inner door in the external door version.
CHARACTERISTICS: possibility to assemble the door with reversible opening (right/left); sheet metal painted with epoxy-polyester powders, Grey RAL 7035; for the external door possibility of replacing the rotary handle closure with a security lock.

FOURNITURES: plaque de support en tôle zinguée, accessoires de fixation.
CARACTERISTIQUES: pattes de fixation en matière isolante assurant la double isolation classe II. Plastron en tôle peinte couleur gris RAL7035; mise à la terre par contact; vis de fixation du plastron imperdables; plastrons pré-équipés pour le montage de charnières.

FOURNITURES: accessoires de fixation, mise à la terre, obturateurs cache-modules (pour GW45651).
CARACTERISTIQUES: GW45651: permet l'installation d'un panneau de contrôle monophasé 250x225mm à entraxe de fixation normalisé, ou l'installation d'un bloc de commande de la série 40CD, référence GW40511 ou GW40512.
NOTE: le kit d'installation GW45651 est livré sans platine tarif bleu. GW45652: kit d'installation fourni avec la platine tarif bleu pour disjoncteur de branchement et compteur électronique triphasé.

ACCESSORIES SUPPLIED: double EN 50022 (DIN 35) rail in aluminium; 2 screws for mounting the DIN rail; 2 support brackets in galvanised sheet metal; fixing accessories.
CHARACTERISTICS: front panel in painted sheet metal colour Grey RAL 7035; panel earthing by contact; captive panel fixing screws; prearrangement of the panels for rotation hinges.
NOTES: for the assembly of the MTX MCCB's with or without add-on RCD, order the special kit for fixing to the DIN rail.
The coupling of modular and MCCB's requires the GW49209 depth adapter.
GW45291 - GW45201/6 for modular devices of the 90 range only.
GW45292/3 - GW45202/3/7/8 suitable for modular devices of the 90 and MTX/M 160c, MTX/M 160c ranges with lowered "L" add-on residual current device, MTX/E 160, MTX/M 250.
GW45204/9 specific version for MTX/M 160c, MTX/E 160, MTX/M 250 with "L" add-on residual current device.

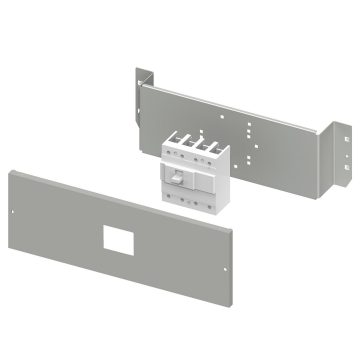

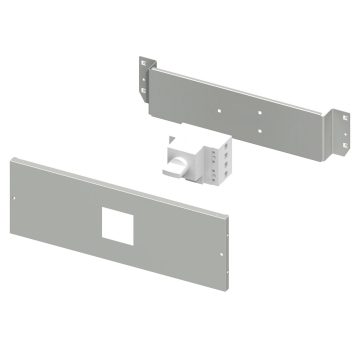

ACCESSORIES SUPPLIED: galvanised sheet metal support plate; fixing accessories.
CHARACTERISTICS: front panel in painted sheet metal colour Grey RAL 7035; earthing by contact; captive panel fixing screws; prearrangement of the panels for rotation hinges.

ACCESSORIES SUPPLIED: galvanised sheet metal support plate; fixing accessories.
CHARACTERISTICS: front panel in painted sheet metal colour Grey RAL 7035; earthing by contact; captive panel fixing screws; prearrangement of the panels for rotation hinges.

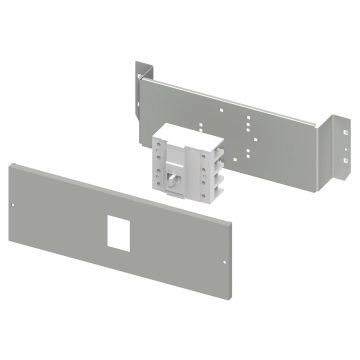

ACCESSORIES SUPPLIED: galvanised sheet metal support plate; fixing accessories.
CHARACTERISTICS: front panel in painted sheet metal colour Grey RAL 7035; earthing by contact; captive panel fixing screws; prearrangement of the panels for rotation hinges. GW45281/6 not suitable for lowered "L" add-on residual current device.

ACCESSORIES SUPPLIED: galvanised sheet metal support plate; fixing accessories.
CHARACTERISTICS: front panel in painted sheet metal colour Grey RAL 7035; earthing by contact; captive panel fixing screws; prearrangement of the panels for rotation hinges.
NOTES: with GW45264/5 it is not possible to assemble the bars on the base to pass behind the kit plate. The installation kits for MCCB's with a direct rotating handle are not compatible with the blank board door.

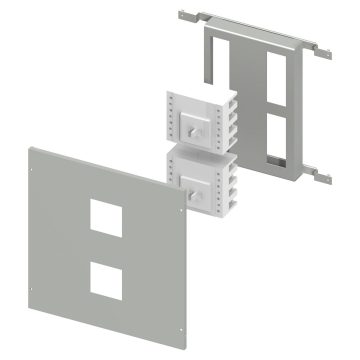

ACCESSORIES SUPPLIED: galvanised sheet metal support plate; fixing accessories.
CHARACTERISTICS: front panel in painted sheet metal colour Grey RAL 7035; earthing by contact; captive panel fixing screws; prearrangement of the panels for rotation hinges.
NOTES: with GW45602/3/4 it is not possible to assemble the bars on the base to pass behind the kit plate.
GW45601 - possibility of front interlock between any two circuit breakers of the following types: MTX/M 160c - MTX/E 160 - MTX/M 250.
Interlock system to be purchased separately.

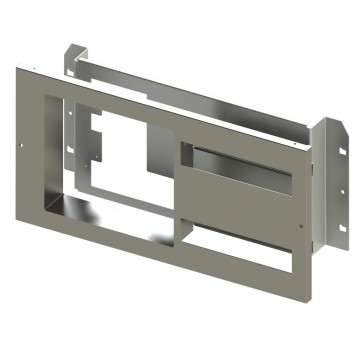

ACCESSORIES SUPPLIED: galvanised sheet metal support plate; fixing accessories.
CHARACTERISTICS: front panel in painted sheet metal colour Grey RAL 7035; earthing by contact; captive panel fixing screws; prearrangement of the panels for rotation hinges.
NOTE: the installation kits for switch disconnectors are not compatible with the blank door of distribution board.

ACCESSORIES SUPPLIED: fixing accessories.
CHARACTERISTICS: front panel in painted sheet metal colour Grey RAL 7035; earthing by contact; captive panel fixing screws; pre-arrangement of panels for rotation hinges (except for GW45301/2 and GW45321/2).

ACCESSORIES SUPPLIED: fixing accessories.
CHARACTERISTICS: front panel in painted sheet metal colour Grey RAL 7035; earthing by contact; captive panel fixing screws; prearrangement of the panels for rotation hinges.
APPLICATIONS: installation of ammeters, voltmeters, voltmeter/ammeter three-way switches.

ACCESSORIES SUPPLIED: fixing accessories.
CHARACTERISTICS: front panel in painted sheet metal colour Grey RAL 7035; earthing by contact; captive panel fixing screws; prearrangement of the panels for rotation hinges.
APPLICATIONS: natural ventilation in wall and floor-mounting distribution boards.

ACCESSORIES SUPPLIED: double EN 50022 (DIN 35) rail in aluminium; 2 screws for mounting the DIN rail; 2 support brackets in galvanised sheet metal; fixing accessories.

ACCESSORIES SUPPLIED: fixing accessories.
CHARACTERISTICS: galvanised sheet metal plate (20/10 mm thick).

CHARACTERISTICS: allow the internal separation of the distribution board.

CHARACTERISTICS: allow the internal separation (form 2B) in the case of busbar in the cable compartment.

APPLICATIONS: compensation of the different installation depths on DIN rail EN 50022 of the modular devices (90 range) moulded case circuit breakers (MTX/M 160c - MTX/E 160 - MTX/M 250 range).

CHARACTERISTICS: clip fixing on DIN perforated front panels.

ACCESSORIES SUPPLIED: panel closure cap.
CHARACTERISTICS: additional earthing of the panel by contact.
APPLICATIONS: option of hinging front panels.

NOTE: the DIN profiles with 24 and 36 modules can be fixed directly on the frame.

APPLICATIONS: both horizontal and vertical assembly of wiring trunking up to 80x80 mm.

CHARACTERISTICS: the fan takes in air from the outside and introduces it into the distribution board, creating a slight overpressure that prevents foreign particles from entering. Max fan capacity 60 m³/h. Absorbed power equal to 20 W.
APPLICATIONS: forced ventilation in critical thermal conditions.
ACCESSORIES SUPPLIED: drilling template.

ACCESSORIES SUPPLIED: drilling template.

CHARACTERISTICS: additional plinth to facilitate cable entry and/or raise the distribution board. Lateral pre-breaking for the cable passages.

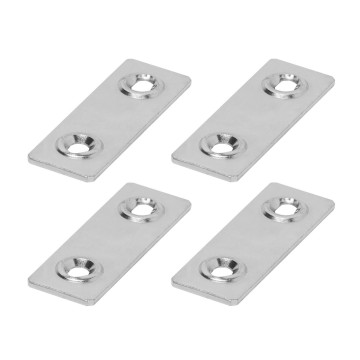

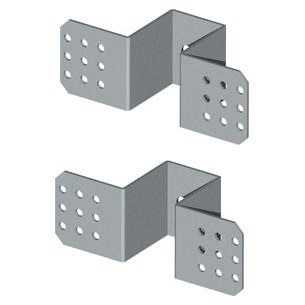

NOTE: to create side by side installations for IP55 structures, gasket GW47473 must be added to the kit that includes the plates and screws.

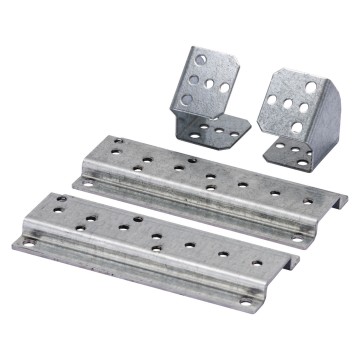

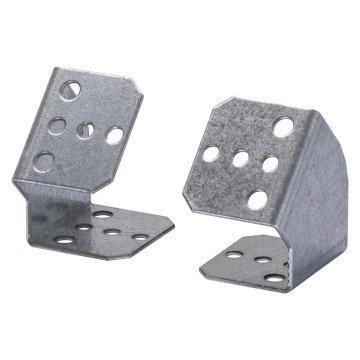

APPLICATION: permits the fixing of the input/output cables on the distribution board structure.

NOTE: direct fixing on the functional frames.

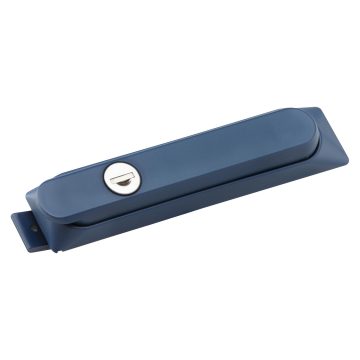

NOTE: the lock is supplied with identical keys.

NOTE: the lock is supplied with identical keys. The rotary handle can also be used for the door of the external cable compartment.
