JOINON range
electric vehicle charging station I-ON

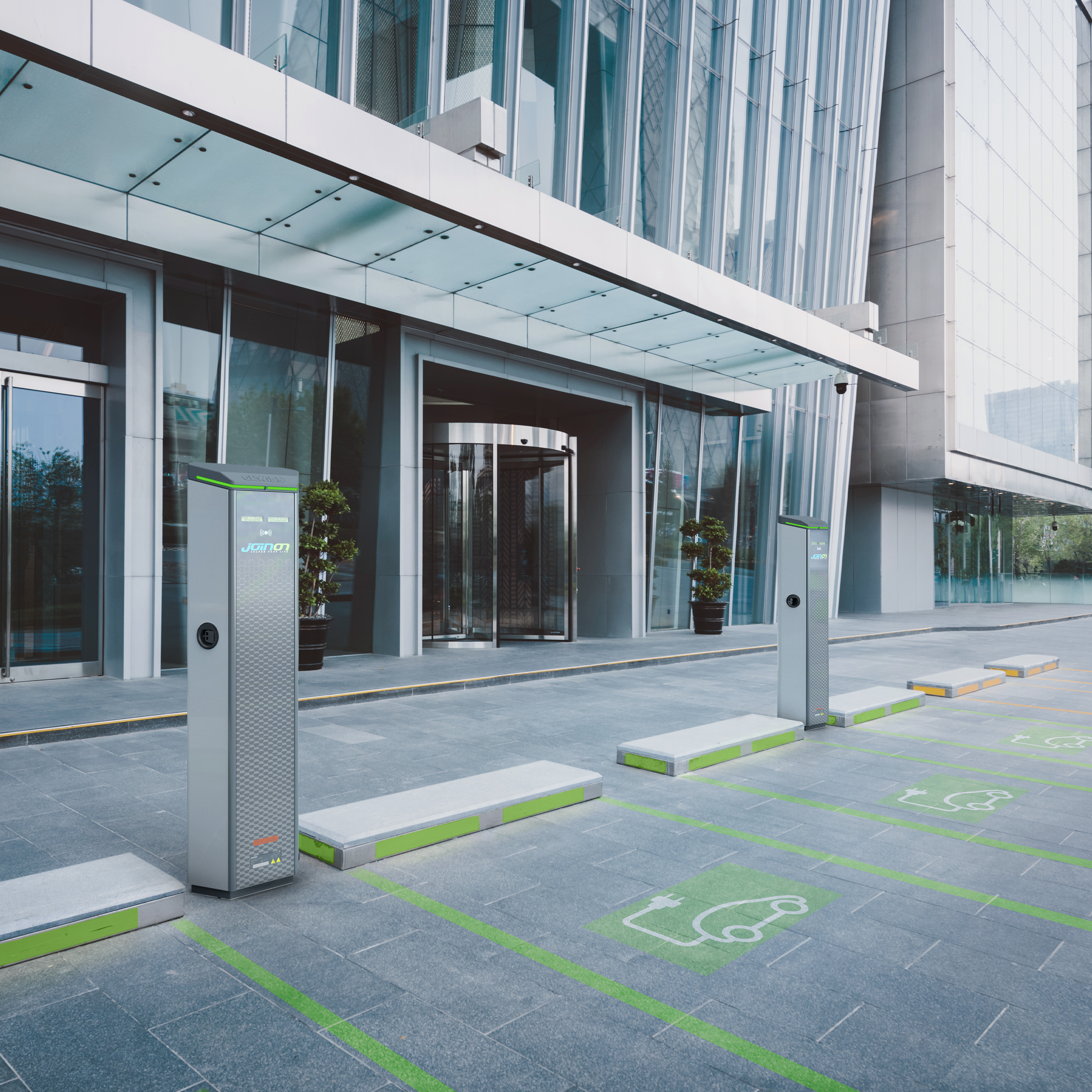

I-ON (floor-mounting) and I-ON Wall (wall-mounting) charging stations are the JOINON solutions for public and semi-public scenarios, engineered to resist to impacts, vandalism and and atmospheric agents: as a result, IP55 protection and IK10 robustness are guaranteed. The design takes care of urban context and to ergonomical eDriver side ease of use.

Benefits
Easy charging with one-hand system
Easy charging with one-hand system
Charging your electric vehicle is even faster and more convenient. With the one-hand charging, you can connect the charging socket with one hand, leaving the other free for unloading the vehicle (grocery bags, packages, luggage and more).
Design suitable for every need
Design suitable for every need
The unique style, with an exclusive hexagonal shape, integrates perfectly into any parking configuration, including back-to-back (two units placed together, one behind the other) with considerable savings on installation costs. High-efficiency RGB
LEDs, visible even from a distance and from any side of the charging station.
The front of the charging units has an elegant design, suitable for all contexts. If required, the design can be customised to specific customer requirements.
Smart charging management
Smart charging management
Possibility to manage loads dynamically from one or more stations through the OCPP protocol (DYNAMIC LOAD MANAGEMENT) to ensure the best load distribution, avoiding spikes or overloads and optimising power system sizing costs.

The products of this series

44 products

I-ON for electric vehicles for private and/or public access mode 3

AUTOSTART charging activation

Category
I-ON column - floor-standing stand alone - IP55

Change category

I-ON column - floor-standing stand alone - IP55
I-ON WALL BOX - surface-mounting stand alone - IP55
Cod Gewiss
N. of sockets Type 2
Charging power
Protection integrated
Power meter
RFID Reader
JOINON - FLOOR-MOUNTING CHARGING STATION - AUTOSTART - 7,4 KW-7,4KW - IP55
GWJ1001A
2
7,4 kW + 7,4 kW
Magnetothermic + Diff. Type B
No
No
JOINON - FLOOR-MOUNTING CHARGING STATION - AUTOSTART - 11 KW-11 KW - IP55
GWJ1002A
2
11 kW + 11 kW
Magnetothermic + Diff. Type B
No
No
JOINON - FLOOR-MOUNTING CHARGING STATION - AUTOSTART - 22 KW-22 KW - IP55
GWJ1003A
2
22 kW + 22 kW
Magnetothermic + Diff. Type B
No
No
Cod Gewiss
N. of sockets Type 2
Charging power
Protection integrated
Power meter
RFID Reader
JOINON - SURFACE-MOUNTING CHARGING STATION - AUTOSTART - 7,4 KW-7,4KW - IP55
GWJ2101A
2
7,4 kW + 7,4 kW
No
No
No
JOINON - SURFACE-MOUNTING CHARGING STATION - AUTOSTART - 11 KW-11 KW - IP55
GWJ2102A
2
11 kW + 11 kW
No
No
No
JOINON - SURFACE-MOUNTING CHARGING STATION - AUTOSTART - 22 KW-22 KW - IP55
GWJ2103A
2
22 kW + 22 kW
No
No
No

RFID charging activation

Category
I-ON column - floor-standing stand alone with authorised access - IP55

Change category

I-ON column - floor-standing stand alone with authorised access - IP55
I-ON column - floor-mounted stand-alone with authorised access - IP54
I-ON WALL BOX - Surface-mounting stand alone with authorised access - IP55
I-ON WALLBOX - surface-mounted stand-alone with authorised access - IP54
Cod Gewiss
N. of sockets Type 2
Charging power
Protection integrated
Power meter
RFID Reader
JOINON - FLOOR-MOUNTING CHARGING STATION - RFID - 7,4 KW-7,4 KW - ENERGY METER - IP55
GWJ1001R
2
7,4 kW + 7,4 kW
Magnetothermic + Diff. Type B
Yes (Type MID)
Yes
JOINON - FLOOR-MOUNTING CHARGING STATION - RFID - 11 KW-11 KW - ENERGY METER - IP55
GWJ1002R
2
11 kW + 11 kW
Magnetothermic + Diff. Type B
Yes (Type MID)
Yes
JOINON - FLOOR-MOUNTING CHARGING STATION - RFID - 22 KW-22 KW - ENERGY METER - IP55
GWJ1003R
2
22 kW + 22 kW
Magnetothermic + Diff. Type B
Yes (Type MID)
Yes
Cod Gewiss
N. of sockets Type 2
Charging power
Protection integrated
Power meter
RFID Reader
JOINON - FLOOR-MOUNTING CHARGING STATION - RFID - 7,4 kW 2xT2S+SC - IP55
GWJ1021R
2 (+2 domestic socket Type F)
7,4 kW + 7,4 kW
Magnetothermic + Diff. Type B
Yes (Type MID)
Yes
JOINON - FLOOR-MOUNTING CHARGING STATION - RFID - 22 kW 2xT2S+SC - IP55
GWJ1023R
2 (+2 domestic socket Type F)
22 kW + 22 kW
Magnetothermic + Diff. Type B
Yes (Type MID)
Yes
Cod Gewiss
N. of sockets Type 2
Charging power
Protection integrated
Power meter
RFID Reader

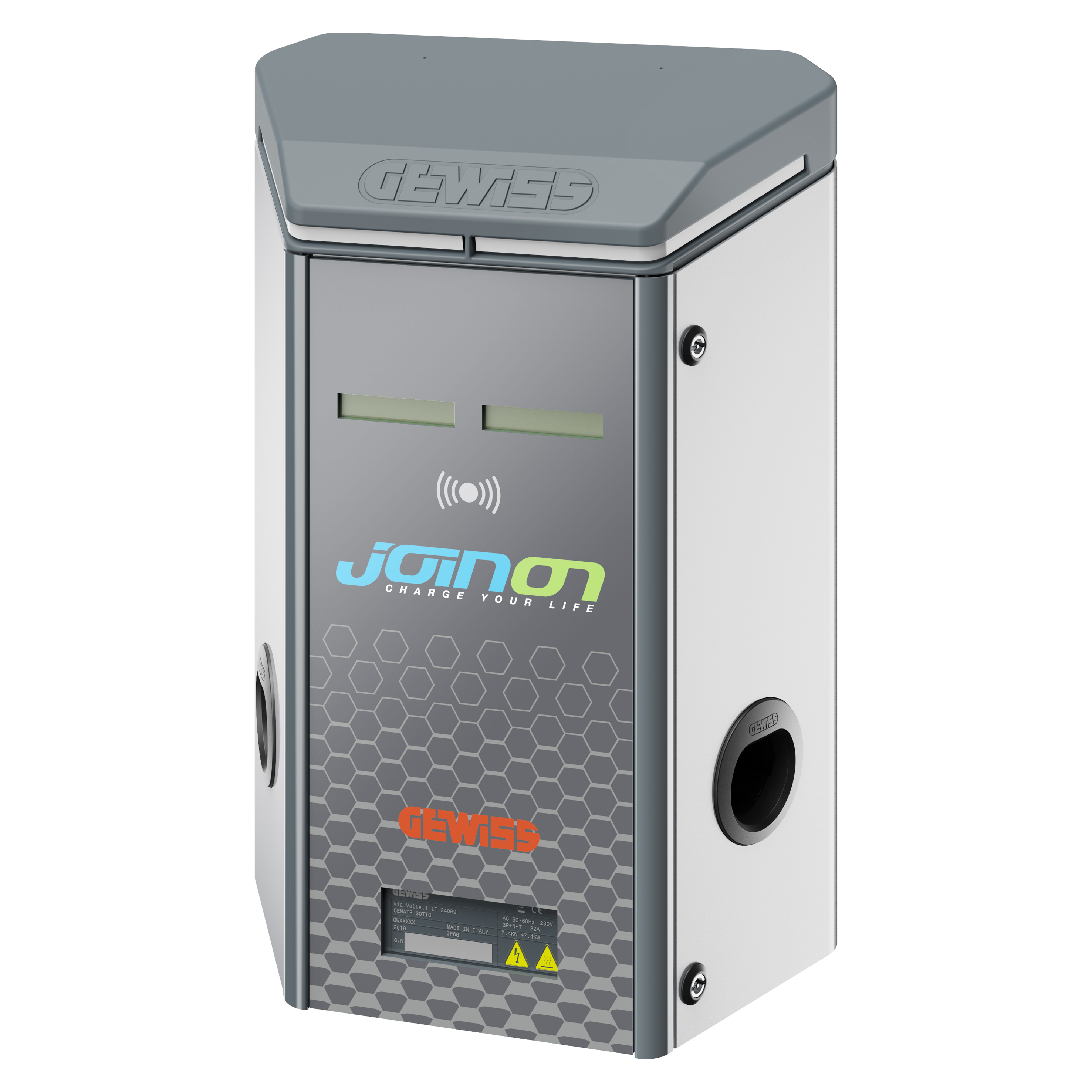

JOINON - SURFACE-MOUNTING CHARGING STATION - RFID - 7,4 KW-7,4 KW - ENERGY METER - IP55
GWJ2101R
2
7,4 kW + 7,4 kW
No
Yes (Type MID)
Yes
JOINON - SURFACE-MOUNTING CHARGING STATION - RFID - 11 KW-11 KW - ENERGY METER - IP55
GWJ2102R
2
11 kW + 11 kW
No
Yes (Type MID)
Yes
JOINON - SURFACE-MOUNTING CHARGING STATION - RFID - 22 KW-22 KW - ENERGY METER - IP55
GWJ2103R
2
22 kW + 22 kW
No
Yes (Type MID)
Yes
Cod Gewiss
N. of sockets Type 2
Charging power
Protection integrated
Power meter
RFID Reader
JOINON - SURFACE-MOUNTING CHARGING STATION - RFID - 7,4 kW 1xT2S+SC - IP55
GWJ2121R
1 (+1 domestic socket Type F)
7,4 kW + 2,3 kW
No
Yes (Type MID)
Yes
JOINON - SURFACE-MOUNTING CHARGING STATION - RFID - 22 kW 1xT2S+SC - IP55
GWJ2123R
1 (+1 domestic socket Type F)
22 kW + 2,3 kW
No
Yes (Type MID)
Yes

Charging activation: through cloud management software and apps

Category
I-ON column - Floor-standing, cloud OCPP 1.6 and can be connected to management software

Change category

I-ON column - Floor-standing, cloud OCPP 1.6 and can be connected to management software
I-ON column - floor-mounted, cloud OCPP 1.6 with management software - IP54
I-ON WALL BOX - Wall-mounting, cloud OCPP 1.6 and can be connected to management software
I-ON WALLBOX - surface-mounted, cloud OCPP 1.6 with management software - IP54
Cod Gewiss
Comunication
N. of sockets Type 2
Charging power
Protection integrated
Power meter
RFID Reader
JOINON - FLOOR-MOUNTING CHARGING STATION - KIT ETHERNET - 7,4 KW-7,4 KW - ENERGY METER - IP55
GWJ1001L
Ethernet kit
2
7,4 kW + 7,4 kW
Magnetothermic + Diff. Type B
Yes (Type MID)
Yes
JOINON - FLOOR-MOUNTING CHARGING STATION - CLOUD - KIT ETHERNET - 11 KW-11 KW - ENERGY METER - IP55
GWJ1002L
Ethernet kit
2
11 kW + 11 kW
Magnetothermic + Diff. Type B
Yes (Type MID)
Yes
JOINON - FLOOR-MOUNTING CHARGING STATION - KIT ETHERNET - 22 KW-22 KW - ENERGY METER - IP55
GWJ1003L
Ethernet kit
2
22 kW + 22 kW
Magnetothermic + Diff. Type B
Yes (Type MID)
Yes
JOINON - FLOOR-MOUNTING CHARGING STATION - KIT ETHERNET+MODEM - 7,4 KW-7,4 KW - ENERGY METER - IP55
GWJ1001W
Ethernet Kit and 4G Modem with booster antenna
2
7,4 kW + 7,4 kW
Magnetothermic + Diff. Type B
Yes (Type MID)
Yes
JOINON - FLOOR-MOUNTING CHARGING STATION - KIT ETHERNET+MODEM - 11 KW-11 KW - ENERGY METER - IP55
GWJ1002W
Ethernet Kit and 4G Modem with booster antenna
2
11 kW + 11 kW
Magnetothermic + Diff. Type B
Yes (Type MID)
Yes
Cod Gewiss
Comunication
N. of sockets Type 2
Charging power
Protection integrated
Power meter
RFID Reader
JOINON - FLOOR-MOUNTING CHARGING STATION - KIT ETHERNET+MODEM - 7,4 kW 2xT2S+SC - IP55-4G
GWJ1021W
Ethernet Kit and 4G Modem with booster antenna
2 (+2 domestic socket Type F)
7,4 kW + 7,4 kW
Magnetothermic + Diff. Type B
Yes (Type MID)
Yes
JOINON - FLOOR-MOUNTING CHARGING STATION - KIT ETHERNET+MODEM - 22 kW 2xT2S+SC - IP55-4G
GWJ1023W
Ethernet Kit and 4G Modem with booster antenna
2 (+2 domestic socket Type F)
22 kW + 22 kW
Magnetothermic + Diff. Type B
Yes (Type MID)
Yes
Cod Gewiss
Comunication
N. of sockets Type 2
Charging power
Protection integrated
Power meter
RFID Reader
JOINON - SURFACE-MOUNTING CHARGING STATION CLOUD - KIT ETHERNET - 7,4 KW-7,4 KW - ENERGY METER - IP55
GWJ2101L
Ethernet kit
2
7,4 kW + 7,4 kW
No
Yes (Type MID)
Yes
JOINON - SURFACE-MOUNTING CHARGING STATION CLOUD - KIT ETHERNET - 11 KW-11 KW - ENERGY METER - IP55
GWJ2102L
Ethernet kit
2
11 kW + 11 kW
No
Yes (Type MID)
Yes
JOINON - SURFACE-MOUNTING CHARGING STATION CLOUD - KIT ETHERNET - 22 KW-22 KW - ENERGY METER - IP55
GWJ2103L
Ethernet kit
2
22 kW + 22 kW
No
Yes (Type MID)
Yes
JOINON - SURFACE-MOUNTING CHARGING STATION CLOUD - KIT ETHERNET+MODEM - 7,4 KW-7,4 KW - ENERGY METER - IP55
GWJ2101W
Ethernet Kit and 4G Modem with booster antenna
2
7,4 kW + 7,4 kW
No
Yes (Type MID)
Yes
JOINON - SURFACE-MOUNTING CHARGING STATION CLOUD - KIT ETHERNET+MODEM - 11 KW-11 KW - ENERGY METER - IP55
GWJ2102W
Ethernet Kit and 4G Modem with booster antenna
2
11 kW + 11 kW
No
Yes (Type MID)
Yes
Cod Gewiss
Comunication
N. of sockets Type 2
Charging power
Protection integrated
Power meter
RFID Reader
JOINON - SURFACE-MOUNTING CHARGING STATION CLOUD - KIT ETHERNET+MODEM - 7,4 kW 1xT2S+SC - IP55 - 3G
GWJ2121W
Ethernet Kit and 4G Modem with booster antenna
1 (+1 domestic socket Type F)
7,4 kW + 2,3 kW
No
Yes (Type MID)
Yes
JOINON - SURFACE-MOUNTING CHARGING STATION CLOUD - KIT ETHERNET+MODEM - 22 kW 1xT2S+SC - IP55 - 4G
GWJ2123W
Ethernet Kit and 4G Modem with booster antenna
1 (+1 domestic socket Type F)
22 kW + 2,3 kW
No
Yes (Type MID)
Yes

I-ON Accessories

Category
RFID CARD

Change category

RFID CARD
Communication system kit
Technical installation accessories
Loads management
Cod Gewiss
Description
Suitable for
RFID CARD TO ENABLE CHARGING PROCESS<br />

GWJ8001
RFID card to enable the charging process
I-ON and I-ON WALL with RFID reader
Cod Gewiss
Description
Suitable for
JOINON - ETHERNET KIT
GWJ8011
Joinon ethernet kit
I-ON EVO e I-ON EVO WALL

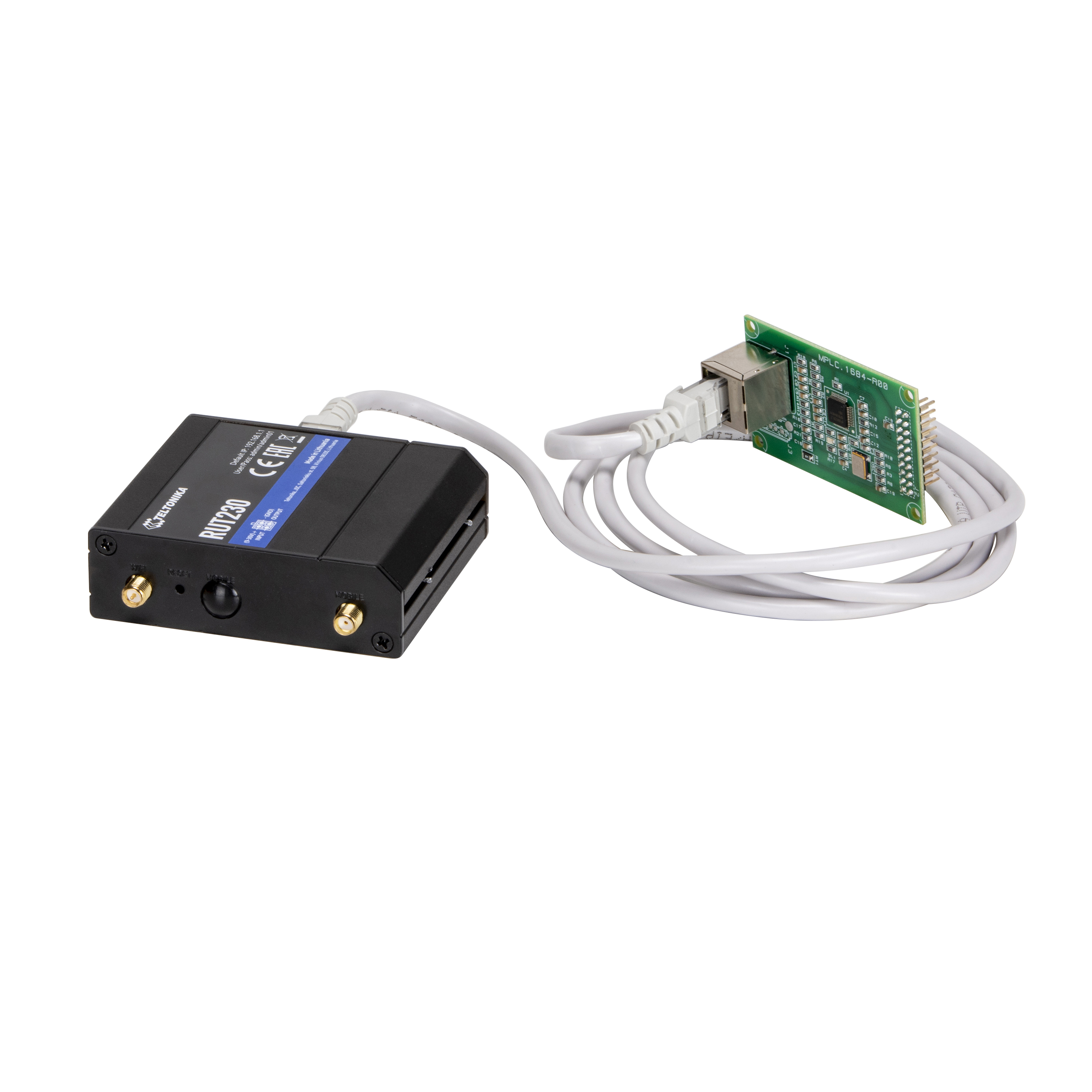

JOINON - ETHERNET KIT + MODEM + ANTENNA
GWJ8012
Joinon ethernet kit + modem 4G + antenna
I-ON EVO e I-ON EVO WALL
SIM DATA JOINON
GWJ8014
SIM Data JOINON
I-ON EVO and I-ON EVO WALL
I-ON - KIT COMMISIONING
GWJ8015
I-ON Commissioning Kit
I-ON
I-ON WALLBOX - KIT COMMISIONING
GWJ8016
I-ON WALL Commissioning Kit
I-ON WALL
Cod Gewiss
Description
Suitable for
I-ON - CONCRETE GROUND FIXING PLATE
GWJ8021
Concrete ground fixing plate
I-ON EVO
I-ON WALLBOX - POLE SUPPORT KIT
GW46551
Pole support KIT
I-ON EVO WALL
Cod Gewiss
Description
Suitable for
I-CON - SITE CONTROLLER FOR DLM IN PUBLIC FIELD
GWJ8031
Site controller for DLM in public field
I-ON CLOUD and I-ON WALL CLOUD
I-CON/I-ON – MODEM
GWJ8032
Modem
Site Controller
IP ENERGY METER
GWJ8033
IP Energy Meter
Site Controller
You saw 44 products on 44
