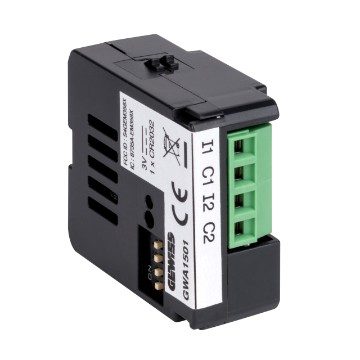

CONTACT INTERFACE - 2 CHANNELS - BATTERY OPERATED - ZIGBEE
Code:
GWA1501
Range: Home&Building Pro
Home & Building PRO system
Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential solutions and small-to-medium offices. The offer is highly customisable, complete with all functions and can be integrated with third-party devices and systems (video intercom, smart locks, entertainment). It can be controlled via the APP, voice assistants or touch panels. With Home and Building PRO, you can also manage ZigBee devices and communicate with the Google Home IoT platforms, Amazon Alexa and IFTTT.
IP20
Technical Info
Information
Download
Software
Certificates
Category
Contacts interface
Communication protocol
Zigbee (IEEE 802.15.4)
Supply voltage
Battery powered
Power supply batteries
CR2032 replaceable
Output power
8 dBm
No. input channels
2
Input voltage
Potential-free
Max cable length
15 m
Standard
2014/53/EU, EN 60669-2-1, EN 60669-1, ETSI EN 300-328
IP degree
IP20
Working temperature
-5 ÷ +45 °C
Stocking temperature
-25 ÷ +70 °C
Relative humidity (non-condensative)
Max 93%
Dimensions LxHxD (mm)
42x40x20
Electrocod
051A
Ware Number
85389099
EQUIPMENT AND NOTES
CHARACTERISTICS: interface for the connection of 2 independent input contacts (auxiliary axial commands, push buttons and traditional switches sensors etc.), potential-free (GWA1501) or live (GWA1502). GWA1501 powered by CR2032-type battery (replaceable).
APPLICATIONS: allows commands to be sent for ON-OFF, timed, roller shutters and Venetian blinds, dimmers, scenarios, priority commands and signalling the current state of the contact.
NOTES: installation in flush-mounting boxes, junction boxes or clipped into the ChoruSmart GW1x750 blanking modules.
APPLICATIONS: allows commands to be sent for ON-OFF, timed, roller shutters and Venetian blinds, dimmers, scenarios, priority commands and signalling the current state of the contact.
NOTES: installation in flush-mounting boxes, junction boxes or clipped into the ChoruSmart GW1x750 blanking modules.
