Description

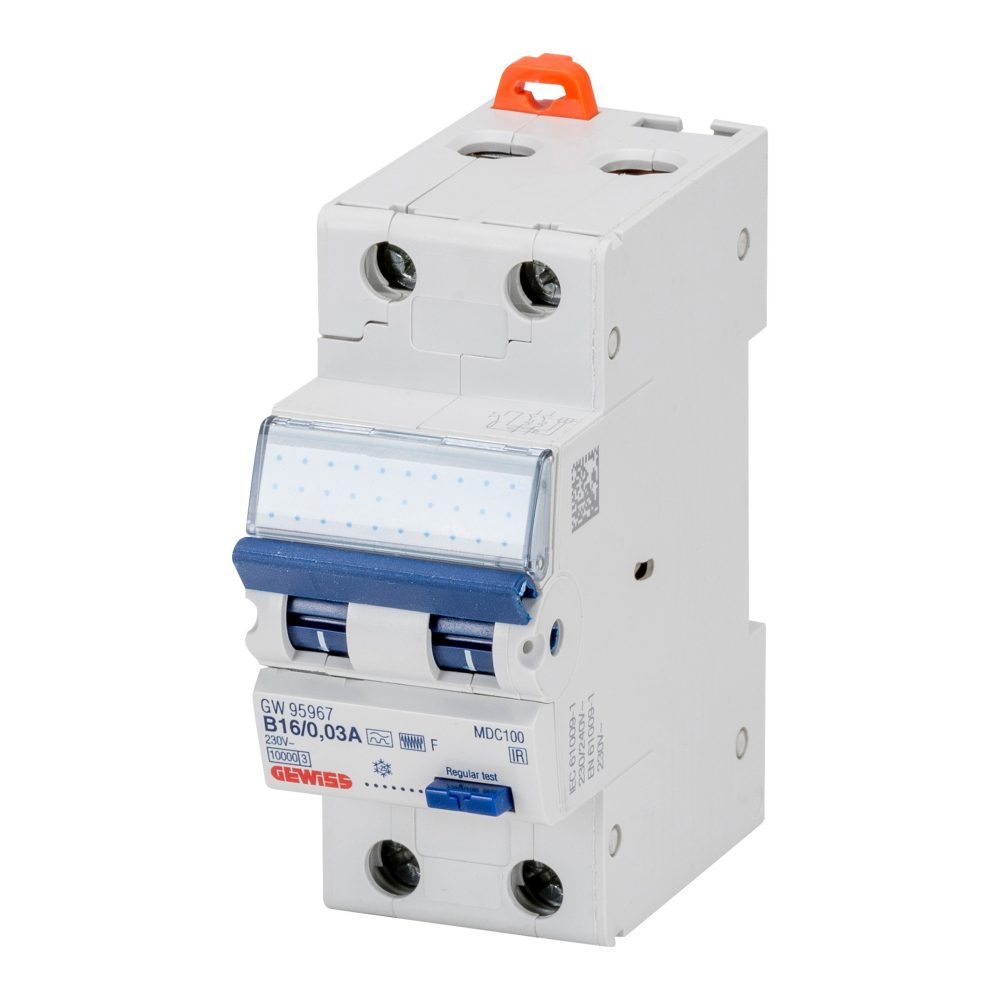

RCCB WITH OVERCURRENT PROTECTION
Code
MDC 100
No. of poles
2P
No. modules
2
Rated current
13 A
Rated residual operating current
30 mA
Type
F
Curve
B
Rated voltage (IEC/EN 61009-1, 61009-2-1)
230/240 V
Energy limiting class
3
Standard
IEC/EN 61009-1, IEC/EN 61009-2-1, IEC/EN 62423
Rated frequency (Hz)
50/60 Hz
Breaking capacity IEC/EN 61009-1 230V (Icn)
10000 A
Breaking capacity IEC/EN 61009-1 (Ics)
0.75 x Icn
Breaking capacity IEC/EN 60947-2 230V (Icu)
15 kA
Breaking capacity IEC/EN 60947-2 (Ics)
50% Icu
Insulation voltage (Ui)
500 V
Level of immunity (8/20 μs)
3000 A
Rated impulse withstand voltage (Uimp)
4 kV
Overvoltage category
III
Electrical endurance
10.000
Mechanical endurance
20.000
Section rigid cable
<=1x35 - <=2x16 - <=1x16+2x10 mm²
Section flexible cable
<=1x35 - <=2x16 - <=1x16+2x10 mm²
Double connection
YES (only down stream)
Rated tightening torque
2 Nm
Operating temperature
-25 +60° C (derating of In with T>30° C)
Stocking temperature
-40°C ÷ +70°C
Auxiliaries compatibility
Yes
ReStart compatibility
Yes
Assembly position
Any
Ware Number
85362010
