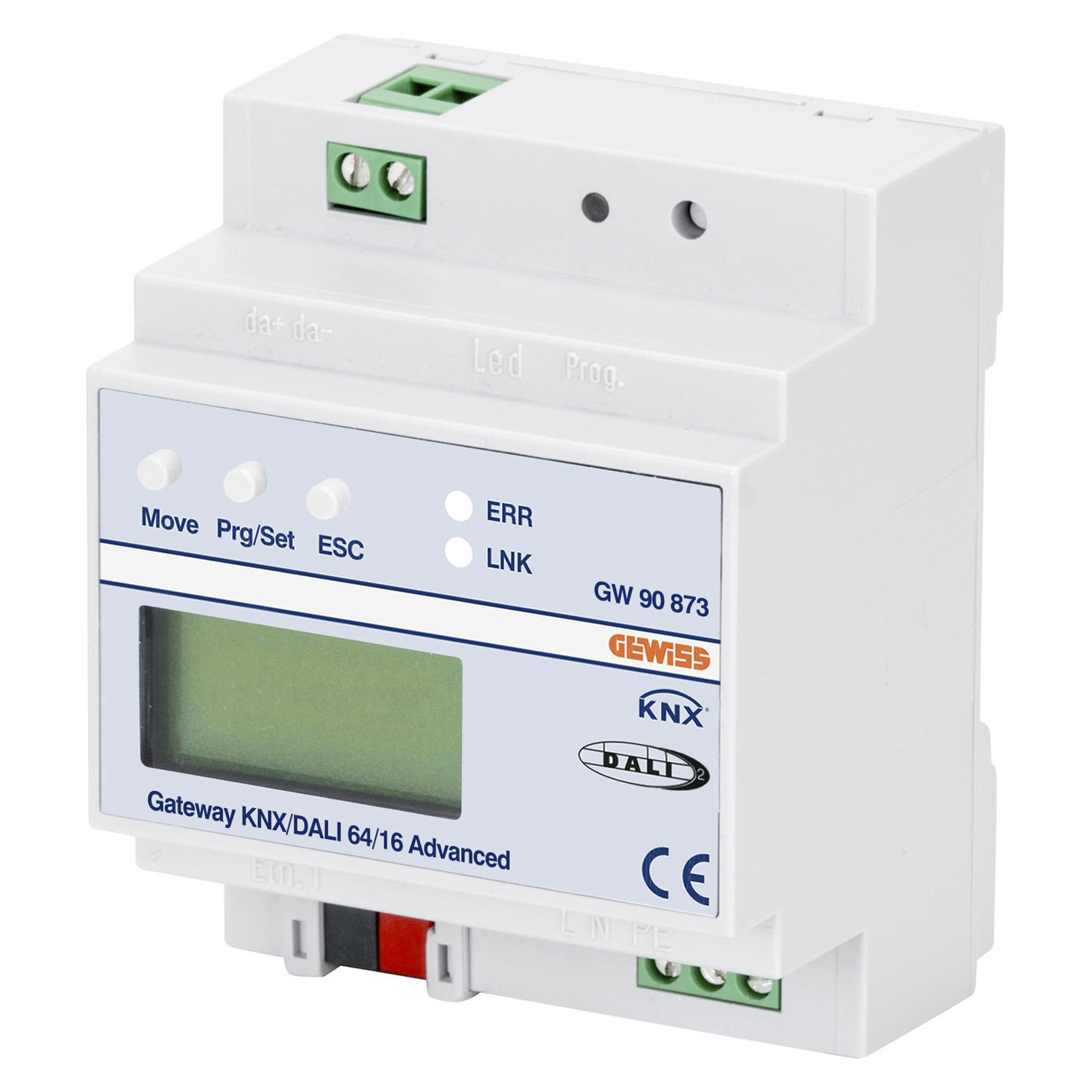

GATEWAY KNX/DALI2 ADVANCED - MULTIMASTER 64/16 - IP20 - 4 MODULES - DIN RAIL MOUNTING
Code:
GW90873
Range: Home&Building Pro
Home & Building PRO system
Home & Building PRO system
Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential solutions and small-to-medium offices. The offer is highly customisable, complete with all functions and can be integrated with third-party devices and systems (video intercom, smart locks, entertainment). It can be controlled via the APP, voice assistants or touch panels. With Home and Building PRO, you can also manage ZigBee devices and communicate with the Google Home IoT platforms, Amazon Alexa and IFTTT.
IP20
Technical Info
Information
Download
Software
Certificates
Comunication
KNX
Power supply
Da 100 a 240V ac/dc, 50/60Hz; Bus KNX 29 V dc SELV via bus
Interfaces
KNX TP1/Ethernet
Wiring terminals
With screw
Terminal tightening capacity stranded cables (mm²)
Max. 2,5
Connection to the KNX bus
KNX bus terminal
Working temperature
-5 ÷ +45 °C
Stocking temperature
-25 ÷ +55 °C
IP degree
IP20
Relative humidity (non-condensative)
Max 93%
Standard
Low Voltage Directive 2014/35/EU (LVD); Electromagnetic Compatibility Directive 2014/30/EU (EMC);_x000D_ RoHS Directive 2004/108/EC + 2011/65/EC;_x000D_ DIIA compliant with EN 62386-101 ed 2 and EN 62386-103 ed 2
Description
Advanced KNX\\DALI2 gateway
No. DIN modules
4
Max no. DALI devices
64 lighting fixtures
Max no. DALI units
16
Ethernet
RJ45 socket; Type: 100BaseT (100Mbit/s); IP address: fixed or via DHCP server
Dispersible max power (W)
8 W
Ware Number
85389099
EQUIPMENT AND NOTES
CHARACTERISTICS: gateway capable of controlling up to 64 lamps managed with the DALI protocol via a KNX bus. In addition, up to 8 DALI motion detectors or DALI light sensors can be connected. The device supports DALI2 with multimaster operation in accordance with EN 62386-103 ed. 2. The power required for the connected DALI lamps and sensors is supplied directly by the device and no additional DALI power supplies are required.
The device supports KNX Secure and is configured via ETS software.
The device has an RJ45 LAN port for configuration and/or IP access. Category 1 equipment (in accordance with EN 62386-103).
APPLICATIONS: the device also enables the control of emergency lamps (with Data Type DT1) and lamps with colour control (with Data Type DT8).
NOTES: equipped with a coupling terminal for bus connection.
Contact the GEWISS sales department for the availability date.
The device supports KNX Secure and is configured via ETS software.
The device has an RJ45 LAN port for configuration and/or IP access. Category 1 equipment (in accordance with EN 62386-103).
APPLICATIONS: the device also enables the control of emergency lamps (with Data Type DT1) and lamps with colour control (with Data Type DT8).
NOTES: equipped with a coupling terminal for bus connection.
Contact the GEWISS sales department for the availability date.
