CHORUS - Domestic range Ivory modular devices

CHORUS - Domestic range Ivory modular devices

The Chorus modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements.
Colours and finishes: glossy ivory, bright and versatile.
Unlimited functions in reduced spaces: the Chorus range consists of button keys with ½, 1, 2 and 3 modules to optimise space as needed.
Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support.

Command - Ivory version

Command devices - screw terminals

One-way switches 1P - 250V ac
One-way switches 1P - 250V ac
Gewiss-code
No. Chorus modules
Description
Button key
Rated power of 230V LED lamps

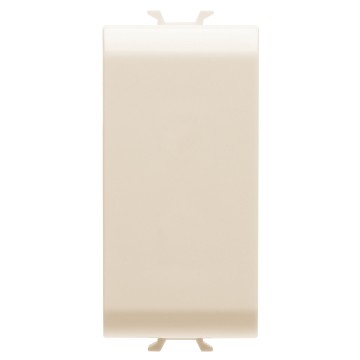

Gewiss-code GW11001
No. Chorus modules 1
Description 1P - 16AX
Button key Neutral
Rated power of 230V LED lamps 200 W
Ga
Gewiss-code GW11002
No. Chorus modules 1
Description 1P - 16AX illuminable
Button key With diffuser
Rated power of 230V LED lamps 200 W
Ga
Gewiss-code GW11003
No. Chorus modules 1
Description 1P - 16AX illuminable
Button key With replaceable neutral lens
Rated power of 230V LED lamps 200 W
Ga
Gewiss-code GW11031
No. Chorus modules 2
Description 1P - 16AX
Button key Neutral
Rated power of 230V LED lamps 200 W
Ga
Gewiss-code GW11032
No. Chorus modules 2
Description 1P - 16AX illuminable
Button key With diffuser
Rated power of 230V LED lamps 200 W
Ga
Gewiss-code GW11033
No. Chorus modules 2
Description 1P - 16AX illuminable
Button key With replaceable neutral lens
Rated power of 230V LED lamps 200 W
Ga
UITRUSTING EN OPMERKINGEN
One-way switches 2P - 250V ac
One-way switches 2P - 250V ac
Gewiss-code
No. Chorus modules
Description
Button key
Symbol
Rated power of 230V LED lamps

Gewiss-code GW11004
No. Chorus modules 1
Description 2P - 16 AX
Button key Neutral
Symbol 0/1
Rated power of 230V LED lamps 200 W
Ga
UITRUSTING EN OPMERKINGEN
Two-way switches 1P - 250V ac
Two-way switches 1P - 250V ac
Gewiss-code
No. Chorus modules
Description
Button key
Rated power of 230V LED lamps

Gewiss-code GW11051
No. Chorus modules 1
Description 1P - 16AX
Button key Neutral
Rated power of 230V LED lamps 200 W
Ga
Gewiss-code GW11052
No. Chorus modules 1
Description 1P - 16AX illuminable
Button key With diffuser
Rated power of 230V LED lamps 200 W
Ga
Gewiss-code GW11053
No. Chorus modules 1
Description 1P - 16AX illuminable
Button key With replaceable neutral lens
Rated power of 230V LED lamps 200 W
Ga
Gewiss-code GW11071
No. Chorus modules 2
Description 1P - 16AX
Button key Neutral
Rated power of 230V LED lamps 200 W
Ga
Gewiss-code GW11072
No. Chorus modules 2
Description 1P - 16AX illuminable
Button key With diffuser
Rated power of 230V LED lamps 200 W
Ga
Gewiss-code GW11073
No. Chorus modules 2
Description 1P - 16AX illuminable
Button key With replaceable neutral lens
Rated power of 230V LED lamps 200 W
Ga
UITRUSTING EN OPMERKINGEN
Three-way switches 1P - 250V ac
Three-way switches 1P - 250V ac
Gewiss-code
No. Chorus modules
Description
Button key
Symbol
Rated power of 230V LED lamps

Gewiss-code GW11121
No. Chorus modules 1
Description 1P - 10AX
Button key Neutral
Symbol UP - DOWN
Rated power of 230V LED lamps 100 W
Ga
Gewiss-code GW11123
No. Chorus modules 2
Description 1P - 10AX
Button key Neutral
Symbol UP - DOWN
Rated power of 230V LED lamps 100 W
Ga
UITRUSTING EN OPMERKINGEN
Push-buttons 1P - 250V ac
Push-buttons 1P - 250V ac
Gewiss-code
No. Chorus modules
Description
Button key
Symbol

Gewiss-code GW11131
No. Chorus modules 1
Description 1P NO - 16A
Button key Neutral
Symbol -
Ga
Gewiss-code GW11132
No. Chorus modules 1
Description 1P NO - 16A illuminable
Button key With diffuser
Symbol -
Ga
Gewiss-code GW11133
No. Chorus modules 1
Description 1P NO - 16A illuminable
Button key With replaceable neutral lens
Symbol -
Ga
Gewiss-code GW11136
No. Chorus modules 1
Description 1P NO - 16A
Button key Pull-cord
Symbol -
Ga
Gewiss-code GW11140
No. Chorus modules 1
Description 1P NO+NO - 10A
Button key With interlock
Symbol UP - DOWN
Ga
Gewiss-code GW11153
No. Chorus modules 1
Description 1P NO - 16A illuminable
Button key With replaceable neutral lens
Symbol Bell
Ga
Gewiss-code GW11171
No. Chorus modules 2
Description 1P NO - 16A
Button key Neutral
Symbol -
Ga
Gewiss-code GW11172
No. Chorus modules 2
Description 1P NO - 16A illuminable
Button key With diffuser
Symbol -
Ga
Gewiss-code GW11173
No. Chorus modules 2
Description 1P NO - 16A illuminable
Button key With replaceable neutral lens
Symbol -
Ga
ALLES ZIEN
UITRUSTING EN OPMERKINGEN

Lenses with illuminated symbol

Symbols for illuminable command devices
Symbols for illuminable command devices
Gewiss-code
Suitable for
Symbol

Gewiss-code GW10501
Suitable for General services
Symbol Neutral
Ga
Gewiss-code GW10502
Suitable for General services
Symbol Light
Ga
Gewiss-code GW10503
Suitable for General services
Symbol Stair light
Ga
Gewiss-code GW10504
Suitable for General services
Symbol Table light
Ga
Gewiss-code GW10505
Suitable for General services
Symbol Bell
Ga
Gewiss-code GW10506
Suitable for General services
Symbol Fan
Ga
Gewiss-code GW10507
Suitable for General services
Symbol Key
Ga
Gewiss-code GW10508
Suitable for General services
Symbol Alarm
Ga
Gewiss-code GW10509
Suitable for General services
Symbol ON
Ga
Gewiss-code GW10510
Suitable for General services
Symbol OFF
Ga
Gewiss-code GW10511
Suitable for General services
Symbol Nurse
Ga
Gewiss-code GW10512
Suitable for General services
Symbol Waitress
Ga
Gewiss-code GW10513
Suitable for General services
Symbol Dimmer increase
Ga
Gewiss-code GW10514
Suitable for General services
Symbol Dimmer decrease
Ga
Gewiss-code GW10515
Suitable for General services
Symbol UP arrow
Ga
Gewiss-code GW10516
Suitable for General services
Symbol DOWN arrow
Ga
Gewiss-code GW10517
Suitable for General services
Symbol UP - DOWN arrow
Ga
Gewiss-code GW10518
Suitable for General services
Symbol RIGHT - LEFT arrow
Ga
Gewiss-code GW10531
Suitable for Numerical services
Symbol One
Ga
Gewiss-code GW10532
Suitable for Numerical services
Symbol Two
Ga
Gewiss-code GW10533
Suitable for Numerical services
Symbol Three
Ga
Gewiss-code GW10534
Suitable for Numerical services
Symbol Four
Ga
Gewiss-code GW10535
Suitable for Numerical services
Symbol Five
Ga
Gewiss-code GW10536
Suitable for Numerical services
Symbol Six
Ga
Gewiss-code GW10537
Suitable for Numerical services
Symbol Seven
Ga
Gewiss-code GW10538
Suitable for Numerical services
Symbol Eight
Ga
Gewiss-code GW10539
Suitable for Numerical services
Symbol Nine
Ga
Gewiss-code GW10540
Suitable for Numerical services
Symbol Zero
Ga
ALLES ZIEN
UITRUSTING EN OPMERKINGEN

Badge switch

Badge switch
Badge switch
Gewiss-code
Description
For badge card max. width
Rated power of 230V LED lamps
No. Chorus modules

Gewiss-code GW11039
Description 1P NA - 16 AX illuminable
For badge card max. width 54 mm
Rated power of 230V LED lamps 200 W
No. Chorus modules 2
Ga
UITRUSTING EN OPMERKINGEN

Blanking modules and cable outlet

Cable outlet
Cable outlet
Gewiss-code
Description
No. Chorus modules

Gewiss-code GW11196
Description 1 gang
No. Chorus modules 1
Ga
UITRUSTING EN OPMERKINGEN

Power - Ivory version

Socket-outlets - Italian/German standard

Italian standard socket-outlets - 250V ac
Italian standard socket-outlets - 250V ac
Gewiss-code
Description
Socket-out type
For plug pins
No. Chorus modules

Gewiss-code GW11203
Description 2P+E - 16 A Dual amperage
Socket-out type P11-P17
For plug pins Ø 4 / 5 mm
No. Chorus modules 1
Ga
UITRUSTING EN OPMERKINGEN

Socket-outlets - German Standard

German Standard socket-outlet - 250V ac
German Standard socket-outlet - 250V ac
Gewiss-code
Description
For plug pins
No. Chorus modules

Gewiss-code GW11241
Description 2P+E - 16A
For plug pins Ø 4.8 mm
No. Chorus modules 2
Ga
UITRUSTING EN OPMERKINGEN
German Standard socket-outlet with lid IP40 - 250V ac
German Standard socket-outlet with lid IP40 - 250V ac
Gewiss-code
Description
For plug pins
No. Chorus modules

Gewiss-code GW11242
Description 2P+E - 16A
For plug pins Ø 4.8 mm
No. Chorus modules 2
Ga
UITRUSTING EN OPMERKINGEN

Socket-outlets - French Standard

Socket-outlets - international standard

Shaver socket-outlet

Euro-American Standard shaver socket-outlet with insulation transformer
Euro-American Standard shaver socket-outlet with insulation transformer
Gewiss-code
Supply voltage
For plug pins
Selectable output voltage
Maximum power
No. Chorus modules

Gewiss-code GW11331
Supply voltage 230 V ac - 50/60 Hz
For plug pins Ø 4 / 5 - 6.3x1.5 mm
Selectable output voltage 120-230V ac
Maximum power 20 VA
No. Chorus modules 3
Ga
UITRUSTING EN OPMERKINGEN

Data - Ivory version

TV-SAT sockets

Coaxial TV sockets (5-2400 MHz), class A shielding - male IEC connector Ø 9.5 mm
Coaxial TV sockets (5-2400 MHz), class A shielding - male IEC connector Ø 9.5 mm
Gewiss-code
Description
Attenuation
No. Chorus modules

Gewiss-code GW11361
Description Direct
Attenuation 0 dB
No. Chorus modules 1
Ga
UITRUSTING EN OPMERKINGEN
Coaxial TV-SAT sockets (5-2400 MHz) class A shielding - female F connector
Coaxial TV-SAT sockets (5-2400 MHz) class A shielding - female F connector
Gewiss-code
Description
Attenuation
No. Chorus modules

Gewiss-code GW11371
Description Direct
Attenuation 0 dB
No. Chorus modules 1
Ga
UITRUSTING EN OPMERKINGEN
TV-FM-SAT sockets
TV-FM-SAT sockets
Gewiss-code
Connectors
Description
Attenuation
No. Chorus modules

Gewiss-code GW11381
Connectors TV-FM
Description Direct
Attenuation 0 dB
No. Chorus modules 2
Ga
Gewiss-code GW11382
Connectors TV-FM-SAT
Description Direct
Attenuation 0 dB
No. Chorus modules 2
Ga
Gewiss-code GW11383
Connectors TV-SAT
Description Direct
Attenuation 0 dB
No. Chorus modules 2
Ga
UITRUSTING EN OPMERKINGEN

Telephone sockets

RJ11 telephone sockets
RJ11 telephone sockets
Gewiss-code
Description
Connection
No. Chorus modules

Gewiss-code GW11401
Description RJ11
Connection Screw-on terminals
No. Chorus modules 1
Ga
UITRUSTING EN OPMERKINGEN

Data sockets

Adapter for housing data connectors
Adapter for housing data connectors
Gewiss-code
Compatibility
No. Chorus modules

Gewiss-code GW11431
Compatibility AMP / Keystone Jack
No. Chorus modules 1
Ga
UITRUSTING EN OPMERKINGEN

Adapters for optical fiber

Angled SC/APC adapter
Angled SC/APC adapter
Gewiss-code
Type
Tilt
For connectors
Compatibility
Colour

Gewiss-code GW38335
Type Female/Female
Tilt 40°
For connectors SC/APC
Compatibility Keystone Jack
Colour Green RAL 6018
Ga
UITRUSTING EN OPMERKINGEN

USB and HDMI couplers

USB Charger

USB Charger
USB Charger
Gewiss-code
Supply voltage
Output voltage
Max current supplied
No. Chorus modules

Gewiss-code GW11450
Supply voltage 100/240 V ac - 50/60 Hz
Output voltage 5V dc
Max current supplied 2,1 A
No. Chorus modules 1
Ga
UITRUSTING EN OPMERKINGEN

Indicator - Ivory version

Indicator light devices

Single indicator lamps - 1 module
Single indicator lamps - 1 module
Gewiss-code
Diffuser colour
Colour meaning
No. Chorus modules

Gewiss-code GW11622
Diffuser colour Green
Colour meaning Safety
No. Chorus modules 1
Ga
Gewiss-code GW11623
Diffuser colour Red
Colour meaning Danger
No. Chorus modules 1
Ga
UITRUSTING EN OPMERKINGEN
Double indicator lamps - 1 module
Double indicator lamps - 1 module
Gewiss-code
Diffuser colour
No. Chorus modules

Gewiss-code GW11629
Diffuser colour Red/green
No. Chorus modules 1
Ga
UITRUSTING EN OPMERKINGEN

Anti black-out and emergency lamps

Anti black-out lamp
Anti black-out lamp
Gewiss-code
Supply voltage
Power supply batteries
Minimum autonomy
Lamp
No. Chorus modules

Gewiss-code GW11662
Supply voltage 230 V ac - 50/60 Hz
Power supply batteries Ni - Mh
Minimum autonomy 1 h
Lamp LED
No. Chorus modules 1
Ga
UITRUSTING EN OPMERKINGEN

Acoustic signalling devices

Ringers
Ringers
Gewiss-code
Supply voltage
Max power consumption
Sound intensity
No. Chorus modules

Gewiss-code GW11602
Supply voltage 230V ac - 50 Hz
Max power consumption 8 VA
Sound intensity 80 dB (at 1 m)
No. Chorus modules 1
Ga
UITRUSTING EN OPMERKINGEN
Buzzers
Buzzers
Gewiss-code
Supply voltage
Max power consumption
Sound intensity
No. Chorus modules

Gewiss-code GW11607
Supply voltage 230V ac - 50 Hz
Max power consumption 8 VA
Sound intensity 70 dB (at 1 m)
No. Chorus modules 1
Ga
UITRUSTING EN OPMERKINGEN

Energy management, climate and comfort - Ivory version

Temperature control devices

Thermostat
Thermostat
Gewiss-code
Supply voltage
Temperature adjustment
Output contacts
No. Chorus modules

Gewiss-code GW11705
Supply voltage 230 V ac - 50/60 Hz
Temperature adjustment From +5°C to +35°C
Output contacts 1NO / NC 8A(AC1) 250V ac
No. Chorus modules 2
Ga
UITRUSTING EN OPMERKINGEN

Dimmer

Universal rotating electronic regulator
Universal rotating electronic regulator
Gewiss-code
Supply voltage
No. Chorus modules

Gewiss-code GW11566
Supply voltage 230V ac - 50Hz
No. Chorus modules 1
Ga
UITRUSTING EN OPMERKINGEN
Rotating electronic regulators for resistive/inductive loads
Rotating electronic regulators for resistive/inductive loads
Gewiss-code
Supply voltage
Resistive load 230V ac
Inductive load 230V ac
No. Chorus modules

Gewiss-code GW11564
Supply voltage 230 V ac - 50/60 Hz
Resistive load 230V ac 100 - 900 W
Inductive load 230V ac 40 - 300 VA
No. Chorus modules 1
Ga
Gewiss-code GW11567
Supply voltage 230 V ac - 50/60 Hz
Resistive load 230V ac 100 - 500 W
Inductive load 230V ac 100 - 500 VA
No. Chorus modules 1
Ga
UITRUSTING EN OPMERKINGEN
Universal electronic regulator with push-button
Universal electronic regulator with push-button
Gewiss-code
Supply voltage
No. Chorus modules

Gewiss-code GW11573A
Supply voltage 230 V ac - 50/60 Hz
No. Chorus modules 2
Ga
UITRUSTING EN OPMERKINGEN

Accessories

Signalling unit

LED signalling units - 12-24 V AC/DC - 0.6 W
LED signalling units - 12-24 V AC/DC - 0.6 W
Gewiss-code
Lamp voltage
Lamp power
Lamp
Light emitted
Cable Colour

Gewiss-code GW10894
Lamp voltage 12-24V ac/dc
Lamp power 0.6 W
Lamp LED
Light emitted White
Cable Colour White
Ga
UITRUSTING EN OPMERKINGEN
Profiling
Uw oplossingen op maat
PRODUCTEN EN OPLOSSINGEN VOOR AL UW BEHOEFTEN
of
Registreer nu
Fout bij sturen van verzoek.
Probeer later opnieuw!
Dank u!
Uw aanvraag is met succes verstuurd
