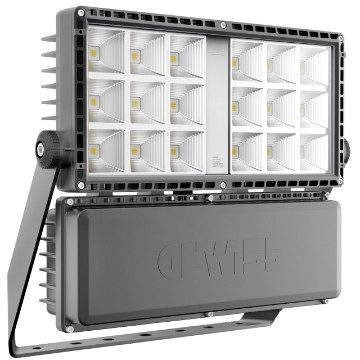

SMART [PRO] 2.0 - 2 MODULES - DIMMABLE DALI - CIRCULAR C3 - 4000K (CRI 70) - IP66 - PROTECTION CLASS II
Code:
GWP2274HB
Range: SMART [PRO] 2.0
Medium and high power LED floodlight devices
Smart [PRO] 2.0 is the range of LED floodlights specifically dedicated for professional sport plants and large outdoor areas. Thanks to the new CSP high power LED source, Smart [PRO] 2.0 can provide better lighting performance, simplified installation, reduce maintenance costs and improve the energy saving both in simple and complex systems.
0,170 m2
IP66
IK08
-
Technical Info
Information
Download
Software
Video
Certificates
GENERAL INFORMATION
-
OPTIC AND ILLUMINATING FEATURES
-
Context
Sport, Big Areas
Optic

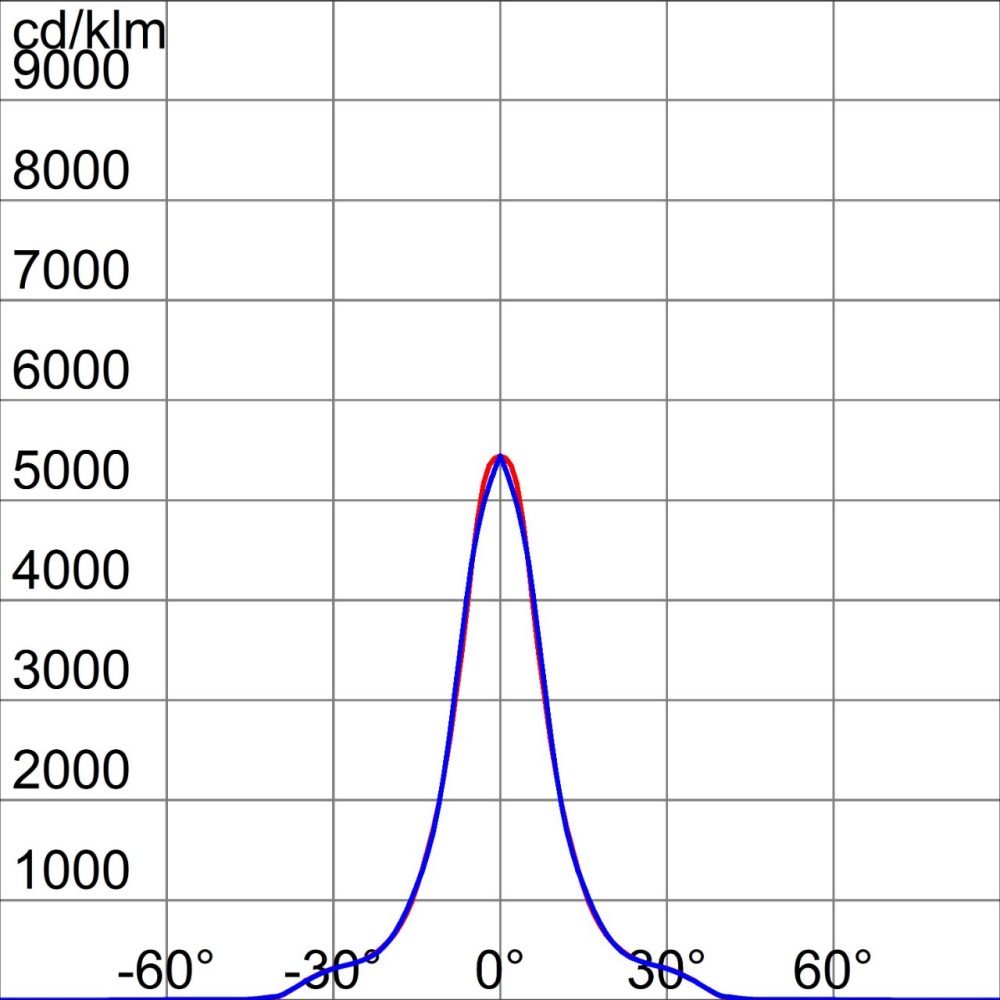

C3 - Circular 20°
Luminaire
LED luminaire with small,mid and high lumen power
Unified Glare Rating
G*6 - ULOR = 0
Application
Indoor / Outdoor
Lumen output (lm)
40900
Unique digital code
(Datamatrix)
Currently not present
Efficacy
(lm/W) 124
(lm/W) 124
Colour
Graphite grey
Colour temperature
4000 K
Type of light source
LED
Colour Rendering Index
CRI>70
System power
330 W
Standard Deviation Colour Matching
SDCM = 5
LED Lifetime
L90B10(Tq25°C)=40.000h; L80B10(Tq25°C)=90.000h
Photobiological Risk Class
-
Weight (kg)
13
Standard
EN60598-1; EN60598-2-5; IEC 62778; IEC 62471; EN13201
Warranty
5 years
ELETRICAL AND LIGHTING FEATURES
-
Stocking temperature
-
Supply voltage
220 - 240 V
Operating temperature
-30 +50 °C
Rated frequency (Hz)
50 / 60
MATERIALS
-
Driver
Included
Body
Die-cast aluminium -
Driver failure rate
F10 = 100.000h Tq25°C
Shield type
Flat tempered glass 4mm
Overvoltage protection
DM 6 kV / CM 10 kV
Optic
Polished quartz and metallized PC HT reflector
Control System
DALI
Gasket
Anti-aging silicone
INSTALLATION AND MAINTENANCE
-
Locking Hook
Hexagonal metric screws
Mounting and installation
High-mast lighting - Wall mounting - Ground mouting
External screw
Stainless steel
Tilt
Rotation on bracket with integrated goniometer
Colour
Polyester powder coated
Wiring
Watertight connector
STANDARDS AND APPROVALS
-
Fixing
Bracket
Classification
-
Light souce replaceability
By professional
Device with reduced surface temperature
No
Controlgear replaceability
By professional
DIN 18032-3 certification
Available
Driver Box
Built-in
IPEA
-
Maximum surface exposed to the wind
0,170 m2
Insulation class
II
-
-
IP degree
IP66
-
-
Mechanical resistance
IK08
-
-
Glow Wire Test
-
-
-
Ware Number
94054210
EQUIPMENT AND NOTES
NOTE: Versions complete of driver. Voltage current 220-240V 50/60Hz.
Technical data may change due to the continuous evolution of LED technology.
The nominal flux is referred to Tj=85°C.
Technical data may change due to the continuous evolution of LED technology.
The nominal flux is referred to Tj=85°C.
