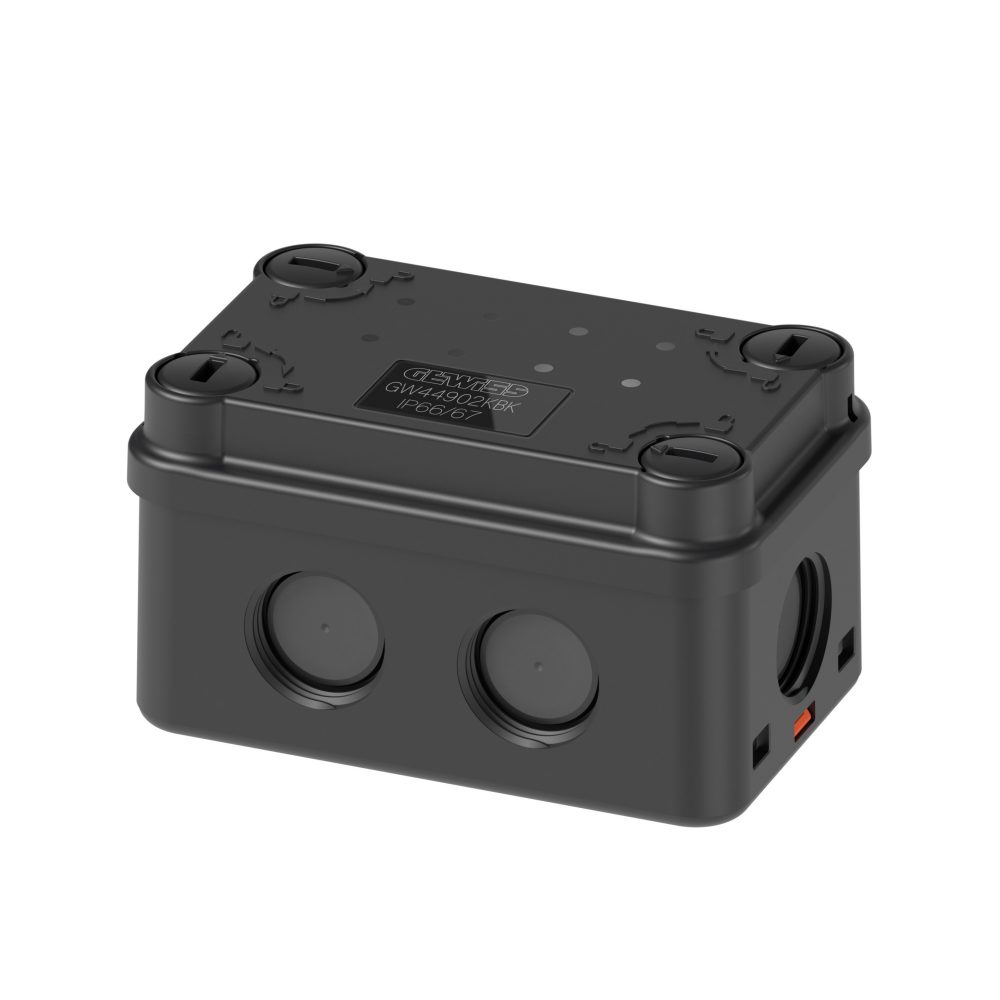

JUNCTION BOX - 1/4 TURN SCREWS - IP66/IP67 - INTERNAL DIMENSIONS 81X49X46 - THREADED MEMBRANE ENTRIES - RAL 9005 - UV - HF - FIXING BRACKET INCL.
Code:
GW44902KBK
Range: 44 CE Range
Technopolymer surface-mounting watertight junction boxes
Technopolymer surface-mounting watertight junction boxes
The 44 CE junction boxes range consists of 3 families made of different technopolymers (two of which are Halogen Free) and available in 11 sizes with an ordinary or high-capacity base, high or low lids, blank or transparent lids, smooth walls or with quick-entry cable glands.
IP66 (membrane) / IP67 (cable gland)
750 °C (case), 650 °C (membrane)
85 °C
Technical Info
Information
Download
GENERAL INFORMATION
-
MECHANICAL AND FUNCTIONAL CHARACTERISTICS
-
Accordance with Standards
IEC 60670-1, IEC 60670-22
Lid screws (no. and type)
4 x 1/4 turn, captive, sealable
Application
Ordinary junctions
Captive lid
Yes
Internal dimensions BxDxH (mm)
81x49x46
Operating temperature
-25 +60 °C
External dimensions BxDxH (mm)
88x57x51
IP degree
IP66 (membrane) / IP67 (cable gland)
Material
PP + GF (case), TPE (membrane), PA + GF (bracket)
Glow wire test
750 °C (case), 650 °C (membrane)
Colour
Black RAL 9005
Thermo-pressure with ball
85 °C
Lid
Low screwed
UV resistance
Yes (IEC 60670-22)
Type of bottom
Standard
Halogen Free
Halogen-free in compliance with EN IEC 63355
Walls
With threaded entries and membrane
Cable entries on sides
6 x M20x1,5 threaded entries with Ø 3÷12 mm membrane
-
-
Cable entries on back
2 x Ø 3÷10 mm membrane entries
-
-
-
-
ELECTRICAL CHARACTERISTICS
-
EQUIPMENT AND ACCESSORIES
-
Insulation class
II (according to IEC 61140 standards)
Accessories supplied
Fixing bracket
AC Rated operational voltage (Ue)
750 V
Completeable with
GW44622 (double insulation caps), GW44742 (earthing clamp)
Insulation voltage (Ui)
750 V
Ware Number
85381000
EQUIPMENT AND NOTES
NOTES: To restore the double insulation and original IP degree of protection of the boxes, use the isolating screwcaps GW44622.
CHARACTERISTICS: IP66 is achieved by inserting the cable through the membrane. IP67 is achieved by inserting the cable through a cable gland.
Case GWT 750 °, membrane GWT 650°C.
Side membranes cable Ø 3 ÷ 12 mm.
Bottom membranes cable Ø 3 ÷ 12 mm, exept for 81x49x46 mm: cable Ø 3 ÷ 10 mm.
Size 100x100x52 feature M6 threaded fixing point on the bottom of the box, to be used with fixing dowel DX51308.
Size 81x81x46 and 100x100x15 are suitable to install terminal support GW44741.
All boxes features 4 eyelets BxH = 6x4 mm for cable trays, pole or temporary installation with cable ties.
CHARACTERISTICS: IP66 is achieved by inserting the cable through the membrane. IP67 is achieved by inserting the cable through a cable gland.
Case GWT 750 °, membrane GWT 650°C.
Side membranes cable Ø 3 ÷ 12 mm.
Bottom membranes cable Ø 3 ÷ 12 mm, exept for 81x49x46 mm: cable Ø 3 ÷ 10 mm.
Size 100x100x52 feature M6 threaded fixing point on the bottom of the box, to be used with fixing dowel DX51308.
Size 81x81x46 and 100x100x15 are suitable to install terminal support GW44741.
All boxes features 4 eyelets BxH = 6x4 mm for cable trays, pole or temporary installation with cable ties.
