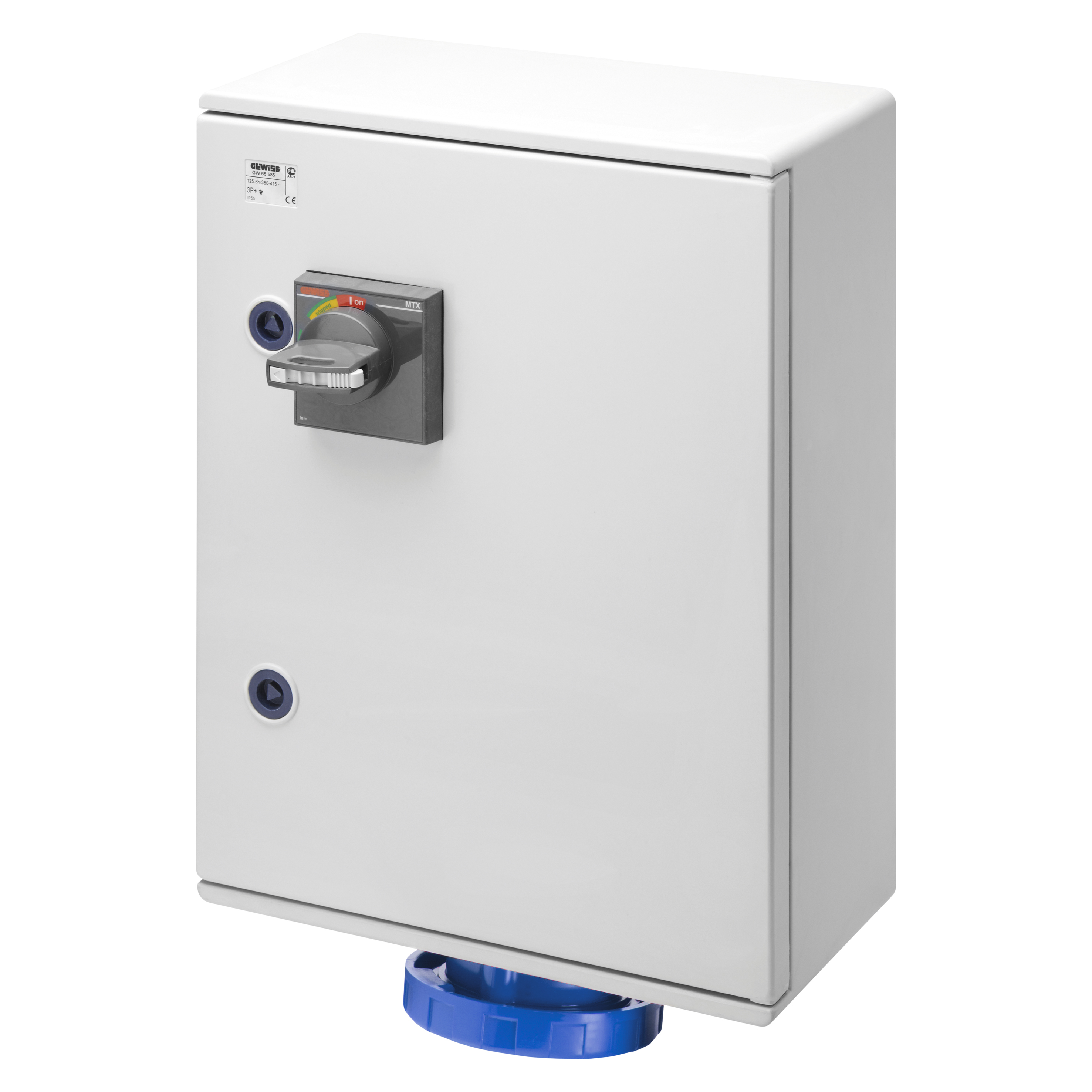

FIXED VERTICAL SOCKET OUTLET - SURFACE MOUNTING - MINIATURE CIRCUITE BREAKER DIFFERENTIAL - 3P+N+E 125A 230V 9H - IP66
Code:
GW66594
Range: IB Range
Interlocked socket-outlets IEC 309 standard
Interlocked socket-outlets IEC 309 standard
System of industrial socket-outlets for power distribution in the industrial and commercial sector, equipped with locking device, enabling the most varied professional requirements of installers and panel builder to be met. The IB range is composed of 4 product lines: IP67 standard vertical socket-outlets, IP66 vertical socket-outlets for heavy duty applications, IP44 horizontal socket-outlets and IP44 and IP55 compact socket-outlets.
200 °C
IP66
IK10
850 °C (Socket) - 960 °C (Case)
Technical Info
Information
Download
Software
Certificates
Related products
Gewiss Code
Rated current InA (A)
No. of poles
Rated voltage
Colour
Reference h
EQUIPMENT AND NOTES
CHARACTERISTICS: residual current circuit breaker In= 125A, class A, Sensitivity= adjustable 30-3,000mA instantaneous and selective, Insulating voltage Ui= 690V.
Terminal capacity: flexible cables: 2.5-50 mm², rigid cables: 2.5-70 mm².
125A versions equipped with 1 NO clean contact.
Terminal capacity: flexible cables: 2.5-50 mm², rigid cables: 2.5-70 mm².
125A versions equipped with 1 NO clean contact.
