44 CE Range
Technopolymer surface-mounting watertight junction boxes

The 44 CE junction boxes range consists of 3 families made of different technopolymers (two of which are Halogen Free) and available in 11 sizes with an ordinary or high-capacity base, high or low lids, blank or transparent lids, smooth walls or with quick-entry cable glands.

Benefits
44 CE APTA, adaptable by definition
44 ce apta, adaptable by definition
Designed for professionals, 44 CE APTA delivers precision, reliability, and ease across everyday and critical electrical installations. From versatile fixing systems and intuitive cable entries to our patented earthing system for armoured cables, every feature is engineered to make installations smarter, faster, and stress-free.
Threaded membrane cable entries
threaded membrane cable entries
44 CE APTA feature M20 threaded entry for direct IP67 gland installation and membrane entries for fast IP66 installation (3-12 mm cables), quick and reliable even after weathering. All three sizes feature also IP-safe rear entries for clean, compliant routing.
Six methods of installation
six methods of installation
44 CE APTA offer six fixing methods for maximum installation flexibility. The methods include: external screw fixing (bracket included), internal screw fixing, knock-in fixing (threaded base), panel mounting, fixing with cable ties for trays or temporary structures, and the patented nail gun fixing system.
Accessories that elevate your system
accessories that elevate your system
Our accessories enhance installation speed, safety, and reliability. They include, among others, terminal supports compatible with Wago 221-412, 221-413, and 221-415, as well as the patent-pending Earthing Clamp for brass cable glands used with armoured cables.

The products of this series

132 products

Surface-mounting boxes in PP+GF - for ordinary junctions

Walls with threaded membrane entries - IP66/IP67

Category
Junction boxes with plain quick fixing lid - IP66/IP67

Change category

Junction boxes with plain quick fixing lid - IP66/IP67
Cod Gewiss
Internal dim. LxHxD (mm)
Entries No. holes / Ø
Colour
Lid screws (no. and type)
NEW

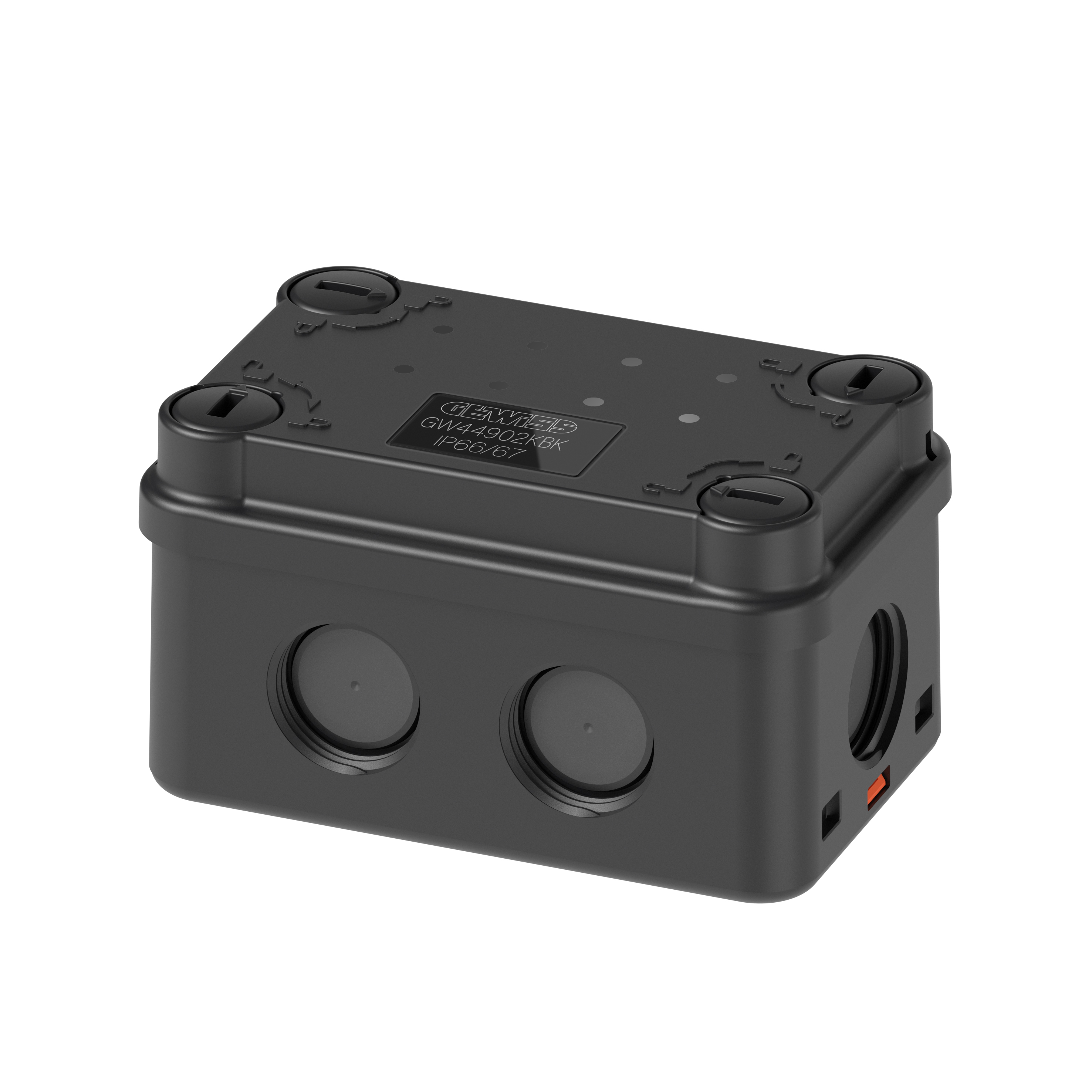

junction box - 1/4 turn screws - ip66/ip67 - internal dimensions 81x49x46 - threaded membrane entries - ral 9005 - uv - hf - fixing bracket incl.
GW44902KBK
81x49x46
6 / M20x1,5
Black RAL 9005
4 x 1/4 turn, captive, sealable
NEW

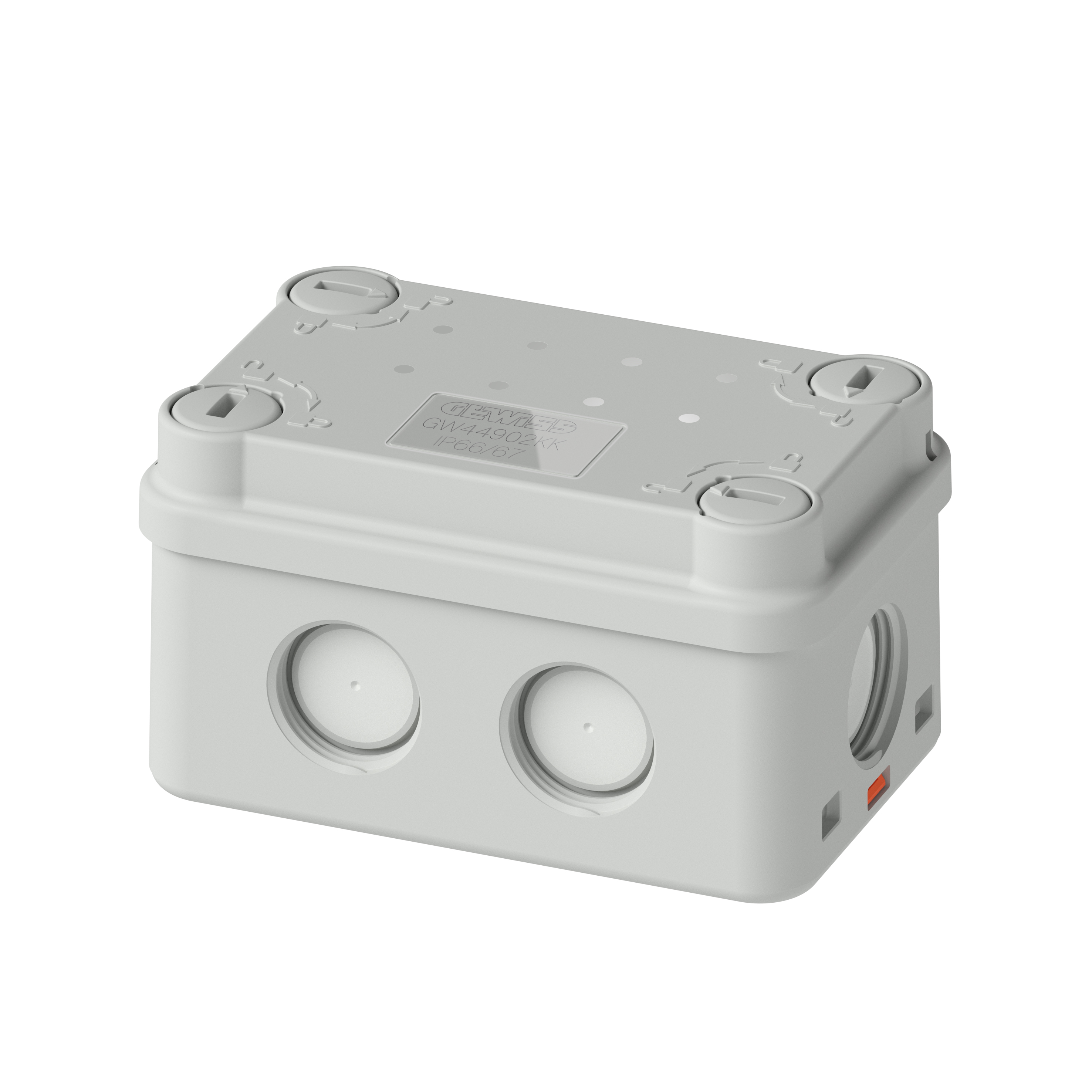

junction box - 1/4 turn screws - ip66/ip67 - internal dimensions 81x49x46 - threaded membrane entries - ral 7035 - uv - hf - fixing bracket incl.
GW44902KK
81x49x46
6 / M20x1,5
Grey RAL 7035
4 x 1/4 turn, captive, sealable
NEW

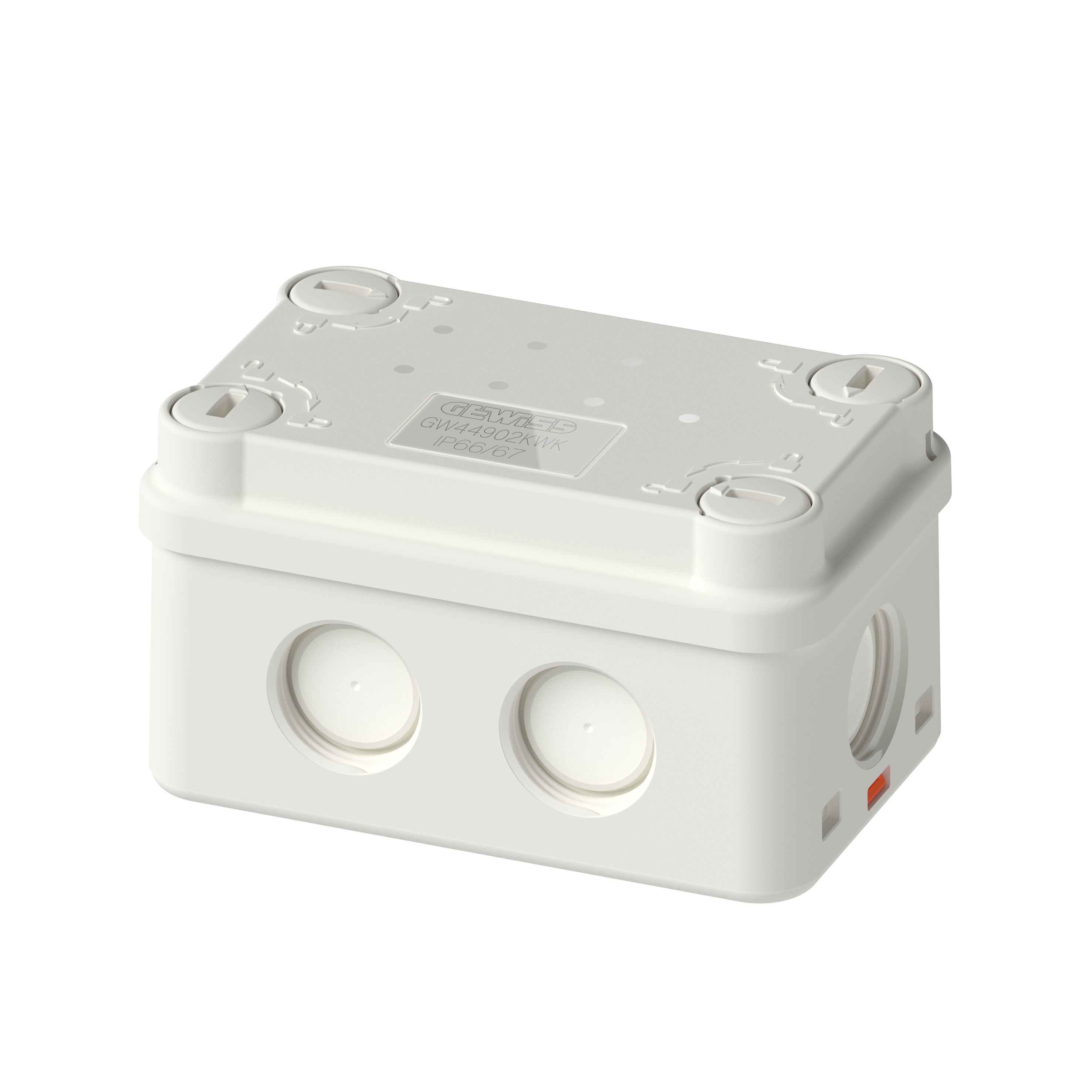

junction box - 1/4 turn screws - ip66/ip67 - internal dimensions 81x49x46 - threaded membrane entries - ral 9016 - uv - hf - fixing bracket incl.
GW44902KWK
81x49x46
6 / M20x1,5
White RAL 9016
4 x 1/4 turn, captive, sealable
NEW

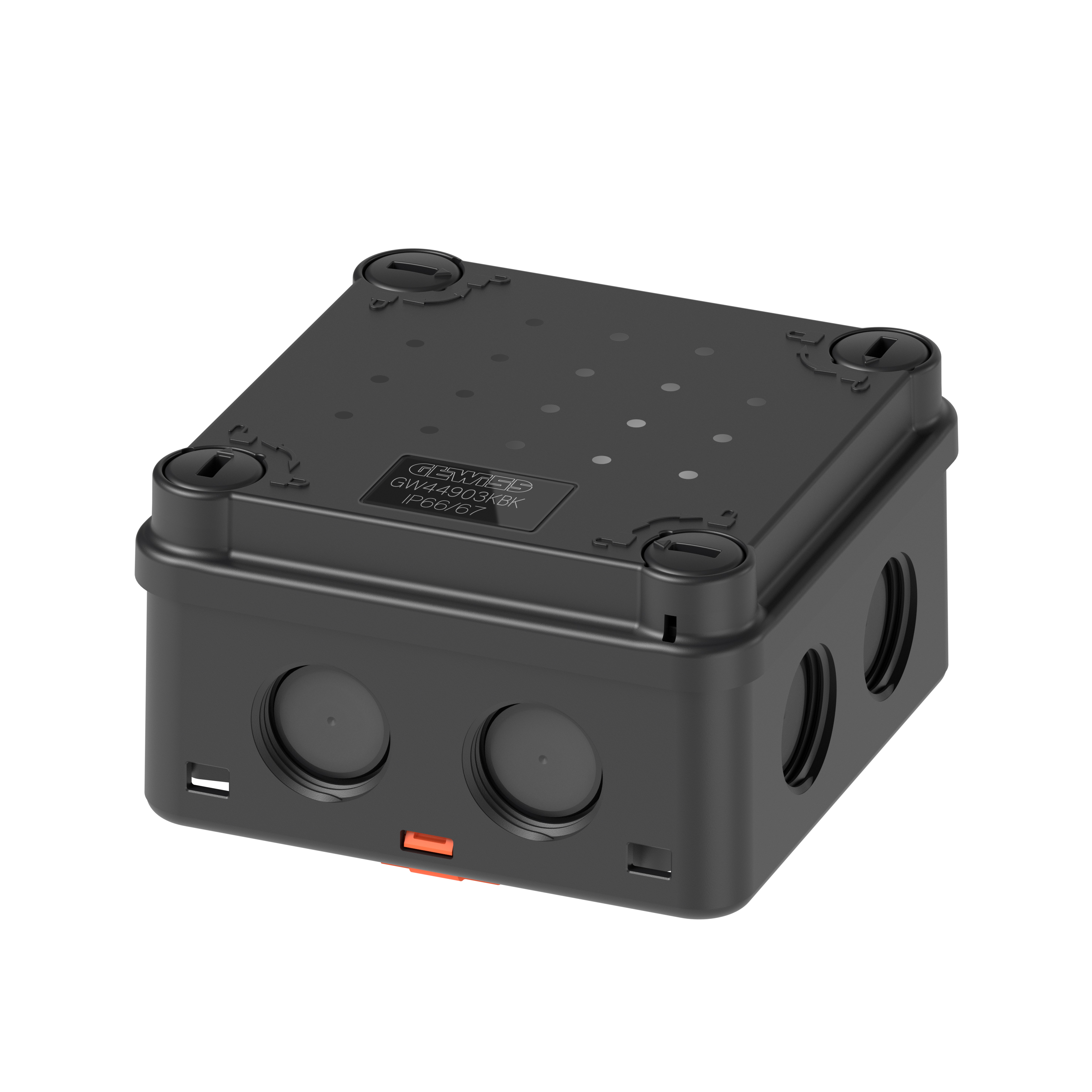

junction box - 1/4 turn screws - ip66/ip67 - internal dimensions 81x81x46 - threaded membrane entries - ral 9005 - uv - hf - fixing bracket incl.
GW44903KBK
81x81x46
8 / M20x1,5
Black RAL 9005
4 x 1/4 turn, captive, sealable
NEW
junction box - 1/4 turn screws - ip66/ip67 - internal dimensions 81x81x46 - threaded membrane entries - ral 7035 - uv - hf - fixing bracket incl.
GW44903KK
81x81x46
8 / M20x1,5
Grey RAL 7035
4 x 1/4 turn, captive, sealable
You saw 9 products on 132
Show others
