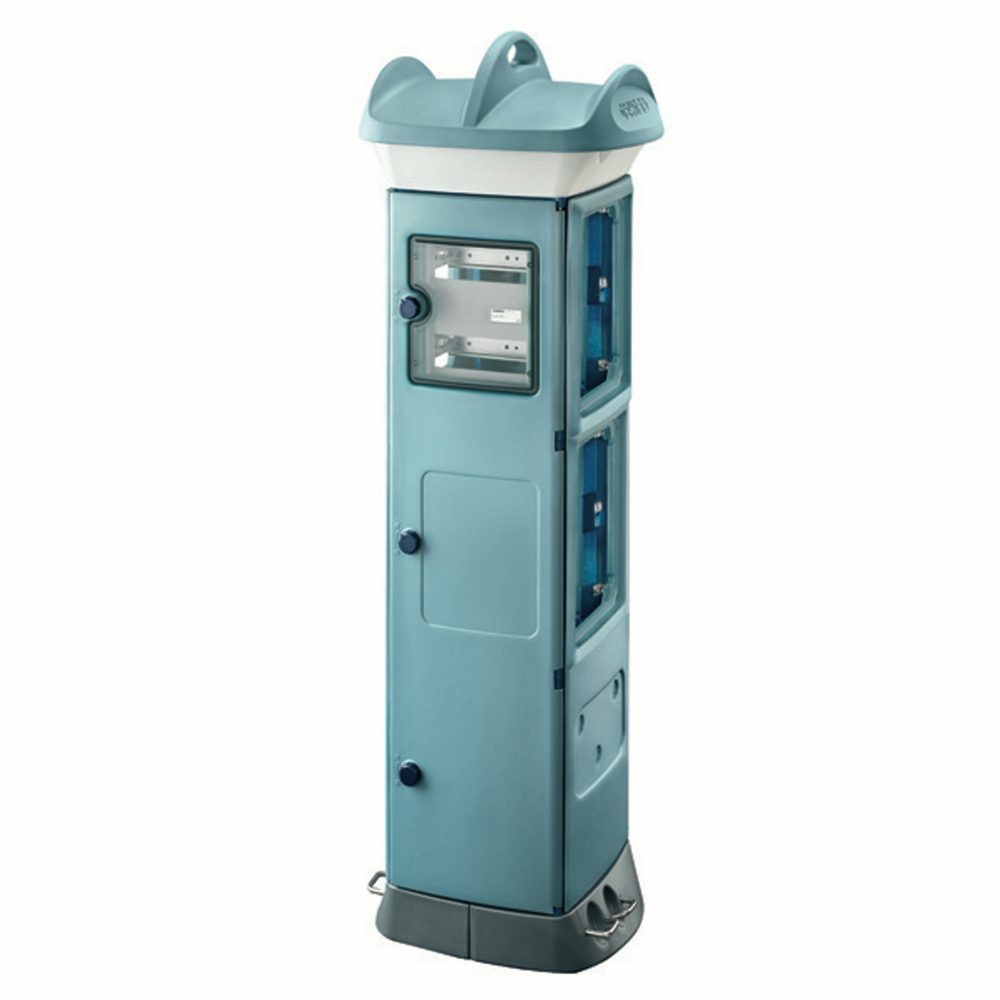

QMC63C - UNWIRED - DOUBLE-FACE TAKE-OFF - SIDE A 2 PANELS SIDE B 2 PANELS - LIGHT BLUE
Code:
GW68716A
Range: 68 Q-MC
Pedestals for energy distribution and service in insulating material
Pedestals for energy distribution and service in insulating material
The 68 Q-MC range is an innovative energy and services distribution system made of thermoplastic, for environments such as tourist ports, campsites and public spaces (trade fairs, markets, gardens, etc.). It combines an attractive design with complete reliability over time, thanks to its resistance to chemical and atmospheric agents. The range includes both pre-wired and unwired versions, which can be configured as needed, and is available in light blue and white.
Technical Info
Information
Download
Software
Certificates
Colour
Light blue
Type
Double-sided
Possible configuration
Side A: 2 panels
Possible configuration
Side B: 2 panels
No. of modules EN 50022
36 (9x4)
Ware Number
85381000
EQUIPMENT AND NOTES
ACCESSORIES SUPPLIED: junction box for housing power supply terminal block.
GW68716A/W: dual 18-module enclosure with hinged opening, can be equipped with a security lock.
CHARACTERISTICS: 18-module enclosure with hinged opening, that can be fitted with security lock, for access to modular devices; prearrangement for lighting kit 16W 230V and water kit with 2 or 4 padlockable 1/2" water taps, available as accessories; double-face take-off with cable fastener devices on sides A and B. Pedestal dimensions: 445x1284x300 mm (LxHxD).
GW68716A/W: dual 18-module enclosure with hinged opening, can be equipped with a security lock.
CHARACTERISTICS: 18-module enclosure with hinged opening, that can be fitted with security lock, for access to modular devices; prearrangement for lighting kit 16W 230V and water kit with 2 or 4 padlockable 1/2" water taps, available as accessories; double-face take-off with cable fastener devices on sides A and B. Pedestal dimensions: 445x1284x300 mm (LxHxD).
