SMART [PRO] 2.0 - 2+2 MODULES - SYMMETRICAL S1 - 5700K (CRI 80) - IP66 - PROTECTION CLASS I
Code:
GWP2485AS
Range: SMART [PRO] 2.0
Medium and high power LED floodlight devices
Smart [PRO] 2.0 is the range of LED floodlights specifically dedicated for professional sport plants and large outdoor areas. Thanks to the new CSP high power LED source, Smart [PRO] 2.0 can provide better lighting performance, simplified installation, reduce maintenance costs and improve the energy saving both in simple and complex systems.
0,222 m2
IP66
IK08
-
Technical Info
Information
Download
Software
Video
Certificates
GENERAL INFORMATION
-
OPTIC AND ILLUMINATING FEATURES
-
Context
Sport, Big Areas

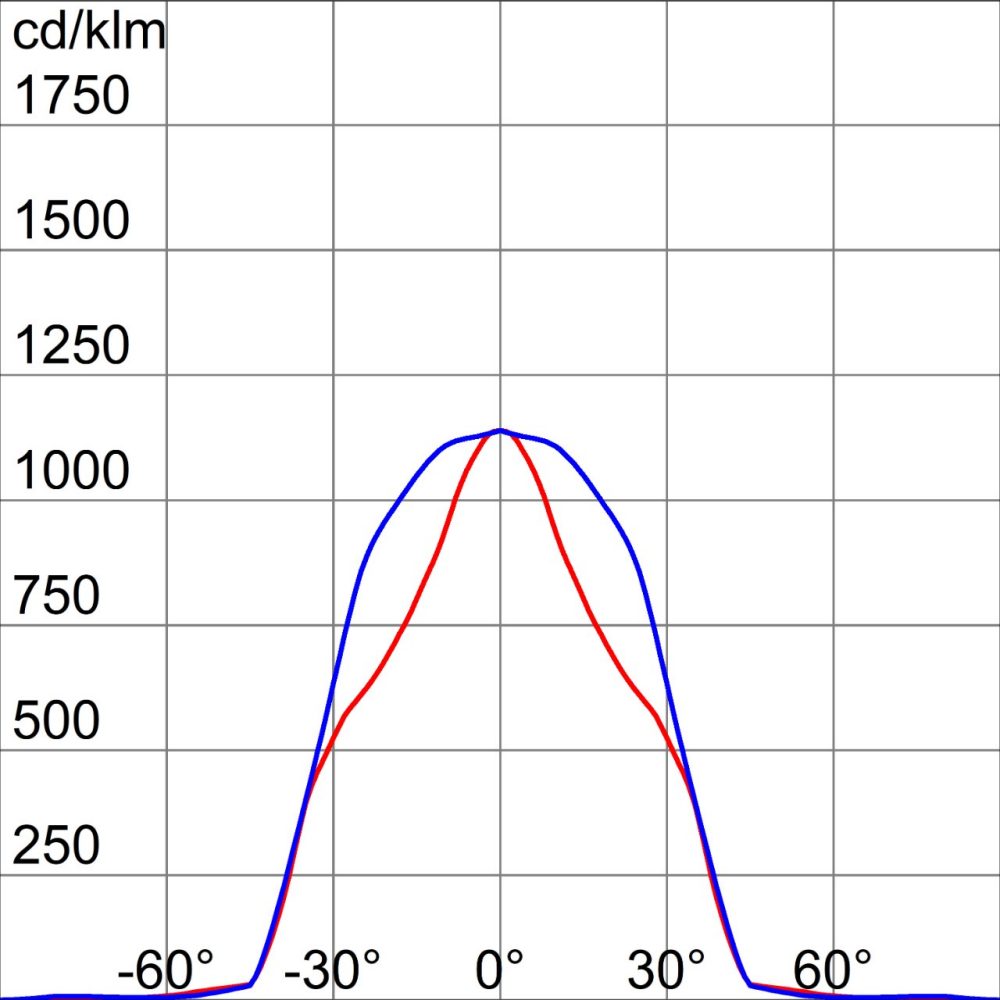

Optic
S1 - Symmetric Wide
Luminaire
LED luminaire with mid and high lumen power
Unified Glare Rating
G*6 - ULOR = 0
Application
Indoor / Outdoor
Lumen output (lm)
73200
Unique digital code
(Datamatrix)
Currently not present
Efficacy
(lm/W) 111
(lm/W) 111
Colour
Graphite grey
Colour temperature
5700 K
Type of light source
LED
Colour Rendering Index
CRI>80
System power
660 W
Standard Deviation Colour Matching
SDCM = 3
LED Lifetime
L90B10(Tq25°C)=40.000h; L80B10(Tq25°C)=90.000h
Photobiological Risk Class
-
Weight (kg)
15
Standard
EN60598-1; EN60598-2-5; IEC 62778; IEC 62471; EN13201
Warranty
5 years
ELETRICAL AND LIGHTING FEATURES
-
Stocking temperature
-
Supply voltage
-
Operating temperature
-30 +50 °C
Rated frequency (Hz)
-
MATERIALS
-
Driver
To be ordered separately
Body
Die-cast aluminium -
Driver failure rate
See external supply unit
Shield type
Flat tempered glass 4mm
Overvoltage protection
See external supply unit
Optic
Polished quartz and metallized PC HT reflector
Control System
See external supply unit
Gasket
Anti-aging silicone
INSTALLATION AND MAINTENANCE
-
Locking Hook
Hexagonal metric screws
Mounting and installation
High-mast lighting - Wall mounting - Ground mouting
External screw
Stainless steel
Tilt
Rotation on bracket with integrated goniometer
Colour
Polyester powder coated
Wiring
Watertight connector
STANDARDS AND APPROVALS
-
Fixing
Bracket
Classification
-
Light souce replaceability
By professional
Device with reduced surface temperature
No
Controlgear replaceability
-
DIN 18032-3 certification
Available
Driver Box
External
IPEA
-
Maximum surface exposed to the wind
0,222 m2
Insulation class
I
-
-
IP degree
IP66
-
-
Mechanical resistance
IK08
-
-
Glow Wire Test
-
-
-
Ware Number
94054210
EQUIPMENT AND NOTES
CCT 3000K-4000K versions available on request.
NOTES: to be used with the relative power supply unit.
Technical data may change due to the continuous evolution of LED technology.
The nominal flux refers to Tj=85°C.
NOTES: to be used with the relative power supply unit.
Technical data may change due to the continuous evolution of LED technology.
The nominal flux refers to Tj=85°C.
