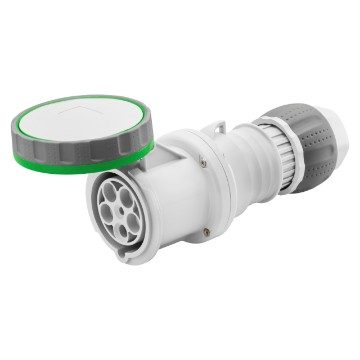

STRAIGHT CONNECTOR HP - IP66/IP67/IP68/IP69 - 3P+N+E 63A >50V >300-500HZ - GREEN - 2H - MANTLE TERMINAL

Code: GW63064H
Range: IEC 309 HP range
Plugs and socket-outlets IEC 309 Standard

The IEC 309 HP system comprises plugs and socket-outlets from 16 to 125 A in two different versions – straight mobile and 10° flush-mounting – which have IP44/IP54 and IP66/IP67/IP68/IP69 degrees of protection (IP68/IP69 only available for straight versions). The introduction of all the hours references for the earthing contact completes the range for specific applications and installations. The 16-32 A versions are available with screw wiring or fast wiring with spring terminals, while the 63-125A versions propose indirect wiring with mantle terminals.

IP66/IP67/IP68/IP69

IK09

850 °C (active parts) - 650 °C (passive parts)

125 °C (active parts) - 80 °C (passive parts)

Technical Info

Information
Download
Software
Video
Certificates
Colour Green
Rated current (A) 63
IP degree IP66/IP67/IP68/IP69
No. of poles 3P+N+E
Mechanical resistance IK09
Reference h 2
Type Straight connector
Rated voltage >50 V
Frequency >300 - 500 Hz
Terminal tightening capacity 6-16mm² flexible cables - 6-25mm² rigid cables
Cable clamp tightening capacity 19.9-37 mm
Operating temperature -25 +55 °C
Type of wiring Mantle terminal
Type of material Halogen-free in compliance with EN 60754-2
Electrocod 2211
Glow wire test 850 °C (active parts) - 650 °C (passive parts)
Total number of operations > 2000
Breaking capacity at 1.1 Un 79 A
Insulation resistance > 10 MΩ
Thermo-pressure with ball 125 °C (active parts) - 80 °C (passive parts)
Ware Number 85366990
