 10° angled surface-mounting socket-outlet - ip44 - 3p+n+e 16a 100-130v 50/60hz - yellow - 4h - screw wiring
Datasheet 10° angled surface-mounting socket-outlet - ip44 - 3p+n+e 16a 100-130v 50/60hz - yellow - 4h - screw wiring

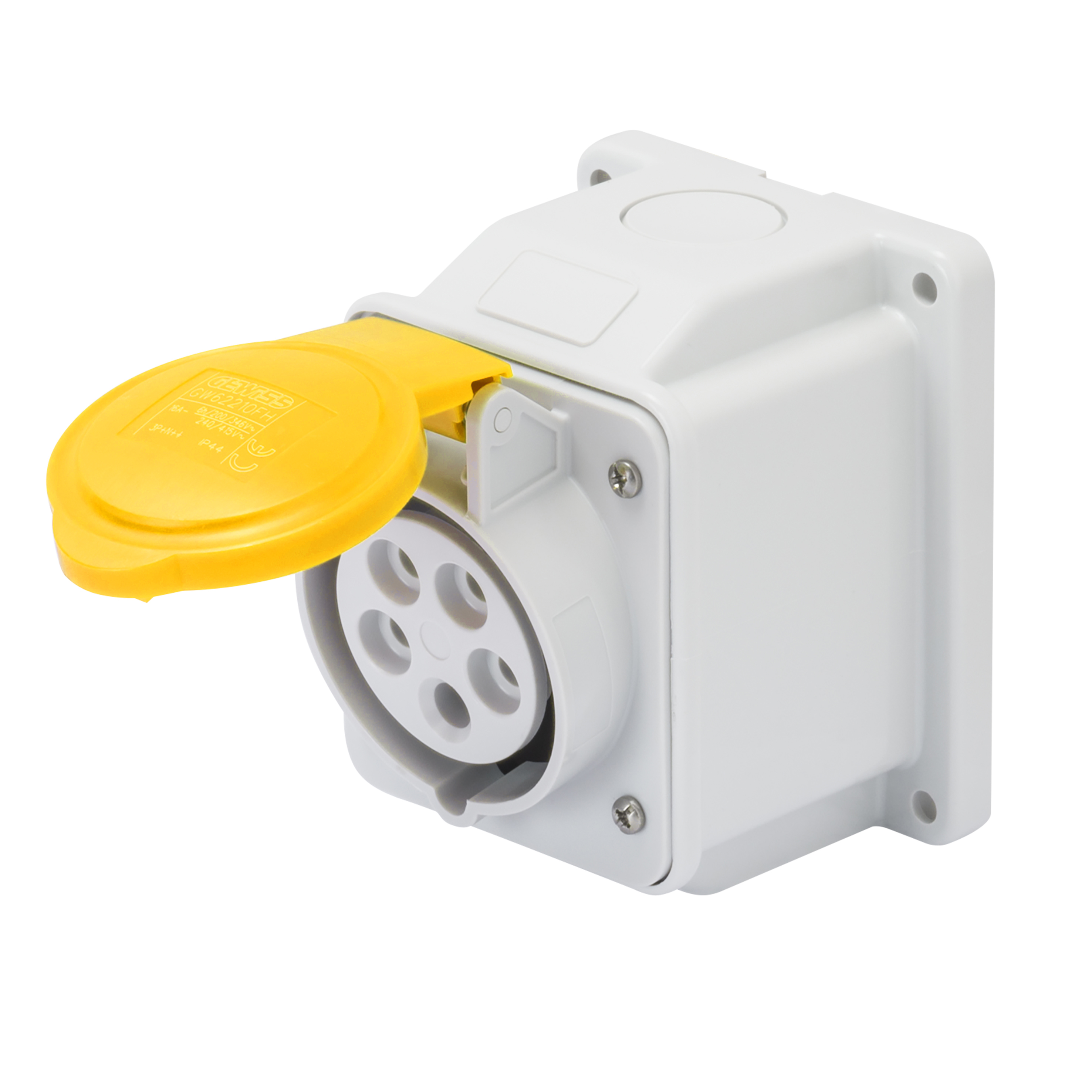

10° ANGLED SURFACE-MOUNTING SOCKET-OUTLET - IP44 - 3P+N+E 16A 100-130V 50/60HZ - YELLOW - 4H - SCREW WIRING

Code: GW62403
Range: IEC 309 HP range
Plugs and socket-outlets IEC 309 Standard
The IEC 309 HP system comprises plugs and socket-outlets from 16 to 125 A in two different versions – straight mobile and 10° flush-mounting – which have IP44/IP54 and IP66/IP67/IP68/IP69 degrees of protection (IP68/IP69 only available for straight versions). The introduction of all the hours references for the earthing contact completes the range for specific applications and installations. The 16-32 A versions are available with screw wiring or fast wiring with spring terminals, while the 63-125A versions propose indirect wiring with mantle terminals.

IP44

IK08

850 °C (active parts) - 650 °C (passive parts)

125 °C (active parts) - 80 °C (passive parts)

Technical Info

Information
Download
Software
Video
Certificates
Colour Yellow
Rated current (A) 16
IP degree IP44
No. of poles 3P+N+E
Mechanical resistance IK08
Reference h 4
Rated voltage 100 - 130 V
Type 10° angled surface-mounting socket-outlet
Frequency 50/60 Hz
Terminal tightening capacity 1-2.5mm² flexible cables - 1.5-4mm² rigid cables
Operating temperature -25 +55 °C
Type of wiring With screw
Electrocod 2210
Glow wire test 850 °C (active parts) - 650 °C (passive parts)
Total number of operations > 5000
Permissible overload 22 A
Breaking capacity at 1.1 Un 20 A
Insulation resistance > 10 MΩ
Thermo-pressure with ball 125 °C (active parts) - 80 °C (passive parts)
Ware Number 85366990

Product Data Sheet

Technical characteristics

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

Show more

ENERGYpro

Boards for building sites, campings-piers and distribution

Show more

CADpro

Advanced design of electrical systems

Show more

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Show more

PRICE

Estimation of electrical systems

Show more

CE marking

Display the certificate

REACH information

Related products

Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Frequency
Reference h

GW62401

16

2P+E

100 - 130 V

Yellow

50/60 Hz

4

GW62402

16

3P+E

100 - 130 V

Yellow

50/60 Hz

4

GW62403

16

3P+N+E

100 - 130 V

Yellow

50/60 Hz

4

GW62404

16

2P+E

200 - 250 V

Blue

50/60 Hz

6

GW62405

16

3P+E

200 - 250 V

Blue

50/60 Hz

9

GW62406

16

3P+N+E

200 - 250 V

Blue

50/60 Hz

9

GW62407

16

2P+E

380 - 415 V

Red

50/60 Hz

9

GW62408

16

3P+E

380 - 415 V

Red

50/60 Hz

6

GW62409

16

3P+N+E

380 - 415 V

Red

50/60 Hz

6

GW62410

16

3P+E

480 - 500 V

Black

50/60 Hz

7

EQUIPMENT AND NOTES
CHARACTERISTICS: nickel-plated contacts. Ø 29 mm cable gland.
