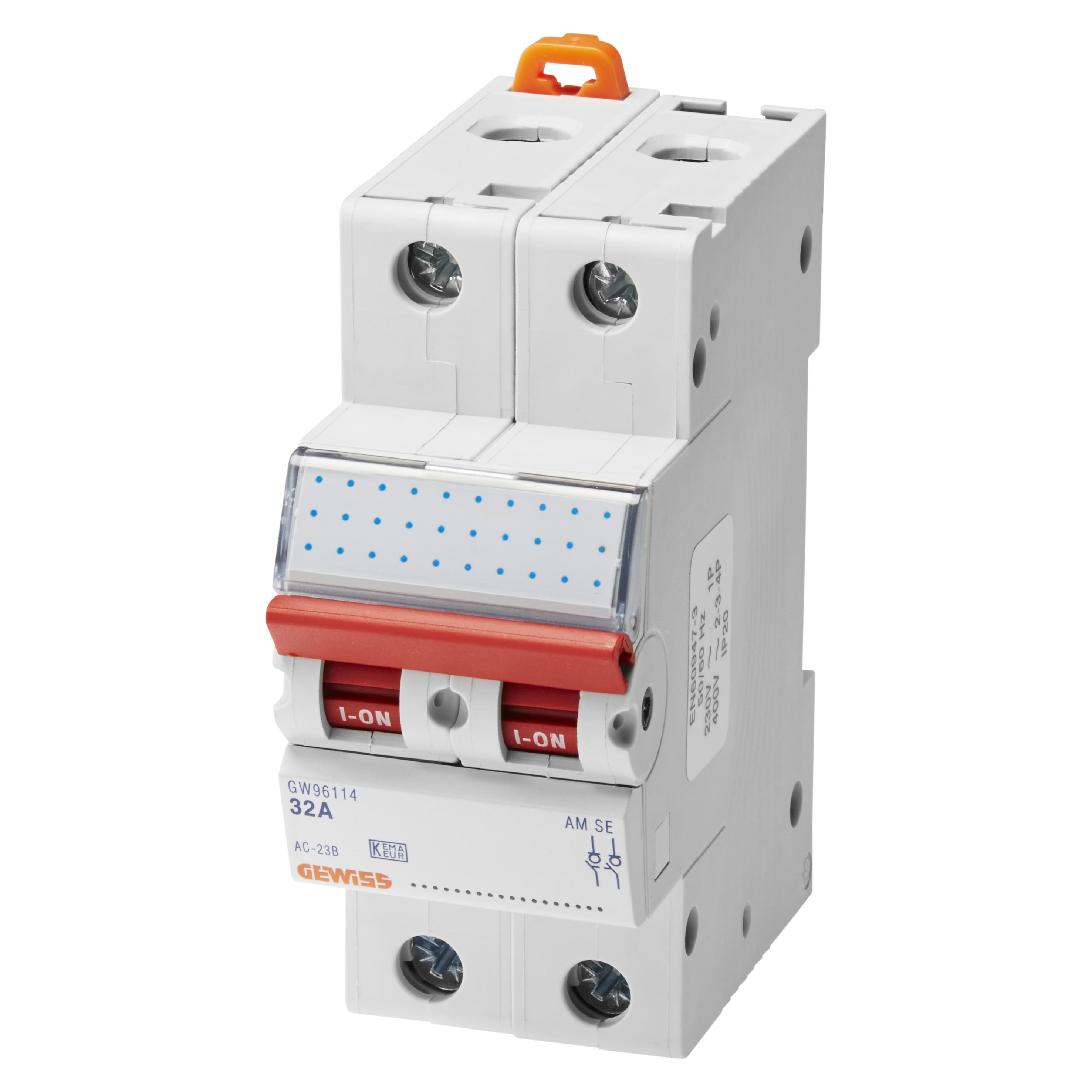

SWITCH DISCONNECTOR - 2P 63A 415V - 2 MODULES

SWITCH DISCONNECTOR - 2P 63A 415V - 2 MODULES

Code: GW96116

Download Technical Sheet

Range: 90 AM Range
Modular accessories

The 90 AM range, in addition to auxiliaries common for the all circuit breakers, comprises many modular accessories for the protection, command, programming, measurement and signalling in electrical systems.

IP20

Technical Info

Information

Download

Software

Certificates

Description Switch disconnector

Code 90 AM Range

No. of poles 2P

Rated current 63 A

AC Rated operational voltage (Ue) 415 V

ELECTRICAL CHARACTERISTICS -

MECHANICAL CHARACTERISTICS -

Standard EN 60947-3

Mechanical life 20.000 maneuvers

Rated insulation voltage (Ui) 500 V

Screwdriver suggested PZ2

Rated impulse withstand voltage (Uimp) 4 kV

Rated tightening torque 2 Nm

Rated frequency (Hz) 50/60 Hz

Max rigid cable section ≤ 1x35 mm2 - ≤ 2x16 mm2 - ≤ 1x16 + 2x10 mm2

Use category AC-23B

Max. section flex. cables ≤ 1x35 mm2 - ≤ 2x16 mm2 - ≤ 1x16 + 2x10 mm2

Rated short-time withstand current for 1s (Icw) 756 A

IP degree IP20

Power dissipation per pole 2 W

Working temperature -5°C ÷ +40°C

Electrical endurance 5.000 maneuvers

Tropicalization 55°C - UR 95%

- -

Upline/downline power supply Sì

- -

Biconnection (cable + fork combs) Yes (downstream only)

- -

Lockable No

Ware Number 85363030

Product Data Sheet

Technical characteristics

Vai all'area download Vai all'area download

CADpro

Advanced design of electrical systems

Show more

ENERGYpro

Boards for building sites, campings-piers and distribution

Show more

PBT-Q

Low voltage systems and boards

Show more

PROJEX

Low voltage system design

Show more

PRICE

Estimation of electrical systems

Show more

CENTRAL

Quotation and Thermal test of modular enclosures

Show more

Vai all’area software Vai all’area software

CE marking

Display the certificate

Display the certificate

EQUIPMENT AND NOTES

NOTES: Can ONLY be accessorised with an auxiliary open/closed position contact GW96001.
