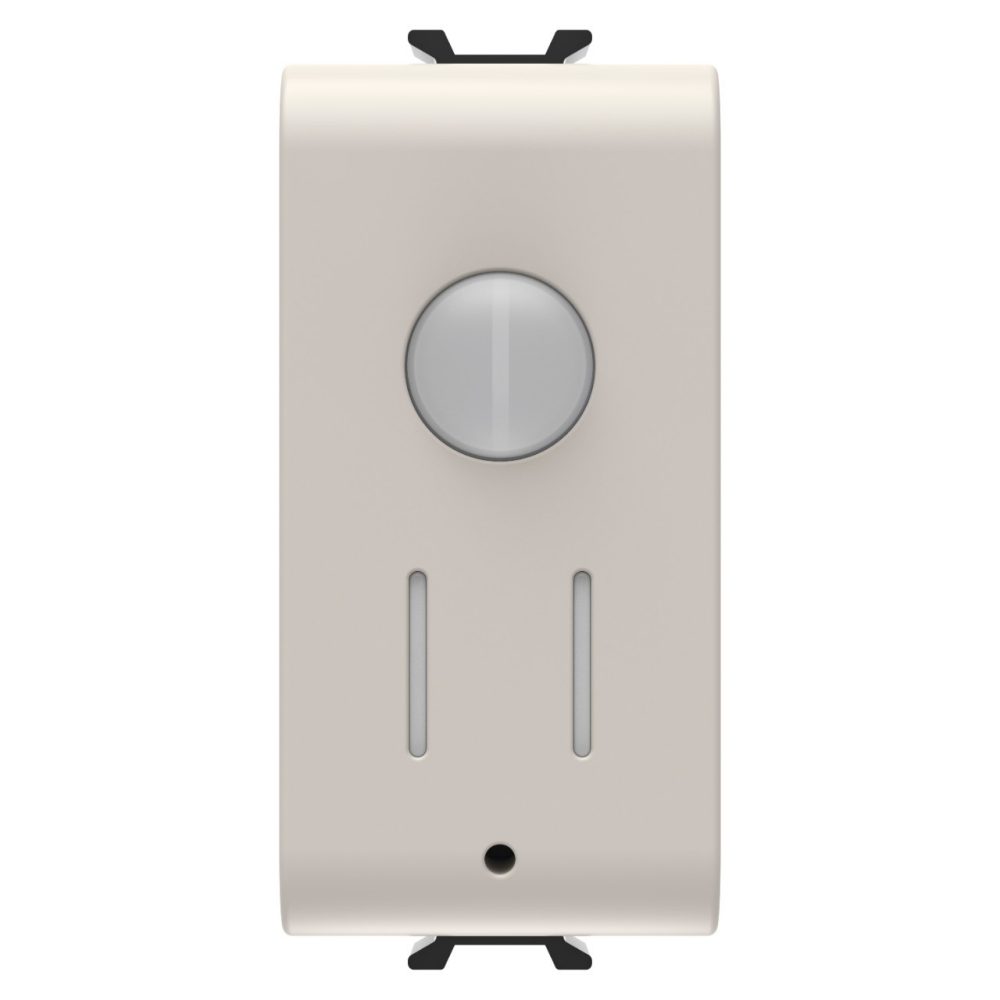

CONNECTED MOVEMENT DETECTOR - ZIGBEE - 100-240 V ac 50/60 Hz - NO 2A (AC1) 240 V ac - 1 MODULE - SATIN NATURAL BEIGE - CHORUSMART
Code:
GW13856
Range: Connected SMART HOME
Connected Smart Home system
Connected Smart Home system
The connected system, based on the Zigbee wireless protocol, offers a full range of solutions for smart homes and small offices that are suitable for both new buildings and renovations. It enables you to control safety, comfort and consumption, through a unique user experience, using the Home Gateway APP and EGO Smart plates. The system integrates with the Google Home IoT platforms, Amazon Alexa and IFTTT, and all functions can be controlled with Google and Alexa voice assistants.
Technical Info
Information
Download
Software
Video
Certificates
Colour
Natural satin beige
Output contacts
1 NO 2 A (AC1) 240 Vac
Power supply
100 ÷ 240 V ac - 50/60 Hz
No. modules
1
No. output channels
1
Radio connections
Zigbee (IEEE 802.15.4)
Standard
2014/53/EU, 2011/65/EU + 2015/863, EN 60669-2-1, EN 60669-1, EN 301 489-1, EN 301 489-17, EN 300 328, EN IEC 63000
Working temperature
-5 ÷ +45 °C
Relative humidity (non-condensative)
Max 93%
Power output Zigbee
10 dBm
Wiring terminals
With screw
Terminal tightening capacity stranded cables (mm²)
Max. 1,5
Terminal tightening capacity solid cables (mm²)
Max. 1,5
Category
Movement detector
No. input channels
2 (for local command replication or sending additional Zigbee commands)
Input voltage
Mains supply voltage
240 V ac Incandescent-halogen lamps
4 - 500 W
240 V ac LED lamps
4 - 100 W
Loads piloted from electronic transf. 240 V ac
4 - 250 VA
Technology
Infrared
Light sensor
1 - 1000 lux
Horizontal bearing angle
±50°
Vertical bearing angle
±8°
Ware Number
85365080
EQUIPMENT AND NOTES
CHARACTERISTICS: motion sensor with detection based on the set brightness threshold. Fixed lens. Parameters that can be set during configuration via the APP: brightness threshold value, shutdown time after presence detection.
Local live contact for direct control of the load, connectable loads: incandescent and halogen lamps (240Vac): 500W, LED lamps (240Vac): 100W, fluorescent lamps (240Vac): 120W, halogen lamps powered by electronic transformers (240Vac): 250VA.
Equipped with 2 inputs (auxiliary axial controls, traditional push-buttons and switches, sensors, etc.) to replicate the direct control of the lamp/load connected to the local relay or to send Zigbee commands and statuses.
The device has a blue LED to indicate motion detection (regardless of the brightness threshold).
APPLICATIONS: the devices detect a person's movement and send the signal via Zigbee which activates lamps and/or loads. The connected lamp and/or load can be activated directly through the local contact. Energy savings: light control of the environments or areas concerned only when there is traffic/presence of people.
NOTES: do not install the product in watertight plates: the lid membrane does not allow the detector lens to function correctly.
Local live contact for direct control of the load, connectable loads: incandescent and halogen lamps (240Vac): 500W, LED lamps (240Vac): 100W, fluorescent lamps (240Vac): 120W, halogen lamps powered by electronic transformers (240Vac): 250VA.
Equipped with 2 inputs (auxiliary axial controls, traditional push-buttons and switches, sensors, etc.) to replicate the direct control of the lamp/load connected to the local relay or to send Zigbee commands and statuses.
The device has a blue LED to indicate motion detection (regardless of the brightness threshold).
APPLICATIONS: the devices detect a person's movement and send the signal via Zigbee which activates lamps and/or loads. The connected lamp and/or load can be activated directly through the local contact. Energy savings: light control of the environments or areas concerned only when there is traffic/presence of people.
NOTES: do not install the product in watertight plates: the lid membrane does not allow the detector lens to function correctly.
