CADpro

CADPro is an easy-to-use software for designing electrical systems for residential and service industry applications.

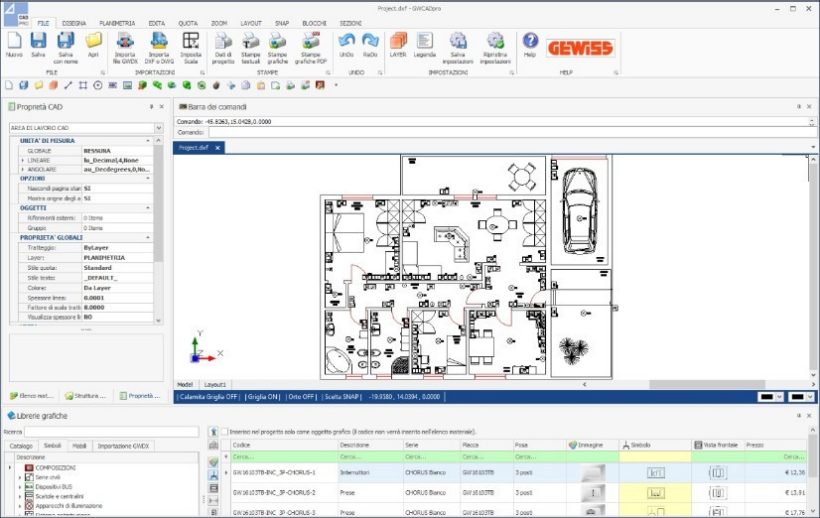

The program can be used independently (AutoCAD not required). It has a two-dimensional CAD engine with all the main AutoCAD commands (layer, grid, filters, block management, etc.).

CADPro is interconnected with the other GEWISS Technical Software by the file DX. It permits the import of the structure created by the software (the bus functions by BUS, the boards by PBT-Q, the user structure by PRICE, etc.) and the graphic elements to create planimetric electrical systems, wiring diagrams, frontview, etc.

CADPro contains all the products in the GEWISS catalogue and for each product the following are available: the image and/or the electrical symbol and/or the shape and/or the shape measured in 1:1 scale.

The library is organised by catalogue and by electrical symbol to facilitate the search for the desired product.

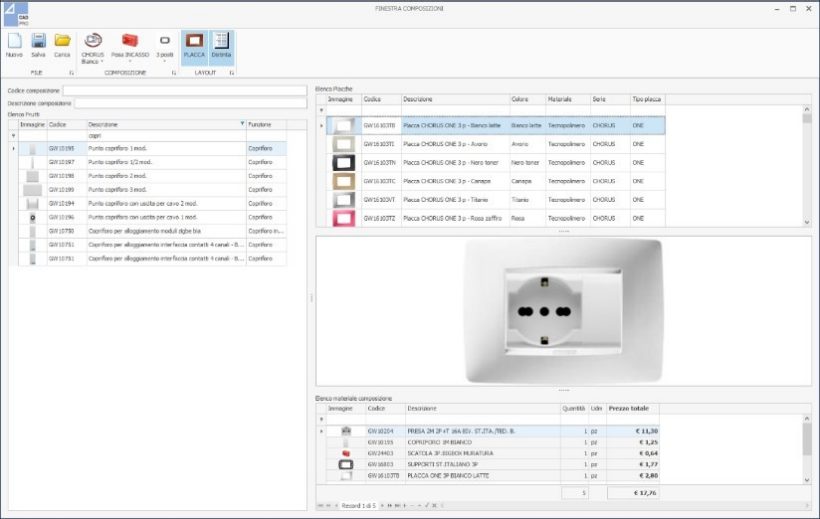

Is also possible to create compositions of symbols using the "Composition Wizard".

With CADPro, it is possible to:

• import and export drawings in dxf and dwg format;
• import drawings and images in the most common formats (bmp, jpg, etc.);
• produce complete location plan drawings

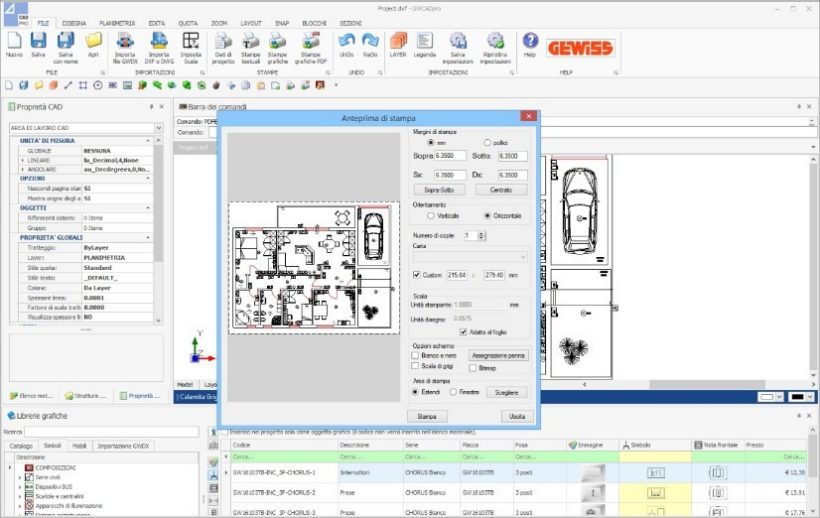

The project created by CADPro can be printed or/and exported to DXF, DWG, PDF file; the material list can be exported in EXCEL and GWDX format file.
