IEC 309 BTS Range
Extra-low voltage plugs and socket-outlets IEC 309 standard

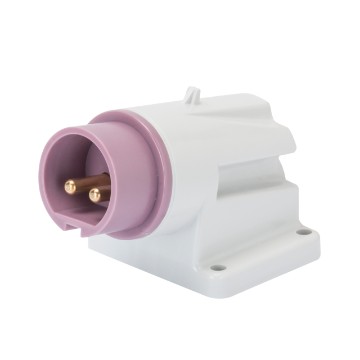

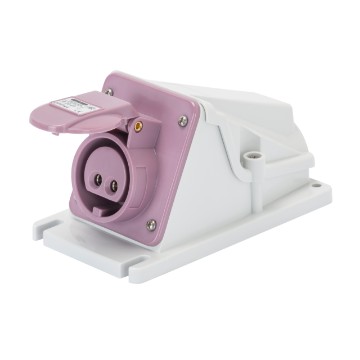

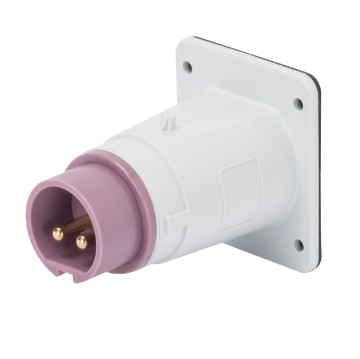

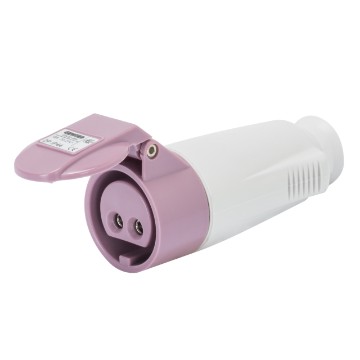

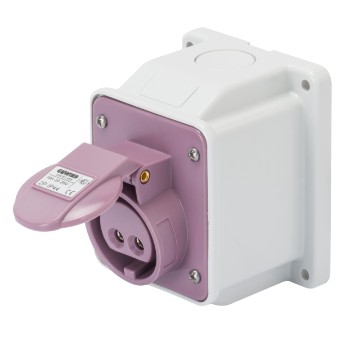

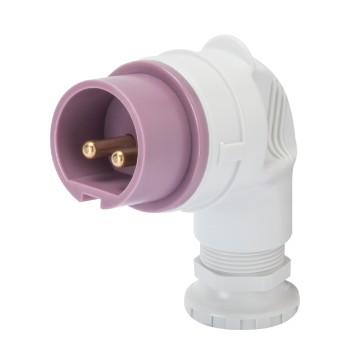

The IEC 309 BTS range of extra-low voltage plugs and sockets for industrial applications enable machinery and devices that operate on voltages of less than 50 V to be connected. The range includes different versions – straight mobile, 90° connectors, surface-mounting and flush mounting, protected and watertight. Available for currents from 16 to 32 A.

Benefits
Wide range
For ultra-low voltage applications
Synergy with distribution boards
Benefits
Wide range
Wide range

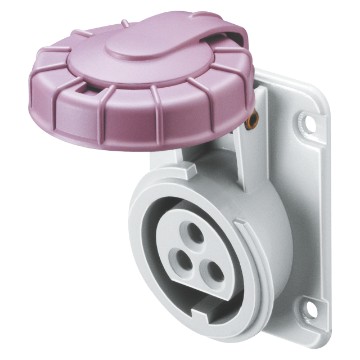

The range consists of 16-32A straight and 90°, surface-mounting and flushmounting plugs and socket-outlets, in protected versions (10° flush-mounting socket-outlet versions also available in a waterproof version IP67).
For ultra-low voltage applications
For ultra-low voltage applications
The range consists of 16-32A straight and 90°, surface-mounting and flushmounting plugs and socket-outlets, in protected versions (10° flushmounting socket-outlet versions also available in a waterproof version IP67).
Synergy with distribution boards
Synergy with distribution boards

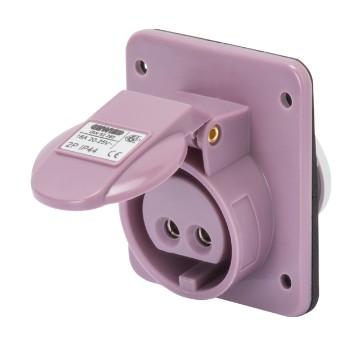

The 10° flush-mounted socket-outlets of the extra-low voltage range have the same dimensions and the same fixing centre distance as the normal IEC 309 socket-outlets, therefore they can also be installed on the Q-DIN, Q-BOX and QMC boards.

The products of this series

Navigate by catalogue
All filters
128 products

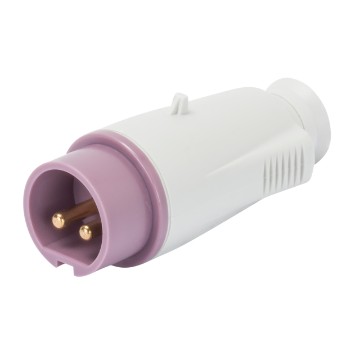

STRAIGHT PLUG - IP44 - 2P 16A 20-25V 50-60HZ - VIOLET - n.r. - SCREW WIRING
GW60064
STRAIGHT PLUG - IP44 - 2P 16A 20-25V 50-60HZ - VIOLET - n.r. - SCREW WIRING
Show
STRAIGHT PLUG - IP44 - 3P 16A 20-25V 50-60HZ - VIOLET - n.r. - SCREW WIRING
GW60065
STRAIGHT PLUG - IP44 - 3P 16A 20-25V 50-60HZ - VIOLET - n.r. - SCREW WIRING
Show
STRAIGHT PLUG - IP44 - 2P 16A 40-50V 50-60HZ - WHITE - 12H - SCREW WIRING
GW60066
STRAIGHT PLUG - IP44 - 2P 16A 40-50V 50-60HZ - WHITE - 12H - SCREW WIRING
Show
STRAIGHT PLUG - IP44 - 3P 16A 40-50V 50-60HZ - WHITE - 12H - SCREW WIRING
GW60067
STRAIGHT PLUG - IP44 - 3P 16A 40-50V 50-60HZ - WHITE - 12H - SCREW WIRING
Show
STRAIGHT PLUG - IP44 - 2P 16A 20-25V and 40-50V 100-200HZ - GREEN - 4H - SCREW WIRING
GW60068
STRAIGHT PLUG - IP44 - 2P 16A 20-25V and 40-50V 100-200HZ - GREEN - 4H - SCREW WIRING
Show
STRAIGHT PLUG - IP44 - 3P 16A 20-25V and 40-50V 100-200HZ - GREEN - 4H - SCREW WIRING
GW60069
STRAIGHT PLUG - IP44 - 3P 16A 20-25V and 40-50V 100-200HZ - GREEN - 4H - SCREW WIRING
Show
STRAIGHT PLUG - IP44 - 2P 16A 20-25V and 40-50V 401-500HZ - GREEN - 11H - SCREW WIRING
GW60070
STRAIGHT PLUG - IP44 - 2P 16A 20-25V and 40-50V 401-500HZ - GREEN - 11H - SCREW WIRING
Show
STRAIGHT PLUG - IP44 - 3P 16A 20-25V and 40-50V 401-500HZ - GREEN - 11H - SCREW WIRING
GW60071
STRAIGHT PLUG - IP44 - 3P 16A 20-25V and 40-50V 401-500HZ - GREEN - 11H - SCREW WIRING
Show
STRAIGHT PLUG - IP44 - 2P 16A 20-25 e 40-50V 50-60HZ d.c. - WHITE - 10H - SCREW WIRING
GW60072
STRAIGHT PLUG - IP44 - 2P 16A 20-25 e 40-50V 50-60HZ d.c. - WHITE - 10H - SCREW WIRING
Show
STRAIGHT PLUG - IP44 - 2P 32A 20-25V 50-60HZ - VIOLET - n.r. - SCREW WIRING
GW60073
STRAIGHT PLUG - IP44 - 2P 32A 20-25V 50-60HZ - VIOLET - n.r. - SCREW WIRING
Show
STRAIGHT PLUG - IP44 - 3P 32A 20-25V 50-60HZ - VIOLET - n.r. - SCREW WIRING
GW60074
STRAIGHT PLUG - IP44 - 3P 32A 20-25V 50-60HZ - VIOLET - n.r. - SCREW WIRING
Show
STRAIGHT PLUG - IP44 - 2P 32A 40-50V 50-60HZ - WHITE - 12H - SCREW WIRING
GW60075
STRAIGHT PLUG - IP44 - 2P 32A 40-50V 50-60HZ - WHITE - 12H - SCREW WIRING
Show
STRAIGHT PLUG - IP44 - 3P 32A 40-50V 50-60HZ - WHITE - 12H - SCREW WIRING
GW60076
STRAIGHT PLUG - IP44 - 3P 32A 40-50V 50-60HZ - WHITE - 12H - SCREW WIRING
Show
STRAIGHT PLUG - IP44 - 2P 32A 20-25V and 40-50V 100-200HZ - GREEN - 4H - SCREW WIRING
GW60077
STRAIGHT PLUG - IP44 - 2P 32A 20-25V and 40-50V 100-200HZ - GREEN - 4H - SCREW WIRING
Show
STRAIGHT PLUG - IP44 - 3P 32A 20-25V and 40-50V 100-200HZ - GREEN - 4H - SCREW WIRING
GW60078
STRAIGHT PLUG - IP44 - 3P 32A 20-25V and 40-50V 100-200HZ - GREEN - 4H - SCREW WIRING
Show
STRAIGHT PLUG - IP44 - 2P 32A 20-25V and 40-50V 401-500HZ - GREEN - 11H - SCREW WIRING
GW60079
STRAIGHT PLUG - IP44 - 2P 32A 20-25V and 40-50V 401-500HZ - GREEN - 11H - SCREW WIRING
Show
You saw 16 products on 128
Show others
