IEC 309 MA Range Multiple sockets and adaptor for industrial and domestic uses, protected and watertight

IEC 309 MA Range Multiple sockets and adaptor for industrial and domestic uses, protected and watertight

The IEC 309 MA range is a range of multipliers, adapters and shunts.
Available for currents of 16, 32 and 63A with different combinations in terms of number of outputs and polarity.
These products should be considered supplementary to the system as they are only suitable for use in temporary installations and mobile connections, and they have not been designed for permanent applications.

64 - Multiple socket-couplers

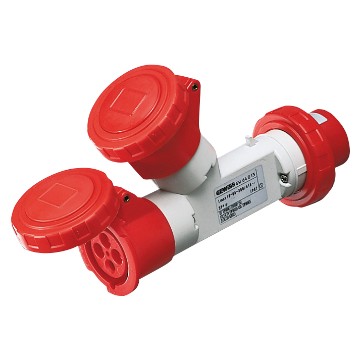

2-outputs

3-outputs

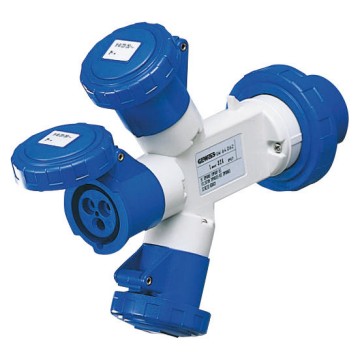

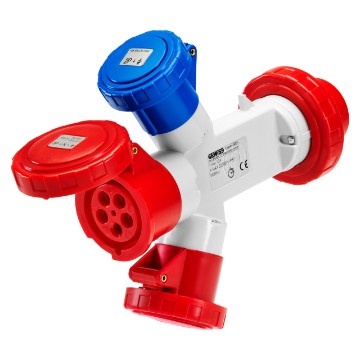

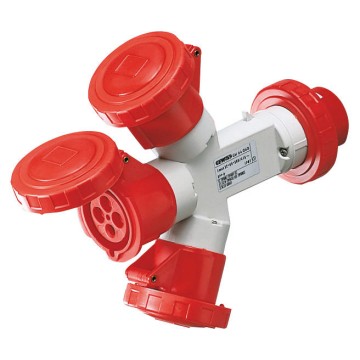

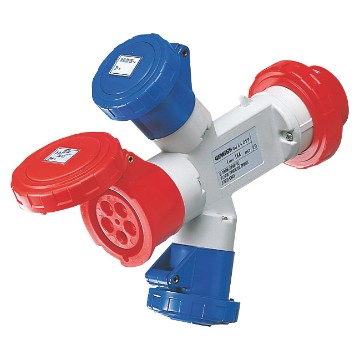

Multiple socket-couplers 3 outputs with 16-32A plug - 50/60Hz - IP67
Multiple socket-couplers 3 outputs with 16-32A plug - 50/60Hz - IP67
Gewiss-code
Plug IEC 309
No. of poles
Rated voltage
Colour
Reference h

Gewiss-code GW64022
Plug IEC 309 16A
No. of poles 2P+E
Rated voltage 110 V
Colour Yellow
Reference h 4
Ga
Gewiss-code GW64023
Plug IEC 309 16A
No. of poles 3P+E
Rated voltage 110 V
Colour Yellow
Reference h 4
Ga
Gewiss-code GW64024
Plug IEC 309 16A
No. of poles 2P+E
Rated voltage 230 V
Colour Blue
Reference h 6
Ga
Gewiss-code GW64025
Plug IEC 309 16A
No. of poles 3P+E
Rated voltage 230 V
Colour Blue
Reference h 9
Ga
Gewiss-code GW64026
Plug IEC 309 16A
No. of poles 3P+N+E
Rated voltage 230 V
Colour Blue
Reference h 9
Ga
Gewiss-code GW64027
Plug IEC 309 16A
No. of poles 3P+E
Rated voltage 400 V
Colour Red
Reference h 6
Ga
Gewiss-code GW64028
Plug IEC 309 16A
No. of poles 3P+N+E
Rated voltage 400 V
Colour Red
Reference h 6
Ga
Gewiss-code GW64068
Plug IEC 309 32A
No. of poles 3P+E
Rated voltage 400 V
Colour Red
Reference h 6
Ga

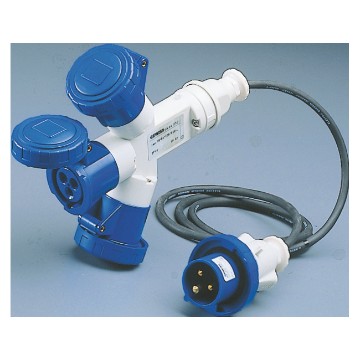

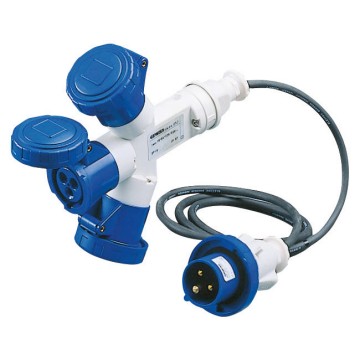

3-outputs with cable and plug

64 - Multiple socket-adaptors

Configuration adaptors

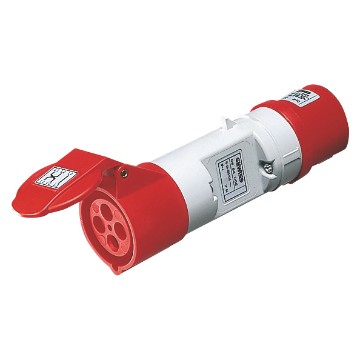

Current adaptors

Phase inverter

64 IC/CI - System adaptors

From industrial to domestic: wired

System adaptors: IEC 309 IP44 plug / Socket-outlet for residential use - 50/60Hz
System adaptors: IEC 309 IP44 plug / Socket-outlet for residential use - 50/60Hz
Gewiss-code
Plug IEC 309
Resid. socket-outlets 250V~

Gewiss-code GW64203
Plug IEC 309 2P+E - 16A - 230V ac
Resid. socket-outlets 250V~ N. 1 - 2P+E - 16A French
Ga
Gewiss-code GW64204
Plug IEC 309 2P+E - 16A - 230V ac
Resid. socket-outlets 250V~ N. 1 - 2P+E - 13A British
Ga
Gewiss-code GW64210
Plug IEC 309 2P+E - 16A - 230V ac
Resid. socket-outlets 250V~ N. 1 - 2P+E - 10/16A German
Ga
Gewiss-code GW64211
Plug IEC 309 2P+E - 16A - 230V ac
Resid. socket-outlets 250V~ N. 2 - 2P+E - 16A Dual amp (P17/11)
Ga
Gewiss-code GW64212
Plug IEC 309 2P+E - 16A - 230V ac
Resid. socket-outlets 250V~ N. 1 - 2P+E - 16A Dual amp (P30 - P17)
Ga
Gewiss-code GW64216
Plug IEC 309 3P+N+E - 16A - 400V ac
Resid. socket-outlets 250V~ N. 2 - 2P+E - 16A Dual amp (P17/11)
Ga
Gewiss-code GW64217
Plug IEC 309 3P+N+E - 16A - 400V ac
Resid. socket-outlets 250V~ N. 1 - 2P+E - 16A Dual amp (P30 - P17)
Ga
UITRUSTING EN OPMERKINGEN

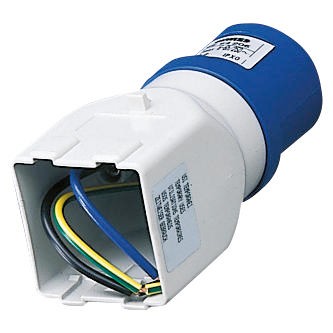

From industrial to domestic: fitted

System adaptors: IEC 309 IP44 plug for Fitting for 2 module System range - 50/60Hz
System adaptors: IEC 309 IP44 plug for Fitting for 2 module System range - 50/60Hz
Gewiss-code
Plug IEC 309
Housing for

Gewiss-code GW64206
Plug IEC 309 2P+E - 16A - 230V ac
Housing for 2
Ga
Gewiss-code GW64207
Plug IEC 309 3P+N+E - 16A - 400V ac
Housing for 2
Ga
UITRUSTING EN OPMERKINGEN

From domestic to industrial: wired

System adaptors Domestic use plug / IEC 309 IP44 socket-outlet - 50/60Hz
System adaptors Domestic use plug / IEC 309 IP44 socket-outlet - 50/60Hz
Gewiss-code
Domestic socket-outlet
Socket-outlet IEC 309

Gewiss-code GW64208
Domestic socket-outlet 2P+E - 16A - 250V ac S17
Socket-outlet IEC 309 2P+E - 16A - 230V ac
Ga
Gewiss-code GW64209
Domestic socket-outlet 2P+E - 16A - 250V ac German/French
Socket-outlet IEC 309 2P+E - 16A - 230V ac
Ga
UITRUSTING EN OPMERKINGEN

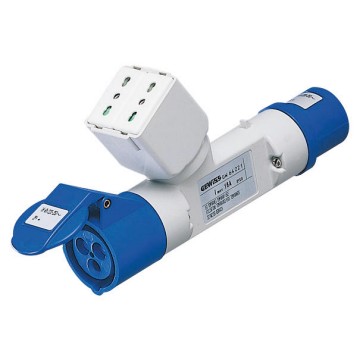

64 IC/CI - System branched adaptors

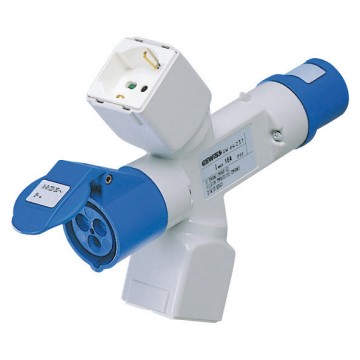

1 branched outlet: wired

Conversion adaptors: Plug for domestic use / IEC 309 socket-coupler IP44 - 50/60Hz
Conversion adaptors: Plug for domestic use / IEC 309 socket-coupler IP44 - 50/60Hz
Gewiss-code
Plug IEC 309
Resid. socket-outlets 250V~
Socket-outlet IEC 309

Gewiss-code GW64221
Plug IEC 309 2P+E - 16A - 230V ac
Resid. socket-outlets 250V~ N. 2 - 2P+E - 16A Dual amp (P17/11)
Socket-outlet IEC 309 2P+E - 16A - 230V ac
Ga
Gewiss-code GW64222
Plug IEC 309 2P+E - 16A - 230V ac
Resid. socket-outlets 250V~ N. 1 - 2P+E - 16A Dual amp (P30 - P17)
Socket-outlet IEC 309 2P+E - 16A - 230V ac
Ga
UITRUSTING EN OPMERKINGEN

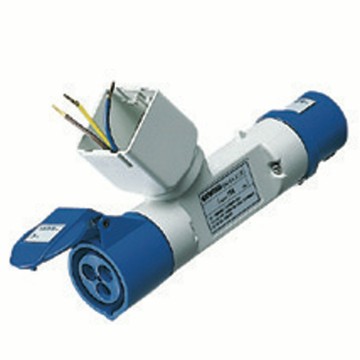

1 branched outlet: fitted

Conversion adaptors: IEC 309 plug fitting for 2 SYSTEM modules/IEC 309 socket-coupler IP44 - 50/60Hz
Conversion adaptors: IEC 309 plug fitting for 2 SYSTEM modules/IEC 309 socket-coupler IP44 - 50/60Hz
Gewiss-code
Plug IEC 309
Housing for
Socket-outlet IEC 309

Gewiss-code GW64223
Plug IEC 309 2P+E - 16A - 230V ac
Housing for 2
Socket-outlet IEC 309 2P+E - 16A - 230V ac
Ga
UITRUSTING EN OPMERKINGEN

2 branched outlets: wired

2 branched outlets: fitted

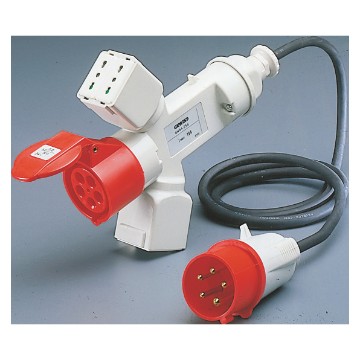

2 branched outlets with cable and plug: wired

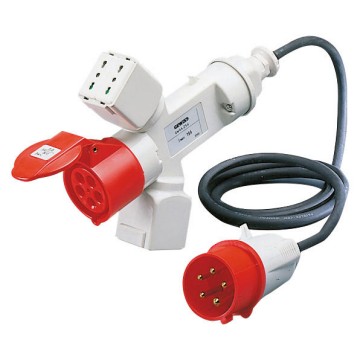

Conversion adaptor shunt with 2 m of flexible cable: IEC 309 plug IP44 Domestic sockets / IEC 309 socket-coupler IP44 - 50/60Hz
Conversion adaptor shunt with 2 m of flexible cable: IEC 309 plug IP44 Domestic sockets / IEC 309 socket-coupler IP44 - 50/60Hz
Gewiss-code
Plug IEC 309
Resid. socket-outlets 250V~
Socket-outlet IEC 309

Gewiss-code GW64256
Plug IEC 309 3P+N+E - 16A - 400V ac
Resid. socket-outlets 250V~ N. 2 (P17/11) -N. 1 (P30-P17)
Socket-outlet IEC 309 3P+N+E - 16A - 400V ac
Ga
UITRUSTING EN OPMERKINGEN
Conversion adaptor shunt with 2 m of flexible cable: plug for domesticuse / sockets-outlets for domestic use / IEC 309 socket-coupler IP44 - 50/60Hz
Conversion adaptor shunt with 2 m of flexible cable: plug for domesticuse / sockets-outlets for domestic use / IEC 309 socket-coupler IP44 - 50/60Hz
Gewiss-code
Domestic socket-outlet
Resid. socket-outlets 250V~
Socket-outlet IEC 309

Gewiss-code GW64263
Domestic socket-outlet 2P+E - 16A - 250V ac S17
Resid. socket-outlets 250V~ N. 2 (P17/11) -N. 1 (P30-P17)
Socket-outlet IEC 309 2P+E - 16A - 230V ac
Ga
UITRUSTING EN OPMERKINGEN

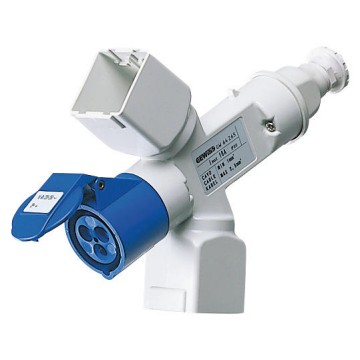

2 branched outlets fitted for cable and plug

Conversion adaptor shunt: Fitting for 2+2 SYSTEM modules / IEC 309 socket-coupler IP44 - 50/60Hz
Conversion adaptor shunt: Fitting for 2+2 SYSTEM modules / IEC 309 socket-coupler IP44 - 50/60Hz
Gewiss-code
Housing for
Socket-outlet IEC 309

Gewiss-code GW64265
Housing for 2+2
Socket-outlet IEC 309 2P+E - 16A - 230V ac
Ga
UITRUSTING EN OPMERKINGEN
