SERIES DETAIL

PLAYBUS Range
Flush-mounting wiring devices

Command devices

One-way switches - 250V ac
One-way switches - 250V ac
Gewiss Code
Description
Type
Symbol
No. Playbus modules

Gewiss Code GW30001
Description 1P - 16AX
Type General
Symbol -
No. Playbus modules 1
Go
Gewiss Code GW30002
Description 1P - 16AX illuminable
Type Night-time backlit
Symbol -
No. Playbus modules 1
Go
Gewiss Code GW30003
Description 1P - 16AX illuminable
Type Functional indicator
Symbol -
No. Playbus modules 1
Go
Gewiss Code GW30004
Description 2P - 16 AX
Type General
Symbol 0/1
No. Playbus modules 1
Go
Gewiss Code GW30005
Description 2P - 16AX illuminable
Type Night-time backlit
Symbol 0/1
No. Playbus modules 1
Go
Gewiss Code GW30006
Description 2P - 16AX illuminable
Type Functional indicator
Symbol 0/1
No. Playbus modules 1
Go
Gewiss Code GW30007
Description 2P - 10AX
Type With key
Symbol 0/1
No. Playbus modules 1
Go
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
Push-buttons - 250V ac
Push-buttons - 250V ac
Gewiss Code
Description
Type
Symbol
No. Playbus modules

Gewiss Code GW30021
Description 1P NO - 16A
Type General
Symbol -
No. Playbus modules 1
Go
Gewiss Code GW30022
Description 1P NO - 16A illuminable
Type Night-time backlit
Symbol -
No. Playbus modules 1
Go
Gewiss Code GW30023
Description 1P NO - 16A illuminable
Type Functional indicator
Symbol -
No. Playbus modules 1
Go
Gewiss Code GW30024
Description 1P NO - 16A illuminable
Type With symbol
Symbol Key
No. Playbus modules 1
Go
Gewiss Code GW30025
Description 1P NO - 16A illuminable
Type With symbol
Symbol Bell
No. Playbus modules 1
Go
Gewiss Code GW30026
Description 1P NO - 16A illuminable
Type With symbol
Symbol Light
No. Playbus modules 1
Go
Gewiss Code GW30027
Description 1P NO - 16A illuminable
Type With symbol
Symbol Stairs
No. Playbus modules 1
Go
Gewiss Code GW30028
Description 1P NO - 16A
Type With red diffusor 25 x 22.5 mm
Symbol -
No. Playbus modules 1
Go
Gewiss Code GW30029
Description 1P NO - 16A
Type With green diffusor 25 x 22.5 mm
Symbol -
No. Playbus modules 1
Go
Gewiss Code GW30030
Description 2P NO - 16A
Type General
Symbol 0
No. Playbus modules 1
Go
Gewiss Code GW30031
Description 2P NO - 16A
Type With pull-cord
Symbol -
No. Playbus modules 1
Go
Gewiss Code GW30032
Description 2P NO - 10A
Type With key
Symbol 0/1
No. Playbus modules 1
Go
Gewiss Code GW30033
Description 1P NO - 16A double button
Type Double button 25 x 22.5 mm
Symbol -
No. Playbus modules 1
Go
Gewiss Code GW30034
Description 1P NO+NO - 10A
Type With interlock
Symbol UP - DOWN
No. Playbus modules 1
Go
Gewiss Code GW30035
Description 1P NC - 16A
Type General
Symbol 0
No. Playbus modules 1
Go
Gewiss Code GW30036
Description 1P NO - 10A - Aux. NC
Type Start
Symbol Green
No. Playbus modules 1
Go
Gewiss Code GW30037
Description 1P NC - 10A - Aux. NO
Type Stop
Symbol Red
No. Playbus modules 1
Go
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Interchangeable push-buttons

Interchangeable push-buttons 25 x 45 mm
Interchangeable push-buttons 25 x 45 mm
Gewiss Code
Suitable for
Description

Gewiss Code GW30041
Suitable for General services
Description General (1 slot)
Go
Gewiss Code GW30056
Suitable for General services
Description General (2 slots)
Go
Gewiss Code GW30042
Suitable for General services
Description With label 13 x 19mm
Go
Gewiss Code GW30043
Suitable for Hotel services
Description Room service
Go
Gewiss Code GW30044
Suitable for Hotel services
Description Porter
Go
Gewiss Code GW30045
Suitable for Hotel services
Description Nurse
Go
Gewiss Code GW30046
Suitable for Technical services
Description Table lamp
Go
Gewiss Code GW30047
Suitable for Technical services
Description Dimmer
Go
Gewiss Code GW30048
Suitable for Technical services
Description Television
Go
Gewiss Code GW30049
Suitable for Technical services
Description Fan
Go
Gewiss Code GW30050
Suitable for Technical services
Description Music
Go
Gewiss Code GW30051
Suitable for Technical services
Description Computer
Go
Gewiss Code GW30052
Suitable for Technical services
Description Telephone
Go
Gewiss Code GW30053
Suitable for Technical services
Description Door/gate openig
Go
Gewiss Code GW30054
Suitable for Technical services
Description Door/gate closing
Go
Gewiss Code GW30055
Suitable for Technical services
Description Danger
Go
Gewiss Code GW30061
Suitable for Numerical services
Description One
Go
Gewiss Code GW30062
Suitable for Numerical services
Description Two
Go
Gewiss Code GW30063
Suitable for Numerical services
Description Three
Go
Gewiss Code GW30064
Suitable for Numerical services
Description Four
Go
Gewiss Code GW30065
Suitable for Numerical services
Description Five
Go
Gewiss Code GW30066
Suitable for Numerical services
Description Six
Go
Gewiss Code GW30067
Suitable for Numerical services
Description Seven
Go
Gewiss Code GW30068
Suitable for Numerical services
Description Eight
Go
Gewiss Code GW30069
Suitable for Numerical services
Description Nine
Go
Gewiss Code GW30070
Suitable for Numerical services
Description Zero
Go
EQUIPMENT AND NOTES
Interchangeable push-buttons 25 x 22.5 mm
Interchangeable push-buttons 25 x 22.5 mm
Gewiss Code
Suitable for
Description

Gewiss Code GW30071
Suitable for General services
Description General
Go
Gewiss Code GW30072
Suitable for General services
Description With label 13 x 19mm
Go
Gewiss Code GW30073
Suitable for Light indicator
Description Red diffuser
Go
Gewiss Code GW30074
Suitable for Light indicator
Description Green diffuser
Go
Gewiss Code GW30075
Suitable for Light indicator
Description Amber diffuser
Go
Gewiss Code GW30076
Suitable for Light indicator
Description Transparent diffuser
Go
Gewiss Code GW30077
Suitable for Light indicator
Description Blue diffuser
Go
Gewiss Code GW30078
Suitable for Technical services
Description Up/down arrow
Go
Gewiss Code GW30079
Suitable for Technical services
Description Left/right arrow
Go
Gewiss Code GW30080
Suitable for Technical services
Description Door/gate openig
Go
Gewiss Code GW30081
Suitable for Technical services
Description Door/gate closing
Go
Gewiss Code GW30082
Suitable for Technical services
Description Danger
Go
Gewiss Code GW30091
Suitable for Numerical services
Description One
Go
Gewiss Code GW30092
Suitable for Numerical services
Description Two
Go
Gewiss Code GW30093
Suitable for Numerical services
Description Three
Go
Gewiss Code GW30094
Suitable for Numerical services
Description Four
Go
Gewiss Code GW30095
Suitable for Numerical services
Description Five
Go
Gewiss Code GW30096
Suitable for Numerical services
Description Six
Go
Gewiss Code GW30097
Suitable for Numerical services
Description Seven
Go
Gewiss Code GW30098
Suitable for Numerical services
Description Eight
Go
Gewiss Code GW30099
Suitable for Numerical services
Description Nine
Go
Gewiss Code GW30100
Suitable for Numerical services
Description Zero
Go
EQUIPMENT AND NOTES

Blanking modules and cable outlet

EQUIPMENT AND NOTES

Infrared remote control and receivers

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

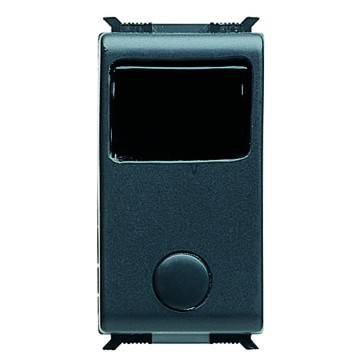

Infrared movement sensor

EQUIPMENT AND NOTES

Relay

EQUIPMENT AND NOTES

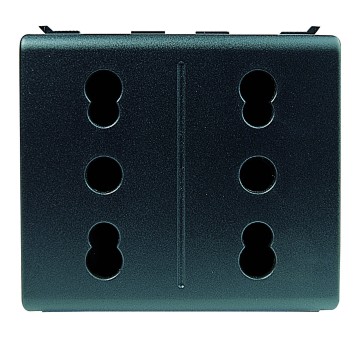

Socket-outlets - Italian standard

EQUIPMENT AND NOTES

Socket-outlets for dedicated lines

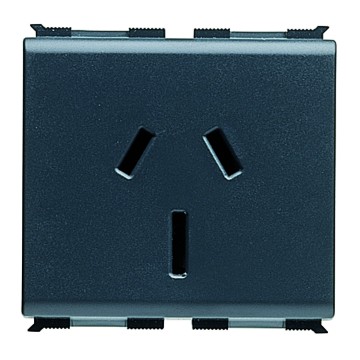

Socket-outlets - international standard

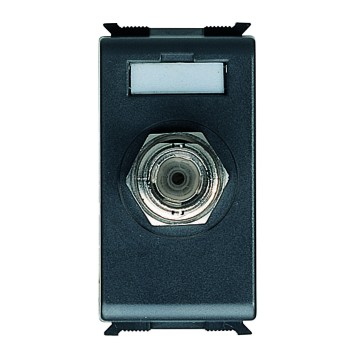

TV-SAT sockets

Coaxial TV-SAT sockets (5-2400 MHz) class A shielding F female connector
Coaxial TV-SAT sockets (5-2400 MHz) class A shielding F female connector
Gewiss Code
Description
Type
Attenuation
No. Playbus modules

Gewiss Code GW30311
Description Direct
Type With passage of current
Attenuation 0 dB
No. Playbus modules 1
Go
Gewiss Code GW30316
Description Feedtrough
Type -
Attenuation 5 dB
No. Playbus modules 1
Go
Gewiss Code GW30312
Description Feedtrough
Type -
Attenuation 10 dB
No. Playbus modules 1
Go
Gewiss Code GW30313
Description Feedtrough
Type -
Attenuation 14 dB
No. Playbus modules 1
Go
Gewiss Code GW20277
Description Terminal resistance 75 ohm
Type -
Attenuation -
No. Playbus modules -
Go
EQUIPMENT AND NOTES
Coaxial TV sockets (5-2400 MHz) class A shielding IEC male connector Ø 9.5 mm
Coaxial TV sockets (5-2400 MHz) class A shielding IEC male connector Ø 9.5 mm
Gewiss Code
Description
Type
Attenuation
No. Playbus modules

Gewiss Code GW30301
Description Direct
Type With passage of current
Attenuation 0 dB
No. Playbus modules 1
Go
Gewiss Code GW30306
Description Feedtrough
Type -
Attenuation 5 dB
No. Playbus modules 1
Go
Gewiss Code GW30302
Description Feedtrough
Type -
Attenuation 10 dB
No. Playbus modules 1
Go
Gewiss Code GW30303
Description Feedtrough
Type -
Attenuation 14 dB
No. Playbus modules 1
Go
Gewiss Code GW20277
Description Terminal resistance 75 ohm
Type -
Attenuation -
No. Playbus modules -
Go
EQUIPMENT AND NOTES

Telephone sockets

Data sockets

RJ45 sockets
RJ45 sockets
Gewiss Code
Description
No. pairs
Use category
Cables type
Connection
No. Playbus modules

EQUIPMENT AND NOTES

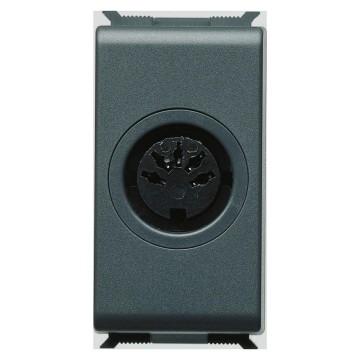

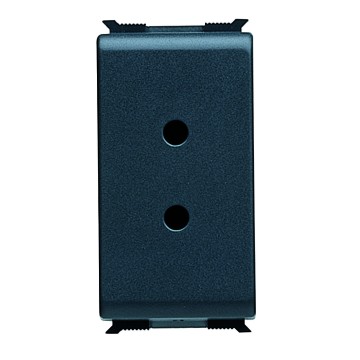

Socket-outlets for auxiliary and signal circuits

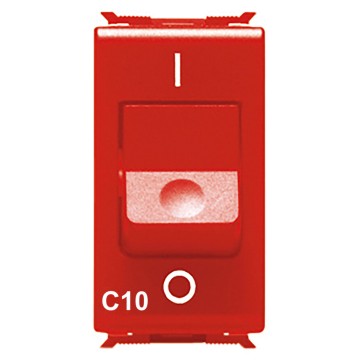

Miniature circuit breakers

Miniature circuit breakers - C characteristic - 230V ac
Miniature circuit breakers - C characteristic - 230V ac
Gewiss Code
Description
Rated current (A)
Breaking capacity
No. Playbus modules

Gewiss Code GW30371
Description Single pole (1P)
Rated current (A) 6
Breaking capacity 3 kA
No. Playbus modules 1
Go
Gewiss Code GW30372
Description Single pole (1P)
Rated current (A) 10
Breaking capacity 3 kA
No. Playbus modules 1
Go
Gewiss Code GW30373
Description Single pole (1P)
Rated current (A) 16
Breaking capacity 3 kA
No. Playbus modules 1
Go
Gewiss Code GW30374
Description Two-pole (1P+N)
Rated current (A) 6
Breaking capacity 3 kA
No. Playbus modules 1
Go
Gewiss Code GW30375
Description Two-pole (1P+N)
Rated current (A) 10
Breaking capacity 3 kA
No. Playbus modules 1
Go
Gewiss Code GW30376
Description Two-pole (1P+N)
Rated current (A) 16
Breaking capacity 3 kA
No. Playbus modules 1
Go
Residual current miniature circuit breakers - characteristic C - class A - 230V ac - 50/60 Hz
Residual current miniature circuit breakers - characteristic C - class A - 230V ac - 50/60 Hz
Gewiss Code
Description
Idn
Rated current (A)
Breaking capacity
No. Playbus modules

Gewiss Code GW30377
Description Two-pole (1P+N)
Idn 10 mA
Rated current (A) 6
Breaking capacity 3 kA
No. Playbus modules 2
Go
Gewiss Code GW30378
Description Two-pole (1P+N)
Idn 10 mA
Rated current (A) 10
Breaking capacity 3 kA
No. Playbus modules 2
Go
Gewiss Code GW30379
Description Two-pole (1P+N)
Idn 10 mA
Rated current (A) 16
Breaking capacity 3 kA
No. Playbus modules 2
Go
Gewiss Code GW30388
Description Two-pole (1P+N)
Idn 30 mA
Rated current (A) 6
Breaking capacity 3 kA
No. Playbus modules 2
Go
Gewiss Code GW30389
Description Two-pole (1P+N)
Idn 30 mA
Rated current (A) 10
Breaking capacity 3 kA
No. Playbus modules 2
Go
Gewiss Code GW30390
Description Two-pole (1P+N)
Idn 30 mA
Rated current (A) 16
Breaking capacity 3 kA
No. Playbus modules 2
Go

Protection devices

Anti black-out lamp

EQUIPMENT AND NOTES

Indicator light devices

Indicator lamps - 12/24/250V ac
Indicator lamps - 12/24/250V ac
Gewiss Code
Type
Diffuser colour
Diffuser meaning
Diffusor type
Fixing for lamp
No. Playbus modules

Gewiss Code GW30611
Type Single lamps
Diffuser colour Red
Diffuser meaning Danger
Diffusor type Flat
Fixing for lamp Cartridge
No. Playbus modules 1
Go
Gewiss Code GW30612
Type Single lamps
Diffuser colour Green
Diffuser meaning Safety
Diffusor type Flat
Fixing for lamp Cartridge
No. Playbus modules 1
Go
Gewiss Code GW30613
Type Single lamps
Diffuser colour Amber
Diffuser meaning Attention
Diffusor type Flat
Fixing for lamp Cartridge
No. Playbus modules 1
Go
Gewiss Code GW30614
Type Single lamps
Diffuser colour Transparent
Diffuser meaning Neutral
Diffusor type Flat
Fixing for lamp Cartridge
No. Playbus modules 1
Go
Gewiss Code GW30615
Type Single lamps
Diffuser colour Light blue
Diffuser meaning Specific
Diffusor type Flat
Fixing for lamp Cartridge
No. Playbus modules 1
Go
Gewiss Code GW30616
Type Double lamps
Diffuser colour Red/green
Diffuser meaning -
Diffusor type Flat
Fixing for lamp With wired lead
No. Playbus modules 1
Go
EQUIPMENT AND NOTES
Stair riser lamp with adjustable beam of light - 12/24V
Stair riser lamp with adjustable beam of light - 12/24V
EQUIPMENT AND NOTES

Acoustic signalling devices

Dimmer

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Temperature control devices

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Technical alarms

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Accessories

EQUIPMENT AND NOTES

Components for hotel systems

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Spare parts and accessories

Miniature lamps with quick coupling terminals
Miniature lamps with quick coupling terminals
Gewiss Code
Lamp voltage
Lamp power
Lamp
Light emitted

EQUIPMENT AND NOTES
Cartridge lamps
Cartridge lamps
Gewiss Code
Dimensions (mm)
Lamp voltage
Lamp power
Lamp
Light emitted

Gewiss Code GW20902
Dimensions (mm) S6x36
Lamp voltage 12V ac/dc
Lamp power 2 W
Lamp Incandescence
Light emitted White
Go
Gewiss Code GW20903
Dimensions (mm) S6x36
Lamp voltage 24V ac/dc
Lamp power 2 W
Lamp Incandescence
Light emitted White
Go
Gewiss Code GW20904
Dimensions (mm) S6x31
Lamp voltage 12V ac/dc
Lamp power 2 W
Lamp Incandescence
Light emitted White
Go
Gewiss Code GW20905
Dimensions (mm) S6x31
Lamp voltage 24V ac/dc
Lamp power 2 W
Lamp Incandescence
Light emitted White
Go
Gewiss Code GW20906
Dimensions (mm) S6.3x28
Lamp voltage 110 / 230V ac
Lamp power 0.4 W
Lamp Fluorescent
Light emitted Red
Go
Gewiss Code GW20908
Dimensions (mm) S6.3x28
Lamp voltage 110 / 230V ac
Lamp power 0.4 W
Lamp Fluorescent
Light emitted Green
Go
EQUIPMENT AND NOTES
Miniature fuses - 250V ac
Miniature fuses - 250V ac
Gewiss Code
Dimensions (mm)
Rated current (A)
Rated voltage

Gewiss Code GW20911
Dimensions (mm) Ø 5 x 20
Rated current (A) 2.5
Rated voltage 250V ac
Go
Gewiss Code GW20921
Dimensions (mm) Ø 6.3 x 32
Rated current (A) 2
Rated voltage 250V ac
Go
Gewiss Code GW20922
Dimensions (mm) Ø 6.3 x 32
Rated current (A) 4
Rated voltage 250V ac
Go
Gewiss Code GW20923
Dimensions (mm) Ø 6.3 x 32
Rated current (A) 6
Rated voltage 250V ac
Go
Gewiss Code GW20924
Dimensions (mm) Ø 6.3 x 32
Rated current (A) 10
Rated voltage 250V ac
Go
Gewiss Code GW20925
Dimensions (mm) Ø 6.3 x 32
Rated current (A) 16
Rated voltage 250V ac
Go
img fake

Customized solutions for you

PRODUCTS AND SOLUTIONS FOR YOUR NEEDS
Error sending request.
Please try again later!
Thank you!
Your request has been sent successfully
