SERIES DETAIL
SP Range<br />Supports &amp; accessories

SP Range
Supports & accessories

Profiles

Smooth rail 41
Smooth rail 41
Gewiss Code
Finishing
Description
Length (mm)
Thickness (mm)
Kg/u

Gewiss Code MV68110
Finishing Z275
Description 41x21 Standard rail
Length (mm) 3000
Thickness (mm) 2
Kg/u 4.29
Go
Gewiss Code MV68111
Finishing Z275
Description 41x21 Standard rail
Length (mm) 6000
Thickness (mm) 2
Kg/u 8.59
Go
Gewiss Code MV68105
Finishing Z275
Description Rail 41x41 Standard
Length (mm) 3030
Thickness (mm) 2.5
Kg/u 7.49
Go
Gewiss Code MV68106
Finishing Z275
Description Rail 41x41 Standard
Length (mm) 6000
Thickness (mm) 2.5
Kg/u 14.97
Go
Gewiss Code MV68115
Finishing Z275
Description Rail 41x41 Eco
Length (mm) 3000
Thickness (mm) 2
Kg/u 5.65
Go
Gewiss Code MV68116
Finishing Z275
Description Rail 41x41 Eco
Length (mm) 6000
Thickness (mm) 2
Kg/u 11.3
Go
Gewiss Code MV68210
Finishing GAC
Description 41x21 Standard rail
Length (mm) 3000
Thickness (mm) 2
Kg/u 4.29
Go
Gewiss Code MV68211
Finishing GAC
Description 41x21 Standard rail
Length (mm) 6000
Thickness (mm) 2
Kg/u 8.59
Go
Gewiss Code MV68205
Finishing GAC
Description Rail 41x41 Standard
Length (mm) 3030
Thickness (mm) 2.5
Kg/u 7.49
Go
Gewiss Code MV68206
Finishing GAC
Description Rail 41x41 Standard
Length (mm) 5990
Thickness (mm) 2.5
Kg/u 14.97
Go
Gewiss Code MV68215
Finishing GAC
Description Rail 41x41 Eco
Length (mm) 3040
Thickness (mm) 2
Kg/u 5.65
Go
Gewiss Code MV68216
Finishing GAC
Description Rail 41x41 Eco
Length (mm) 6000
Thickness (mm) 2
Kg/u 11.3
Go
Gewiss Code MV68230
Finishing GAC
Description 41x21 Double Standard rail
Length (mm) 3000
Thickness (mm) 2
Kg/u 8.59
Go
Gewiss Code MV68231
Finishing GAC
Description 41x21 Double Standard rail
Length (mm) 5990
Thickness (mm) 2
Kg/u 17.17
Go
Gewiss Code MV68225
Finishing GAC
Description 41x41 Double Standard rail
Length (mm) 3030
Thickness (mm) 2
Kg/u 14.97
Go
Gewiss Code MV68226
Finishing GAC
Description 41x41 Double Standard rail
Length (mm) 6000
Thickness (mm) 2
Kg/u 29.94
Go
Vertical support
Vertical support
Gewiss Code
Finishing
Length (mm)
Kg/u

Gewiss Code MV64170
Finishing Z275
Length (mm) 100
Kg/u 0.22
Go
Gewiss Code MV64171
Finishing Z275
Length (mm) 200
Kg/u 0.29
Go
Gewiss Code MV64172
Finishing Z275
Length (mm) 300
Kg/u 0.4
Go
Gewiss Code MV64173
Finishing Z275
Length (mm) 400
Kg/u 0.43
Go
Gewiss Code MV64174
Finishing Z275
Length (mm) 500
Kg/u 0.51
Go
Gewiss Code MV64295
Finishing GAC
Length (mm) 100
Kg/u 0.22
Go
Gewiss Code MV64296
Finishing GAC
Length (mm) 200
Kg/u 0.29
Go
Gewiss Code MV64297
Finishing GAC
Length (mm) 300
Kg/u 0.4
Go
Gewiss Code MV64298
Finishing GAC
Length (mm) 400
Kg/u 0.43
Go
Gewiss Code MV64299
Finishing GAC
Length (mm) 500
Kg/u 0.51
Go
Gewiss Code MV64670
Finishing Stainless steel 304L
Length (mm) 100
Kg/u 0.22
Go
Gewiss Code MV64671
Finishing Stainless steel 304L
Length (mm) 200
Kg/u 0.29
Go
Gewiss Code MV64672
Finishing Stainless steel 304L
Length (mm) 300
Kg/u 0.4
Go
Gewiss Code MV64673
Finishing Stainless steel 304L
Length (mm) 400
Kg/u 0.43
Go
Gewiss Code MV64674
Finishing Stainless steel 304L
Length (mm) 500
Kg/u 0.51
Go

Support light load

OMEGA support for light loads

OMEGA type pendant
OMEGA type pendant
Gewiss Code
Finishing
Length (mm)
Admittable load on brack (DaN/m)
Kg/u

Gewiss Code MV62100
Finishing Z275
Length (mm) 410
Admittable load on brack (DaN/m) 2
Kg/u 0.52
Go
Gewiss Code MV62101
Finishing Z275
Length (mm) 510
Admittable load on brack (DaN/m) 2
Kg/u 0.63
Go
Gewiss Code MV62102
Finishing Z275
Length (mm) 610
Admittable load on brack (DaN/m) 2
Kg/u 0.73
Go
Gewiss Code MV62200
Finishing GAC
Length (mm) 410
Admittable load on brack (DaN/m) 2
Kg/u 0.52
Go
Gewiss Code MV62201
Finishing GAC
Length (mm) 510
Admittable load on brack (DaN/m) 2
Kg/u 0.63
Go
Gewiss Code MV62202
Finishing GAC
Length (mm) 610
Admittable load on brack (DaN/m) 2
Kg/u 0.73
Go
Gewiss Code MV62600
Finishing Stainless steel 304L
Length (mm) 410
Admittable load on brack (DaN/m) 2
Kg/u 0.52
Go
Gewiss Code MV62601
Finishing Stainless steel 304L
Length (mm) 510
Admittable load on brack (DaN/m) 2
Kg/u 0.63
Go
Gewiss Code MV62602
Finishing Stainless steel 304L
Length (mm) 610
Admittable load on brack (DaN/m) 2
Kg/u 0.73
Go
Gewiss Code MV62800
Finishing Stainless steel 316L
Length (mm) 410
Admittable load on brack (DaN/m) 2
Kg/u 0.52
Go
Gewiss Code MV62801
Finishing Stainless steel 316L
Length (mm) 510
Admittable load on brack (DaN/m) 2
Kg/u 0.63
Go
Gewiss Code MV62802
Finishing Stainless steel 316L
Length (mm) 610
Admittable load on brack (DaN/m) 2
Kg/u 0.73
Go
EQUIPMENT AND NOTES
OMEGA type bracket
OMEGA type bracket
Gewiss Code
Finishing
Length (mm)
Max load (kg/bracket)
Kg/u

Gewiss Code MV60100
Finishing Z275
Length (mm) 110
Max load (kg/bracket) 50
Kg/u 0.2
Go
Gewiss Code MV60101
Finishing Z275
Length (mm) 210
Max load (kg/bracket) 50
Kg/u 0.31
Go
Gewiss Code MV60102
Finishing Z275
Length (mm) 310
Max load (kg/bracket) 30
Kg/u 0.41
Go
Gewiss Code MV60113
Finishing Z275
Length (mm) 410
Max load (kg/bracket) 130
Kg/u 0.64
Go
Gewiss Code MV60114
Finishing Z275
Length (mm) 510
Max load (kg/bracket) 130
Kg/u 0.79
Go
Gewiss Code MV60115
Finishing Z275
Length (mm) 610
Max load (kg/bracket) 100
Kg/u 0.93
Go
Gewiss Code MV60200
Finishing GAC
Length (mm) 110
Max load (kg/bracket) 50
Kg/u 0.2
Go
Gewiss Code MV60201
Finishing GAC
Length (mm) 210
Max load (kg/bracket) 50
Kg/u 0.31
Go
Gewiss Code MV60202
Finishing GAC
Length (mm) 310
Max load (kg/bracket) 30
Kg/u 0.41
Go
Gewiss Code MV60213
Finishing GAC
Length (mm) 410
Max load (kg/bracket) 130
Kg/u 0.64
Go
Gewiss Code MV60214
Finishing GAC
Length (mm) 510
Max load (kg/bracket) 130
Kg/u 0.79
Go
Gewiss Code MV60215
Finishing GAC
Length (mm) 610
Max load (kg/bracket) 100
Kg/u 0.93
Go
Gewiss Code MV60600
Finishing Stainless steel 304L
Length (mm) 110
Max load (kg/bracket) 50
Kg/u 0.2
Go
Gewiss Code MV60601
Finishing Stainless steel 304L
Length (mm) 210
Max load (kg/bracket) 50
Kg/u 0.31
Go
Gewiss Code MV60602
Finishing Stainless steel 304L
Length (mm) 310
Max load (kg/bracket) 30
Kg/u 0.41
Go
Gewiss Code MV60613
Finishing Stainless steel 304L
Length (mm) 410
Max load (kg/bracket) 130
Kg/u 0.64
Go
Gewiss Code MV60614
Finishing Stainless steel 304L
Length (mm) 510
Max load (kg/bracket) 130
Kg/u 0.79
Go
Gewiss Code MV60615
Finishing Stainless steel 304L
Length (mm) 610
Max load (kg/bracket) 100
Kg/u 0.93
Go
Gewiss Code MV60800
Finishing Stainless steel 316L
Length (mm) 110
Max load (kg/bracket) 50
Kg/u 0.2
Go
Gewiss Code MV60801
Finishing Stainless steel 316L
Length (mm) 210
Max load (kg/bracket) 50
Kg/u 0.31
Go
Gewiss Code MV60802
Finishing Stainless steel 316L
Length (mm) 310
Max load (kg/bracket) 30
Kg/u 0.41
Go
EQUIPMENT AND NOTES
OMEGA C-shaped pendant bracket
OMEGA C-shaped pendant bracket
Gewiss Code
Finishing
Dimensions LxH (mm)
Max load (kg/bracket)
Kg/u

Gewiss Code MV62110
Finishing Z275
Dimensions LxH (mm) 95x115
Max load (kg/bracket) 22
Kg/u 0.31
Go
Gewiss Code MV62111
Finishing Z275
Dimensions LxH (mm) 195x115
Max load (kg/bracket) 22
Kg/u 0.41
Go
Gewiss Code MV62112
Finishing Z275
Dimensions LxH (mm) 295x115
Max load (kg/bracket) 14
Kg/u 0.52
Go
Gewiss Code MV62140
Finishing Z275
Dimensions LxH (mm) 95x165
Max load (kg/bracket) 21
Kg/u 0.39
Go
Gewiss Code MV62141
Finishing Z275
Dimensions LxH (mm) 195x165
Max load (kg/bracket) 21
Kg/u 0.49
Go
Gewiss Code MV62142
Finishing Z275
Dimensions LxH (mm) 295x165
Max load (kg/bracket) 14
Kg/u 0.6
Go
Gewiss Code MV62113
Finishing Z275
Dimensions LxH (mm) 95x215
Max load (kg/bracket) 20
Kg/u 0.41
Go
Gewiss Code MV62114
Finishing Z275
Dimensions LxH (mm) 195x215
Max load (kg/bracket) 20
Kg/u 0.52
Go
Gewiss Code MV62115
Finishing Z275
Dimensions LxH (mm) 295x215
Max load (kg/bracket) 13
Kg/u 0.63
Go
Gewiss Code MV62116
Finishing Z275
Dimensions LxH (mm) 95x265
Max load (kg/bracket) 20
Kg/u 0.47
Go
Gewiss Code MV62117
Finishing Z275
Dimensions LxH (mm) 195x265
Max load (kg/bracket) 20
Kg/u 0.58
Go
Gewiss Code MV62118
Finishing Z275
Dimensions LxH (mm) 295x265
Max load (kg/bracket) 13
Kg/u 0.69
Go
Gewiss Code MV62210
Finishing GAC
Dimensions LxH (mm) 95x115
Max load (kg/bracket) 22
Kg/u 0.31
Go
Gewiss Code MV62211
Finishing GAC
Dimensions LxH (mm) 195x115
Max load (kg/bracket) 22
Kg/u 0.41
Go
Gewiss Code MV62212
Finishing GAC
Dimensions LxH (mm) 295x115
Max load (kg/bracket) 14
Kg/u 0.52
Go
Gewiss Code MV62240
Finishing GAC
Dimensions LxH (mm) 95x165
Max load (kg/bracket) 21
Kg/u 0.39
Go
Gewiss Code MV62241
Finishing GAC
Dimensions LxH (mm) 195x165
Max load (kg/bracket) 21
Kg/u 0.49
Go
Gewiss Code MV62242
Finishing GAC
Dimensions LxH (mm) 295x165
Max load (kg/bracket) 14
Kg/u 0.6
Go
Gewiss Code MV62213
Finishing GAC
Dimensions LxH (mm) 95x215
Max load (kg/bracket) 20
Kg/u 0.41
Go
Gewiss Code MV62214
Finishing GAC
Dimensions LxH (mm) 195x215
Max load (kg/bracket) 20
Kg/u 0.52
Go
Gewiss Code MV62215
Finishing GAC
Dimensions LxH (mm) 295x215
Max load (kg/bracket) 13
Kg/u 0.63
Go
Gewiss Code MV62216
Finishing GAC
Dimensions LxH (mm) 95x265
Max load (kg/bracket) 20
Kg/u 0.47
Go
Gewiss Code MV62217
Finishing GAC
Dimensions LxH (mm) 195x265
Max load (kg/bracket) 20
Kg/u 0.58
Go
Gewiss Code MV62218
Finishing GAC
Dimensions LxH (mm) 295x265
Max load (kg/bracket) 13
Kg/u 0.69
Go
Gewiss Code MV62610
Finishing Stainless steel 304L
Dimensions LxH (mm) 95x115
Max load (kg/bracket) 22
Kg/u 0.31
Go
Gewiss Code MV62611
Finishing Stainless steel 304L
Dimensions LxH (mm) 195x115
Max load (kg/bracket) 22
Kg/u 0.41
Go
Gewiss Code MV62612
Finishing Stainless steel 304L
Dimensions LxH (mm) 295x115
Max load (kg/bracket) 14
Kg/u 0.52
Go
Gewiss Code MV62640
Finishing Stainless steel 304L
Dimensions LxH (mm) 95x165
Max load (kg/bracket) 21
Kg/u 0.39
Go
Gewiss Code MV62641
Finishing Stainless steel 304L
Dimensions LxH (mm) 195x165
Max load (kg/bracket) 21
Kg/u 0.49
Go
Gewiss Code MV62642
Finishing Stainless steel 304L
Dimensions LxH (mm) 295x165
Max load (kg/bracket) 14
Kg/u 0.6
Go
Gewiss Code MV62613
Finishing Stainless steel 304L
Dimensions LxH (mm) 95x215
Max load (kg/bracket) 20
Kg/u 0.41
Go
Gewiss Code MV62614
Finishing Stainless steel 304L
Dimensions LxH (mm) 195x215
Max load (kg/bracket) 20
Kg/u 0.52
Go
Gewiss Code MV62615
Finishing Stainless steel 304L
Dimensions LxH (mm) 295x215
Max load (kg/bracket) 13
Kg/u 0.63
Go
Gewiss Code MV62616
Finishing Stainless steel 304L
Dimensions LxH (mm) 95x265
Max load (kg/bracket) 20
Kg/u 0.47
Go
Gewiss Code MV62617
Finishing Stainless steel 304L
Dimensions LxH (mm) 195x265
Max load (kg/bracket) 20
Kg/u 0.58
Go
Gewiss Code MV62618
Finishing Stainless steel 304L
Dimensions LxH (mm) 295x265
Max load (kg/bracket) 13
Kg/u 0.69
Go
Gewiss Code MV62810
Finishing Stainless steel 316L
Dimensions LxH (mm) 95x115
Max load (kg/bracket) 22
Kg/u 0.31
Go
Gewiss Code MV62811
Finishing Stainless steel 316L
Dimensions LxH (mm) 195x115
Max load (kg/bracket) 22
Kg/u 0.41
Go
Gewiss Code MV62812
Finishing Stainless steel 316L
Dimensions LxH (mm) 295x115
Max load (kg/bracket) 14
Kg/u 0.52
Go
Gewiss Code MV62840
Finishing Stainless steel 316L
Dimensions LxH (mm) 95x165
Max load (kg/bracket) 21
Kg/u 0.39
Go
Gewiss Code MV62841
Finishing Stainless steel 316L
Dimensions LxH (mm) 195x165
Max load (kg/bracket) 21
Kg/u 0.49
Go
Gewiss Code MV62842
Finishing Stainless steel 316L
Dimensions LxH (mm) 295x165
Max load (kg/bracket) 14
Kg/u 0.6
Go
EQUIPMENT AND NOTES

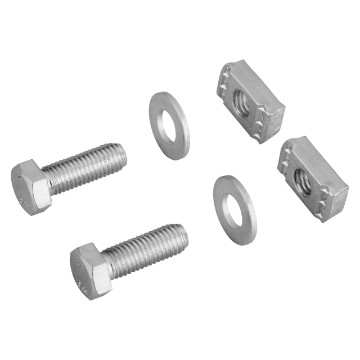

OMEGA bolts
OMEGA bolts
Gewiss Code
Finishing
Description
Dimension
Accessories supplied
Kg/u

Gewiss Code MV66122
Finishing EZ
Description TRCC bolt+nut
Dimension M10x30
Accessories supplied Nut + washer
Kg/u 4.3
Go
Gewiss Code MV66123
Finishing EZ
Description TRCC bolt+nut
Dimension M10x60
Accessories supplied Nut + washer
Kg/u 5.75
Go
Gewiss Code MV66222
Finishing Geomet
Description TRCC bolt+nut
Dimension M10x30
Accessories supplied Nut + washer
Kg/u 4.3
Go
Gewiss Code MV66223
Finishing Geomet
Description TRCC bolt+nut
Dimension M10x60
Accessories supplied Nut + washer
Kg/u 5.75
Go
Gewiss Code MV66622
Finishing Stainless steel 304L
Description TRCC bolt+nut
Dimension M10x30
Accessories supplied Nut + washer
Kg/u 4.3
Go
Gewiss Code MV66623
Finishing Stainless steel 304L
Description TRCC bolt+nut
Dimension M10x60
Accessories supplied Nut + washer
Kg/u 5.75
Go
Gewiss Code MV66822
Finishing Stainless steel 316L
Description TRCC bolt+nut
Dimension M10x30
Accessories supplied Nut + washer
Kg/u 4.3
Go
Gewiss Code MV66823
Finishing Stainless steel 316L
Description TRCC bolt+nut
Dimension M10x60
Accessories supplied Nut + washer
Kg/u 5.75
Go
Wall and ceiling pressure spacer for OMEGA type profiles
Wall and ceiling pressure spacer for OMEGA type profiles

Supporting

EDF 40 slider
EDF 40 slider
Gewiss Code
Finishing
Thickness (mm)
Length (mm)
Kg/u

Gewiss Code MV62120
Finishing Z275
Thickness (mm) 1.5
Length (mm) 250
Kg/u 0.28
Go
Gewiss Code MV62121
Finishing Z275
Thickness (mm) 1.5
Length (mm) 500
Kg/u 0.55
Go
Gewiss Code MV62122
Finishing Z275
Thickness (mm) 1.5
Length (mm) 1000
Kg/u 1.1
Go
Gewiss Code MV62123
Finishing Z275
Thickness (mm) 2
Length (mm) 1500
Kg/u 2.21
Go
Gewiss Code MV62124
Finishing Z275
Thickness (mm) 2
Length (mm) 2000
Kg/u 2.94
Go
Gewiss Code MV62220
Finishing GAC
Thickness (mm) 1.5
Length (mm) 250
Kg/u 0.28
Go
Gewiss Code MV62221
Finishing GAC
Thickness (mm) 1.5
Length (mm) 500
Kg/u 0.55
Go
Gewiss Code MV62222
Finishing GAC
Thickness (mm) 1.5
Length (mm) 1000
Kg/u 1.1
Go
Gewiss Code MV62223
Finishing GAC
Thickness (mm) 2
Length (mm) 1500
Kg/u 2.21
Go
Gewiss Code MV62224
Finishing GAC
Thickness (mm) 2
Length (mm) 2000
Kg/u 2.94
Go
Gewiss Code MV62620
Finishing Stainless steel 304L
Thickness (mm) 1.5
Length (mm) 250
Kg/u 0.28
Go
Gewiss Code MV62621
Finishing Stainless steel 304L
Thickness (mm) 1.5
Length (mm) 500
Kg/u 0.55
Go
Gewiss Code MV62622
Finishing Stainless steel 304L
Thickness (mm) 1.5
Length (mm) 1000
Kg/u 1.1
Go
Gewiss Code MV62623
Finishing Stainless steel 304L
Thickness (mm) 1.5
Length (mm) 1500
Kg/u 2.21
Go
Gewiss Code MV62624
Finishing Stainless steel 304L
Thickness (mm) 1.5
Length (mm) 2000
Kg/u 2.94
Go
EQUIPMENT AND NOTES
EDF 40 bracket
EDF 40 bracket
Gewiss Code
Finishing
Length (mm)
Height (mm)
Max load (kg/bracket)
Kg/u

Gewiss Code MV60130
Finishing Z275
Length (mm) 150
Height (mm) 80
Max load (kg/bracket) 85
Kg/u 0.12
Go
Gewiss Code MV60131
Finishing Z275
Length (mm) 200
Height (mm) 80
Max load (kg/bracket) 85
Kg/u 0.2
Go
Gewiss Code MV60132
Finishing Z275
Length (mm) 250
Height (mm) 80
Max load (kg/bracket) 85
Kg/u 0.25
Go
Gewiss Code MV60133
Finishing Z275
Length (mm) 350
Height (mm) 95
Max load (kg/bracket) 100
Kg/u 0.49
Go
Gewiss Code MV60134
Finishing Z275
Length (mm) 450
Height (mm) 95
Max load (kg/bracket) 90
Kg/u 0.85
Go
Gewiss Code MV60135
Finishing Z275
Length (mm) 550
Height (mm) 95
Max load (kg/bracket) 85
Kg/u 1.04
Go
Gewiss Code MV60230
Finishing GAC
Length (mm) 150
Height (mm) 80
Max load (kg/bracket) 85
Kg/u 0.12
Go
Gewiss Code MV60231
Finishing GAC
Length (mm) 200
Height (mm) 80
Max load (kg/bracket) 85
Kg/u 0.2
Go
Gewiss Code MV60232
Finishing GAC
Length (mm) 250
Height (mm) 80
Max load (kg/bracket) 85
Kg/u 0.25
Go
Gewiss Code MV60233
Finishing GAC
Length (mm) 350
Height (mm) 95
Max load (kg/bracket) 100
Kg/u 0.49
Go
Gewiss Code MV60234
Finishing GAC
Length (mm) 450
Height (mm) 95
Max load (kg/bracket) 90
Kg/u 0.85
Go
Gewiss Code MV60235
Finishing GAC
Length (mm) 550
Height (mm) 95
Max load (kg/bracket) 85
Kg/u 1.04
Go
Gewiss Code MV60630
Finishing Stainless steel 304L
Length (mm) 150
Height (mm) 80
Max load (kg/bracket) 85
Kg/u 0.12
Go
Gewiss Code MV60631
Finishing Stainless steel 304L
Length (mm) 200
Height (mm) 80
Max load (kg/bracket) 85
Kg/u 0.2
Go
Gewiss Code MV60632
Finishing Stainless steel 304L
Length (mm) 250
Height (mm) 80
Max load (kg/bracket) 85
Kg/u 0.25
Go
Gewiss Code MV60633
Finishing Stainless steel 304L
Length (mm) 350
Height (mm) 95
Max load (kg/bracket) 100
Kg/u 0.49
Go
Gewiss Code MV60634
Finishing Stainless steel 304L
Length (mm) 450
Height (mm) 95
Max load (kg/bracket) 90
Kg/u 0.85
Go
Gewiss Code MV60635
Finishing Stainless steel 304L
Length (mm) 550
Height (mm) 95
Max load (kg/bracket) 85
Kg/u 1.04
Go
EQUIPMENT AND NOTES

Accessories

C40 PLURIEL supports

C40 PLURIEL type fast connecting rail
C40 PLURIEL type fast connecting rail
Gewiss Code
Finishing
Length (mm)
Kg/u

Gewiss Code MV65190
Finishing Z275
Length (mm) 200
Kg/u 0.28
Go
Gewiss Code MV65195
Finishing Z275
Length (mm) 400
Kg/u 0.56
Go
Gewiss Code MV65191
Finishing Z275
Length (mm) 500
Kg/u 0.69
Go
Gewiss Code MV65196
Finishing Z275
Length (mm) 600
Kg/u 0.84
Go
Gewiss Code MV65197
Finishing Z275
Length (mm) 800
Kg/u 1.12
Go
Gewiss Code MV65192
Finishing Z275
Length (mm) 1000
Kg/u 1.4
Go
Gewiss Code MV65198
Finishing Z275
Length (mm) 1500
Kg/u 2.11
Go
Gewiss Code MV65193
Finishing Z275
Length (mm) 2000
Kg/u 2.8
Go
Gewiss Code MV65194
Finishing Z275
Length (mm) 3000
Kg/u 4.18
Go
Gewiss Code MV65790
Finishing HP
Length (mm) 200
Kg/u 0.28
Go
Gewiss Code MV65795
Finishing HP
Length (mm) 400
Kg/u 0.56
Go
Gewiss Code MV65791
Finishing HP
Length (mm) 500
Kg/u 0.69
Go
Gewiss Code MV65796
Finishing HP
Length (mm) 600
Kg/u 0.84
Go
Gewiss Code MV65797
Finishing HP
Length (mm) 800
Kg/u 1.12
Go
Gewiss Code MV65792
Finishing HP
Length (mm) 1000
Kg/u 1.4
Go
Gewiss Code MV65798
Finishing HP
Length (mm) 1500
Kg/u 2.11
Go
Gewiss Code MV65793
Finishing HP
Length (mm) 2000
Kg/u 2.8
Go
Gewiss Code MV65794
Finishing HP
Length (mm) 3000
Kg/u 4.18
Go
Gewiss Code MV65690
Finishing Stainless steel 304L
Length (mm) 200
Kg/u 0.28
Go
Gewiss Code MV65695
Finishing Stainless steel 304L
Length (mm) 400
Kg/u 0.56
Go
Gewiss Code MV65691
Finishing Stainless steel 304L
Length (mm) 500
Kg/u 0.69
Go
Gewiss Code MV65692
Finishing Stainless steel 304L
Length (mm) 1000
Kg/u 1.4
Go
Gewiss Code MV65693
Finishing Stainless steel 304L
Length (mm) 2000
Kg/u 2.8
Go
Gewiss Code MV65694
Finishing Stainless steel 304L
Length (mm) 3000
Kg/u 4.18
Go
Gewiss Code MV65890
Finishing Stainless steel 316L
Length (mm) 200
Kg/u 0.28
Go
Gewiss Code MV65895
Finishing Stainless steel 316L
Length (mm) 400
Kg/u 0.56
Go
Gewiss Code MV65891
Finishing Stainless steel 316L
Length (mm) 500
Kg/u 0.69
Go
Gewiss Code MV65892
Finishing Stainless steel 316L
Length (mm) 1000
Kg/u 1.4
Go
Gewiss Code MV65893
Finishing Stainless steel 316L
Length (mm) 2000
Kg/u 2.8
Go
Gewiss Code MV65894
Finishing Stainless steel 316L
Length (mm) 3000
Kg/u 4.18
Go
EQUIPMENT AND NOTES
Pre-assembled C40 pendant
Pre-assembled C40 pendant
Gewiss Code
Finishing
Length (mm)
daN.m
Kg/u

Gewiss Code MV63155
Finishing Z275
Length (mm) 400
daN.m 20
Kg/u 1.07
Go
Gewiss Code MV63151
Finishing Z275
Length (mm) 500
daN.m 20
Kg/u 1.21
Go
Gewiss Code MV63156
Finishing Z275
Length (mm) 600
daN.m 18
Kg/u 1.35
Go
Gewiss Code MV63157
Finishing Z275
Length (mm) 800
daN.m 18
Kg/u 1.63
Go
Gewiss Code MV63152
Finishing Z275
Length (mm) 1000
daN.m 14.5
Kg/u 1.92
Go
Gewiss Code MV63158
Finishing Z275
Length (mm) 1500
daN.m -
Kg/u 2.62
Go
Gewiss Code MV63755
Finishing HP
Length (mm) 400
daN.m 20
Kg/u 1.07
Go
Gewiss Code MV63751
Finishing HP
Length (mm) 500
daN.m 20
Kg/u 1.21
Go
Gewiss Code MV63756
Finishing HP
Length (mm) 600
daN.m 18
Kg/u 1.35
Go
Gewiss Code MV63757
Finishing HP
Length (mm) 800
daN.m 18
Kg/u 1.63
Go
Gewiss Code MV63752
Finishing HP
Length (mm) 1000
daN.m 14.5
Kg/u 1.92
Go
Gewiss Code MV63758
Finishing HP
Length (mm) 1500
daN.m -
Kg/u 2.62
Go
Universal bracket with CSUG clips
Universal bracket with CSUG clips
Gewiss Code
Finishing
Length (mm)
Max load (kg/bracket)
Kg/u

Gewiss Code MV60190
Finishing Z275
Length (mm) 100
Max load (kg/bracket) 140
Kg/u 0.26
Go
Gewiss Code MV60191
Finishing Z275
Length (mm) 150
Max load (kg/bracket) 112
Kg/u 0.31
Go
Gewiss Code MV60192
Finishing Z275
Length (mm) 200
Max load (kg/bracket) 70
Kg/u 0.36
Go
Gewiss Code MV60194
Finishing Z275
Length (mm) 300
Max load (kg/bracket) 80
Kg/u 0.54
Go
Gewiss Code MV60195
Finishing Z275
Length (mm) 400
Max load (kg/bracket) 70
Kg/u 0.66
Go
Gewiss Code MV60790
Finishing HP
Length (mm) 100
Max load (kg/bracket) 140
Kg/u 0.26
Go
Gewiss Code MV60791
Finishing HP
Length (mm) 150
Max load (kg/bracket) 112
Kg/u 0.31
Go
Gewiss Code MV60792
Finishing HP
Length (mm) 200
Max load (kg/bracket) 70
Kg/u 0.36
Go
Gewiss Code MV60794
Finishing HP
Length (mm) 300
Max load (kg/bracket) 80
Kg/u 0.54
Go
Gewiss Code MV60795
Finishing HP
Length (mm) 400
Max load (kg/bracket) 70
Kg/u 0.66
Go
Gewiss Code MV60690
Finishing Stainless steel 304L
Length (mm) 100
Max load (kg/bracket) 140
Kg/u 0.26
Go
Gewiss Code MV60691
Finishing Stainless steel 304L
Length (mm) 150
Max load (kg/bracket) 112
Kg/u 0.31
Go
Gewiss Code MV60692
Finishing Stainless steel 304L
Length (mm) 200
Max load (kg/bracket) 70
Kg/u 0.36
Go
Gewiss Code MV60694
Finishing Stainless steel 304L
Length (mm) 300
Max load (kg/bracket) 80
Kg/u 0.54
Go
Gewiss Code MV60695
Finishing Stainless steel 304L
Length (mm) 400
Max load (kg/bracket) 70
Kg/u 0.66
Go
Gewiss Code MV60890
Finishing Stainless steel 316L
Length (mm) 100
Max load (kg/bracket) 140
Kg/u 0.26
Go
Gewiss Code MV60891
Finishing Stainless steel 316L
Length (mm) 150
Max load (kg/bracket) 112
Kg/u 0.31
Go
Gewiss Code MV60892
Finishing Stainless steel 316L
Length (mm) 200
Max load (kg/bracket) 70
Kg/u 0.36
Go
Gewiss Code MV60894
Finishing Stainless steel 316L
Length (mm) 300
Max load (kg/bracket) 80
Kg/u 0.54
Go
Gewiss Code MV60895
Finishing Stainless steel 316L
Length (mm) 400
Max load (kg/bracket) 70
Kg/u 0.66
Go
EQUIPMENT AND NOTES

CSU universal supports

CSUM wall mounted universal bracket
CSUM wall mounted universal bracket
Gewiss Code
Finishing
Length (mm)
Max load (kg/bracket)
Kg/u

Gewiss Code MV60180
Finishing Z275
Length (mm) 100
Max load (kg/bracket) 140
Kg/u 0.26
Go
Gewiss Code MV60181
Finishing Z275
Length (mm) 150
Max load (kg/bracket) 112
Kg/u 0.3
Go
Gewiss Code MV60182
Finishing Z275
Length (mm) 200
Max load (kg/bracket) 70
Kg/u 0.36
Go
Gewiss Code MV60184
Finishing Z275
Length (mm) 300
Max load (kg/bracket) 80
Kg/u 0.53
Go
Gewiss Code MV60185
Finishing Z275
Length (mm) 400
Max load (kg/bracket) 70
Kg/u 0.65
Go
Gewiss Code MV60280
Finishing GAC
Length (mm) 100
Max load (kg/bracket) 140
Kg/u 0.26
Go
Gewiss Code MV60281
Finishing GAC
Length (mm) 150
Max load (kg/bracket) 112
Kg/u 0.3
Go
Gewiss Code MV60282
Finishing GAC
Length (mm) 200
Max load (kg/bracket) 70
Kg/u 0.36
Go
Gewiss Code MV60284
Finishing GAC
Length (mm) 300
Max load (kg/bracket) 80
Kg/u 0.53
Go
Gewiss Code MV60285
Finishing GAC
Length (mm) 400
Max load (kg/bracket) 70
Kg/u 0.65
Go
Gewiss Code MV60780
Finishing HP
Length (mm) 100
Max load (kg/bracket) 140
Kg/u 0.26
Go
Gewiss Code MV60781
Finishing HP
Length (mm) 150
Max load (kg/bracket) 112
Kg/u 0.3
Go
Gewiss Code MV60782
Finishing HP
Length (mm) 200
Max load (kg/bracket) 70
Kg/u 0.36
Go
Gewiss Code MV60784
Finishing HP
Length (mm) 300
Max load (kg/bracket) 80
Kg/u 0.53
Go
Gewiss Code MV60785
Finishing HP
Length (mm) 400
Max load (kg/bracket) 70
Kg/u 0.65
Go
Gewiss Code MV60680
Finishing Stainless steel 304L
Length (mm) 100
Max load (kg/bracket) 140
Kg/u 0.26
Go
Gewiss Code MV60681
Finishing Stainless steel 304L
Length (mm) 150
Max load (kg/bracket) 112
Kg/u 0.3
Go
Gewiss Code MV60682
Finishing Stainless steel 304L
Length (mm) 200
Max load (kg/bracket) 70
Kg/u 0.36
Go
Gewiss Code MV60684
Finishing Stainless steel 304L
Length (mm) 300
Max load (kg/bracket) 80
Kg/u 0.53
Go
Gewiss Code MV60685
Finishing Stainless steel 304L
Length (mm) 400
Max load (kg/bracket) 70
Kg/u 0.65
Go
Gewiss Code MV60880
Finishing Stainless steel 316L
Length (mm) 100
Max load (kg/bracket) 140
Kg/u 0.26
Go
Gewiss Code MV60881
Finishing Stainless steel 316L
Length (mm) 150
Max load (kg/bracket) 112
Kg/u 0.3
Go
Gewiss Code MV60882
Finishing Stainless steel 316L
Length (mm) 200
Max load (kg/bracket) 70
Kg/u 0.36
Go
Gewiss Code MV60884
Finishing Stainless steel 316L
Length (mm) 300
Max load (kg/bracket) 80
Kg/u 0.53
Go
Gewiss Code MV60885
Finishing Stainless steel 316L
Length (mm) 400
Max load (kg/bracket) 70
Kg/u 0.65
Go
EQUIPMENT AND NOTES
CSUC C-shaped universal bracket
CSUC C-shaped universal bracket
Gewiss Code
Finishing
H1
Length (mm)
H2
Max load (kg/bracket)
Kg/u

Gewiss Code MV62150
Finishing Z275
H1 150
Length (mm) 100
H2 85
Max load (kg/bracket) 127
Kg/u 0.47
Go
Gewiss Code MV62151
Finishing Z275
H1 150
Length (mm) 150
H2 85
Max load (kg/bracket) 94
Kg/u 0.52
Go
Gewiss Code MV62152
Finishing Z275
H1 150
Length (mm) 200
H2 85
Max load (kg/bracket) 74,5
Kg/u 0.57
Go
Gewiss Code MV62154
Finishing Z275
H1 150
Length (mm) 300
H2 85
Max load (kg/bracket) 61
Kg/u 0.78
Go
Gewiss Code MV62155
Finishing Z275
H1 150
Length (mm) 400
H2 85
Max load (kg/bracket) 47
Kg/u 0.9
Go
Gewiss Code MV62156
Finishing Z275
H1 200
Length (mm) 100
H2 135
Max load (kg/bracket) 127
Kg/u 0.53
Go
Gewiss Code MV62157
Finishing Z275
H1 200
Length (mm) 150
H2 135
Max load (kg/bracket) 94
Kg/u 0.58
Go
Gewiss Code MV62158
Finishing Z275
H1 200
Length (mm) 200
H2 135
Max load (kg/bracket) 74,5
Kg/u 0.63
Go
Gewiss Code MV62160
Finishing Z275
H1 200
Length (mm) 300
H2 135
Max load (kg/bracket) 61
Kg/u 0.85
Go
Gewiss Code MV62161
Finishing Z275
H1 200
Length (mm) 400
H2 135
Max load (kg/bracket) 47
Kg/u 0.97
Go
Gewiss Code MV62250
Finishing GAC
H1 150
Length (mm) 100
H2 85
Max load (kg/bracket) 127
Kg/u 0.47
Go
Gewiss Code MV62251
Finishing GAC
H1 150
Length (mm) 150
H2 85
Max load (kg/bracket) 94
Kg/u 0.52
Go
Gewiss Code MV62252
Finishing GAC
H1 150
Length (mm) 200
H2 85
Max load (kg/bracket) 74,5
Kg/u 0.57
Go
Gewiss Code MV62254
Finishing GAC
H1 150
Length (mm) 300
H2 85
Max load (kg/bracket) 61
Kg/u 0.78
Go
Gewiss Code MV62255
Finishing GAC
H1 150
Length (mm) 400
H2 85
Max load (kg/bracket) 47
Kg/u 0.9
Go
Gewiss Code MV62256
Finishing GAC
H1 200
Length (mm) 100
H2 135
Max load (kg/bracket) 127
Kg/u 0.53
Go
Gewiss Code MV62257
Finishing GAC
H1 200
Length (mm) 150
H2 135
Max load (kg/bracket) 94
Kg/u 0.58
Go
Gewiss Code MV62258
Finishing GAC
H1 200
Length (mm) 200
H2 135
Max load (kg/bracket) 74,5
Kg/u 0.63
Go
Gewiss Code MV62260
Finishing GAC
H1 200
Length (mm) 300
H2 135
Max load (kg/bracket) 61
Kg/u 0.85
Go
Gewiss Code MV62261
Finishing GAC
H1 200
Length (mm) 400
H2 135
Max load (kg/bracket) 47
Kg/u 0.97
Go
Gewiss Code MV62750
Finishing HP
H1 150
Length (mm) 100
H2 85
Max load (kg/bracket) 127
Kg/u 0.47
Go
Gewiss Code MV62751
Finishing HP
H1 150
Length (mm) 150
H2 85
Max load (kg/bracket) 94
Kg/u 0.52
Go
Gewiss Code MV62752
Finishing HP
H1 150
Length (mm) 200
H2 85
Max load (kg/bracket) 74,5
Kg/u 0.57
Go
Gewiss Code MV62754
Finishing HP
H1 150
Length (mm) 300
H2 85
Max load (kg/bracket) 61
Kg/u 0.78
Go
Gewiss Code MV62755
Finishing HP
H1 150
Length (mm) 400
H2 85
Max load (kg/bracket) 47
Kg/u 0.9
Go
Gewiss Code MV62756
Finishing HP
H1 200
Length (mm) 100
H2 135
Max load (kg/bracket) 127
Kg/u 0.53
Go
Gewiss Code MV62757
Finishing HP
H1 200
Length (mm) 150
H2 135
Max load (kg/bracket) 94
Kg/u 0.58
Go
Gewiss Code MV62758
Finishing HP
H1 200
Length (mm) 200
H2 135
Max load (kg/bracket) 74,5
Kg/u 0.63
Go
Gewiss Code MV62760
Finishing HP
H1 200
Length (mm) 300
H2 135
Max load (kg/bracket) 61
Kg/u 0.85
Go
Gewiss Code MV62761
Finishing HP
H1 200
Length (mm) 400
H2 135
Max load (kg/bracket) 47
Kg/u 0.97
Go
Gewiss Code MV62650
Finishing Stainless steel 304L
H1 150
Length (mm) 100
H2 85
Max load (kg/bracket) 127
Kg/u 0.47
Go
Gewiss Code MV62651
Finishing Stainless steel 304L
H1 150
Length (mm) 150
H2 85
Max load (kg/bracket) 94
Kg/u 0.52
Go
Gewiss Code MV62652
Finishing Stainless steel 304L
H1 150
Length (mm) 200
H2 85
Max load (kg/bracket) 74,5
Kg/u 0.57
Go
Gewiss Code MV62654
Finishing Stainless steel 304L
H1 150
Length (mm) 300
H2 85
Max load (kg/bracket) 61
Kg/u 0.78
Go
Gewiss Code MV62655
Finishing Stainless steel 304L
H1 150
Length (mm) 400
H2 85
Max load (kg/bracket) 47
Kg/u 0.9
Go
Gewiss Code MV62656
Finishing Stainless steel 304L
H1 200
Length (mm) 100
H2 135
Max load (kg/bracket) 127
Kg/u 0.53
Go
Gewiss Code MV62657
Finishing Stainless steel 304L
H1 200
Length (mm) 150
H2 135
Max load (kg/bracket) 94
Kg/u 0.58
Go
Gewiss Code MV62658
Finishing Stainless steel 304L
H1 200
Length (mm) 200
H2 135
Max load (kg/bracket) 74,5
Kg/u 0.63
Go
Gewiss Code MV62660
Finishing Stainless steel 304L
H1 200
Length (mm) 300
H2 135
Max load (kg/bracket) 61
Kg/u 0.85
Go
Gewiss Code MV62661
Finishing Stainless steel 304L
H1 200
Length (mm) 400
H2 135
Max load (kg/bracket) 47
Kg/u 0.97
Go
Gewiss Code MV62850
Finishing Stainless steel 316L
H1 150
Length (mm) 100
H2 85
Max load (kg/bracket) 127
Kg/u 0.47
Go
Gewiss Code MV62851
Finishing Stainless steel 316L
H1 150
Length (mm) 150
H2 85
Max load (kg/bracket) 94
Kg/u 0.52
Go
Gewiss Code MV62852
Finishing Stainless steel 316L
H1 150
Length (mm) 200
H2 85
Max load (kg/bracket) 74,5
Kg/u 0.57
Go
Gewiss Code MV62854
Finishing Stainless steel 316L
H1 150
Length (mm) 300
H2 85
Max load (kg/bracket) 61
Kg/u 0.78
Go
Gewiss Code MV62855
Finishing Stainless steel 316L
H1 150
Length (mm) 400
H2 85
Max load (kg/bracket) 47
Kg/u 0.9
Go
Gewiss Code MV62856
Finishing Stainless steel 316L
H1 200
Length (mm) 100
H2 135
Max load (kg/bracket) 127
Kg/u 0.53
Go
Gewiss Code MV62857
Finishing Stainless steel 316L
H1 200
Length (mm) 150
H2 135
Max load (kg/bracket) 94
Kg/u 0.58
Go
Gewiss Code MV62858
Finishing Stainless steel 316L
H1 200
Length (mm) 200
H2 135
Max load (kg/bracket) 74,5
Kg/u 0.63
Go
Gewiss Code MV62860
Finishing Stainless steel 316L
H1 200
Length (mm) 300
H2 135
Max load (kg/bracket) 61
Kg/u 0.85
Go
Gewiss Code MV62861
Finishing Stainless steel 316L
H1 200
Length (mm) 400
H2 135
Max load (kg/bracket) 47
Kg/u 0.97
Go
Bolts for CSU supports
Bolts for CSU supports
Gewiss Code
Finishing
Description
Dimension

Gewiss Code MV66113
Finishing EZ
Description Hexagon head screw
Dimension M10x20
Go
Gewiss Code MV66409
Finishing EZ
Description Hexagon head screw
Dimension M 10x80
Go
Gewiss Code MV66474
Finishing EZ/Z275
Description Washer LL 10
Dimension M10
Go
Gewiss Code MV64153
Finishing EZ/Z275
Description Bracket spacer
Dimension -
Go
Gewiss Code MV66213
Finishing Geomet
Description Hexagon head screw
Dimension M10x20
Go
Gewiss Code MV66209
Finishing Geomet
Description Hexagon head screw
Dimension M 10x80
Go
Gewiss Code MV66274
Finishing Geomet/GAC
Description Washer LL 10
Dimension M10
Go
Gewiss Code MV64253
Finishing Geomet/GAC
Description Bracket spacer
Dimension -
Go
Gewiss Code MV66813
Finishing Stainless steel 316L
Description Hexagon head screw
Dimension M10x20
Go
Gewiss Code MV66809
Finishing Stainless steel 316L
Description Hexagon head screw
Dimension M 10x80
Go
Gewiss Code MV66874
Finishing Stainless steel 316L
Description Washer LL 10
Dimension M10
Go
Gewiss Code MV64853
Finishing Stainless steel 316L
Description Bracket spacer
Dimension -
Go

MAVISTRUT type heavy load supports

MAVISTRUT notched pendant
MAVISTRUT notched pendant
Gewiss Code
Finishing
Description
Type
Length (mm)
daN.m
Fixing centre distance
Kg/u

Gewiss Code MV81403
Finishing EZ
Description 41x29 pendant
Type Simple
Length (mm) 390
daN.m 24
Fixing centre distance 145
Kg/u 1.04
Go
Gewiss Code MV81406
Finishing EZ
Description 41x29 pendant
Type Simple
Length (mm) 630
daN.m 24
Fixing centre distance 145
Kg/u 1.39
Go
Gewiss Code MV81453
Finishing EZ
Description 41x29 pendant
Type Double
Length (mm) 390
daN.m 29
Fixing centre distance 170
Kg/u 1.64
Go
Gewiss Code MV81456
Finishing EZ
Description 41x29 pendant
Type Double
Length (mm) 630
daN.m 29
Fixing centre distance 170
Kg/u 2.34
Go
Gewiss Code MV81415
Finishing EZ
Description 41x41 pendant
Type Simple
Length (mm) 550
daN.m 57
Fixing centre distance 155
Kg/u 1.73
Go
Gewiss Code MV81418
Finishing EZ
Description 41x41 pendant
Type Simple
Length (mm) 790
daN.m 57
Fixing centre distance 155
Kg/u 2.27
Go
Gewiss Code MV81421
Finishing EZ
Description 41x41 pendant
Type Simple
Length (mm) 1030
daN.m 57
Fixing centre distance 155
Kg/u 2.81
Go
Gewiss Code MV81427
Finishing EZ
Description 41x41 pendant
Type Simple
Length (mm) 1510
daN.m 57
Fixing centre distance 155
Kg/u 3.9
Go
Gewiss Code MV81465
Finishing EZ
Description 41x41 pendant
Type Double
Length (mm) 550
daN.m 73
Fixing centre distance 195
Kg/u 3.01
Go
Gewiss Code MV81468
Finishing EZ
Description 41x41 pendant
Type Double
Length (mm) 790
daN.m 73
Fixing centre distance 195
Kg/u 4.1
Go
Gewiss Code MV81471
Finishing EZ
Description 41x41 pendant
Type Double
Length (mm) 1030
daN.m 73
Fixing centre distance 195
Kg/u 5.19
Go
Gewiss Code MV81477
Finishing EZ
Description 41x41 pendant
Type Double
Length (mm) 1510
daN.m 73
Fixing centre distance 195
Kg/u 7.37
Go
Gewiss Code MV81203
Finishing GAC
Description 41x29 pendant
Type Simple
Length (mm) 390
daN.m 24
Fixing centre distance 145
Kg/u 1.04
Go
Gewiss Code MV81206
Finishing GAC
Description 41x29 pendant
Type Simple
Length (mm) 630
daN.m 24
Fixing centre distance 145
Kg/u 1.39
Go
Gewiss Code MV81253
Finishing GAC
Description 41x29 pendant
Type Double
Length (mm) 390
daN.m 29
Fixing centre distance 170
Kg/u 1.64
Go
Gewiss Code MV81256
Finishing GAC
Description 41x29 pendant
Type Double
Length (mm) 630
daN.m 29
Fixing centre distance 170
Kg/u 2.34
Go
Gewiss Code MV81215
Finishing GAC
Description 41x41 pendant
Type Simple
Length (mm) 550
daN.m 57
Fixing centre distance 155
Kg/u 1.73
Go
Gewiss Code MV81218
Finishing GAC
Description 41x41 pendant
Type Simple
Length (mm) 790
daN.m 57
Fixing centre distance 155
Kg/u 2.27
Go
Gewiss Code MV81221
Finishing GAC
Description 41x41 pendant
Type Simple
Length (mm) 1030
daN.m 57
Fixing centre distance 155
Kg/u 2.81
Go
Gewiss Code MV81227
Finishing GAC
Description 41x41 pendant
Type Simple
Length (mm) 1510
daN.m 57
Fixing centre distance 155
Kg/u 3.9
Go
Gewiss Code MV81265
Finishing GAC
Description 41x41 pendant
Type Double
Length (mm) 550
daN.m 73
Fixing centre distance 195
Kg/u 3.01
Go
Gewiss Code MV81268
Finishing GAC
Description 41x41 pendant
Type Double
Length (mm) 790
daN.m 73
Fixing centre distance 195
Kg/u 4.1
Go
Gewiss Code MV81271
Finishing GAC
Description 41x41 pendant
Type Double
Length (mm) 1030
daN.m 73
Fixing centre distance 195
Kg/u 5.19
Go
Gewiss Code MV81277
Finishing GAC
Description 41x41 pendant
Type Double
Length (mm) 1510
daN.m 73
Fixing centre distance 195
Kg/u 7.37
Go
EQUIPMENT AND NOTES
MAVISTRUT notched rail
MAVISTRUT notched rail
Gewiss Code
Finishing
Description
Length (mm)
Thickness (mm)
Kg/u

Gewiss Code MV65180
Finishing Z275
Description Notched 41x29 rail
Length (mm) 240
Thickness (mm) 2
Kg/u 0.34
Go
Gewiss Code MV65171
Finishing Z275
Description Notched 41x29 rail
Length (mm) 1030
Thickness (mm) 2
Kg/u 1.5
Go
Gewiss Code MV65172
Finishing Z275
Description Notched 41x29 rail
Length (mm) 1990
Thickness (mm) 2
Kg/u 2.87
Go
Gewiss Code MV65173
Finishing Z275
Description Notched 41x29 rail
Length (mm) 3030
Thickness (mm) 2
Kg/u 4.37
Go
Gewiss Code MV68170
Finishing Z275
Description Notched 41x29 rail
Length (mm) 6000
Thickness (mm) 2
Kg/u 8.72
Go
Gewiss Code MV65174
Finishing Z275
Description Notched 41x41 rail
Length (mm) 1030
Thickness (mm) 2.5
Kg/u 2.35
Go
Gewiss Code MV65175
Finishing Z275
Description Notched 41x41 rail
Length (mm) 1990
Thickness (mm) 2.5
Kg/u 4.52
Go
Gewiss Code MV65176
Finishing Z275
Description Notched 41x41 rail
Length (mm) 3030
Thickness (mm) 2.5
Kg/u 6.87
Go
Gewiss Code MV68176
Finishing Z275
Description Notched 41x41 rail
Length (mm) 6000
Thickness (mm) 2.5
Kg/u 13.73
Go
Gewiss Code MV65280
Finishing GAC
Description Notched 41x29 rail
Length (mm) 240
Thickness (mm) 2
Kg/u 0.34
Go
Gewiss Code MV65271
Finishing GAC
Description Notched 41x29 rail
Length (mm) 1030
Thickness (mm) 2
Kg/u 1.5
Go
Gewiss Code MV65272
Finishing GAC
Description Notched 41x29 rail
Length (mm) 1990
Thickness (mm) 2
Kg/u 2.87
Go
Gewiss Code MV65273
Finishing GAC
Description Notched 41x29 rail
Length (mm) 3030
Thickness (mm) 2
Kg/u 4.37
Go
Gewiss Code MV68270
Finishing GAC
Description Notched 41x29 rail
Length (mm) 6000
Thickness (mm) 2
Kg/u 8.72
Go
Gewiss Code MV65274
Finishing GAC
Description Notched 41x41 rail
Length (mm) 1030
Thickness (mm) 2.5
Kg/u 2.35
Go
Gewiss Code MV65275
Finishing GAC
Description Notched 41x41 rail
Length (mm) 1990
Thickness (mm) 2.5
Kg/u 4.52
Go
Gewiss Code MV65276
Finishing GAC
Description Notched 41x41 rail
Length (mm) 3030
Thickness (mm) 2.5
Kg/u 6.87
Go
Gewiss Code MV68276
Finishing GAC
Description Notched 41x41 rail
Length (mm) 6000
Thickness (mm) 2.5
Kg/u 13.73
Go
Gewiss Code MV68255
Finishing GAC
Description Notched 41x41 double rail
Length (mm) 3030
Thickness (mm) 2.5
Kg/u 13.73
Go
Gewiss Code MV68256
Finishing GAC
Description Notched 41x41 double rail
Length (mm) 5990
Thickness (mm) 2.5
Kg/u 27.47
Go
EQUIPMENT AND NOTES
MAVISTRUT snap-fitting bracket
MAVISTRUT snap-fitting bracket
Gewiss Code
Finishing
Length (mm)
Max load (kg/bracket)
Height (mm)
Kg/u

Gewiss Code MV61100
Finishing Z275
Length (mm) 145
Max load (kg/bracket) 110
Height (mm) 82.5
Kg/u 0.22
Go
Gewiss Code MV61101
Finishing Z275
Length (mm) 245
Max load (kg/bracket) 100
Height (mm) 82.5
Kg/u 0.4
Go
Gewiss Code MV61102
Finishing Z275
Length (mm) 345
Max load (kg/bracket) 100
Height (mm) 82.5
Kg/u 0.59
Go
Gewiss Code MV61103
Finishing Z275
Length (mm) 445
Max load (kg/bracket) 171
Height (mm) 123
Kg/u 1.09
Go
Gewiss Code MV61104
Finishing Z275
Length (mm) 545
Max load (kg/bracket) 150
Height (mm) 123
Kg/u 1.41
Go
Gewiss Code MV61105
Finishing Z275
Length (mm) 595
Max load (kg/bracket) 121
Height (mm) 123
Kg/u 1.57
Go
Gewiss Code MV61106
Finishing Z275
Length (mm) 645
Max load (kg/bracket) 112
Height (mm) 123
Kg/u 1.73
Go
Gewiss Code MV61200
Finishing GAC
Length (mm) 145
Max load (kg/bracket) 110
Height (mm) 82.5
Kg/u 0.22
Go
Gewiss Code MV61201
Finishing GAC
Length (mm) 245
Max load (kg/bracket) 100
Height (mm) 82.5
Kg/u 0.4
Go
Gewiss Code MV61202
Finishing GAC
Length (mm) 345
Max load (kg/bracket) 100
Height (mm) 82.5
Kg/u 0.59
Go
Gewiss Code MV61203
Finishing GAC
Length (mm) 445
Max load (kg/bracket) 171
Height (mm) 123
Kg/u 1.09
Go
Gewiss Code MV61204
Finishing GAC
Length (mm) 545
Max load (kg/bracket) 150
Height (mm) 123
Kg/u 1.41
Go
Gewiss Code MV61205
Finishing GAC
Length (mm) 595
Max load (kg/bracket) 121
Height (mm) 123
Kg/u 1.57
Go
Gewiss Code MV61206
Finishing GAC
Length (mm) 645
Max load (kg/bracket) 112
Height (mm) 123
Kg/u 1.73
Go
EQUIPMENT AND NOTES
STRUT 41 smooth rail
STRUT 41 smooth rail
Gewiss Code
Finishing
Type
Thickness (mm)
Length (mm)
Kg/u

Gewiss Code MV68110
Finishing Z275
Type 41x21
Thickness (mm) 2
Length (mm) 3000
Kg/u 4.29
Go
Gewiss Code MV68111
Finishing Z275
Type 41x21
Thickness (mm) 2
Length (mm) 6000
Kg/u 8.59
Go
Gewiss Code MV68105
Finishing Z275
Type 41x41
Thickness (mm) 2.5
Length (mm) 3030
Kg/u 7.49
Go
Gewiss Code MV68106
Finishing Z275
Type 41x41
Thickness (mm) 2.5
Length (mm) 6000
Kg/u 14.97
Go
Gewiss Code MV68115
Finishing Z275
Type 41x41 ECO
Thickness (mm) 2
Length (mm) 3000
Kg/u 5.65
Go
Gewiss Code MV68116
Finishing Z275
Type 41x41 ECO
Thickness (mm) 2
Length (mm) 6000
Kg/u 11.3
Go
Gewiss Code MV68210
Finishing GAC
Type 41x21
Thickness (mm) 2
Length (mm) 3000
Kg/u 4.29
Go
Gewiss Code MV68211
Finishing GAC
Type 41x21
Thickness (mm) 2
Length (mm) 6000
Kg/u 8.59
Go
Gewiss Code MV68205
Finishing GAC
Type 41x41
Thickness (mm) 2.5
Length (mm) 3030
Kg/u 7.49
Go
Gewiss Code MV68206
Finishing GAC
Type 41x41
Thickness (mm) 2.5
Length (mm) 5990
Kg/u 14.97
Go
Gewiss Code MV68215
Finishing GAC
Type 41x41 ECO
Thickness (mm) 2
Length (mm) 3040
Kg/u 5.65
Go
Gewiss Code MV68216
Finishing GAC
Type 41x41 ECO
Thickness (mm) 2
Length (mm) 6000
Kg/u 11.3
Go
Gewiss Code MV68230
Finishing GAC
Type 41x21 Double
Thickness (mm) 2
Length (mm) 3000
Kg/u 8.59
Go
Gewiss Code MV68231
Finishing GAC
Type 41x21 Double
Thickness (mm) 2
Length (mm) 5990
Kg/u 17.17
Go
Gewiss Code MV68225
Finishing GAC
Type 41x41 Double
Thickness (mm) 2
Length (mm) 3030
Kg/u 14.97
Go
Gewiss Code MV68226
Finishing GAC
Type 41x41 Double
Thickness (mm) 2
Length (mm) 6000
Kg/u 29.94
Go
STRUT smooth pendent
STRUT smooth pendent
Gewiss Code
Finishing
Type
Length (mm)
daN.m
Kg/u
Fixing centre distance

Gewiss Code MV80412
Finishing EZ
Type 41x41
Length (mm) -
daN.m 100
Kg/u 1.27
Fixing centre distance 155
Go
Gewiss Code MV80413
Finishing EZ
Type 41x41
Length (mm) -
daN.m 100
Kg/u 1.47
Fixing centre distance 155
Go
Gewiss Code MV80415
Finishing EZ
Type 41x41
Length (mm) -
daN.m 100
Kg/u 1.88
Fixing centre distance 155
Go
Gewiss Code MV80416
Finishing EZ
Type 41x41
Length (mm) -
daN.m 100
Kg/u 2.08
Fixing centre distance 155
Go
Gewiss Code MV80418
Finishing EZ
Type 41x41
Length (mm) -
daN.m 100
Kg/u 2.49
Fixing centre distance 155
Go
Gewiss Code MV80420
Finishing EZ
Type 41x41
Length (mm) -
daN.m 100
Kg/u 2.9
Fixing centre distance 155
Go
Gewiss Code MV80426
Finishing EZ
Type 41x41
Length (mm) -
daN.m 100
Kg/u 4.12
Fixing centre distance 155
Go
Gewiss Code MV80433
Finishing EZ
Type 41x41
Length (mm) -
daN.m 100
Kg/u 5.54
Fixing centre distance 155
Go
Gewiss Code MV80212
Finishing GAC
Type 41x41
Length (mm) -
daN.m 100
Kg/u 1.27
Fixing centre distance 155
Go
Gewiss Code MV80213
Finishing GAC
Type 41x41
Length (mm) -
daN.m 100
Kg/u 1.47
Fixing centre distance 155
Go
Gewiss Code MV80215
Finishing GAC
Type 41x41
Length (mm) -
daN.m 100
Kg/u 1.88
Fixing centre distance 155
Go
Gewiss Code MV80216
Finishing GAC
Type 41x41
Length (mm) -
daN.m 100
Kg/u 2.08
Fixing centre distance 155
Go
Gewiss Code MV80218
Finishing GAC
Type 41x41
Length (mm) -
daN.m 100
Kg/u 2.49
Fixing centre distance 155
Go
Gewiss Code MV80220
Finishing GAC
Type 41x41
Length (mm) -
daN.m 100
Kg/u 2.9
Fixing centre distance 155
Go
Gewiss Code MV80226
Finishing GAC
Type 41x41
Length (mm) -
daN.m 100
Kg/u 4.12
Fixing centre distance 155
Go
Gewiss Code MV80233
Finishing GAC
Type 41x41
Length (mm) -
daN.m 100
Kg/u 5.54
Fixing centre distance 155
Go
Gewiss Code MV80265
Finishing GAC
Type 41x41 Double
Length (mm) -
daN.m 150
Kg/u 3.56
Fixing centre distance 195
Go
Gewiss Code MV80266
Finishing GAC
Type 41x41 Double
Length (mm) -
daN.m 150
Kg/u 3.99
Fixing centre distance 195
Go
Gewiss Code MV80267
Finishing GAC
Type 41x41 Double
Length (mm) -
daN.m 150
Kg/u 4.43
Fixing centre distance 195
Go
Gewiss Code MV80268
Finishing GAC
Type 41x41 Double
Length (mm) -
daN.m 150
Kg/u 4.86
Fixing centre distance 195
Go
Gewiss Code MV80270
Finishing GAC
Type 41x41 Double
Length (mm) -
daN.m 150
Kg/u 5.73
Fixing centre distance 195
Go
Gewiss Code MV80276
Finishing GAC
Type 41x41 Double
Length (mm) -
daN.m 150
Kg/u 8.35
Fixing centre distance 195
Go
Gewiss Code MV80283
Finishing GAC
Type 41x41 Double
Length (mm) -
daN.m 150
Kg/u 11.4
Fixing centre distance 195
Go
Gewiss Code MV80295
Finishing GAC
Type 41x41 Double
Length (mm) -
daN.m 150
Kg/u 16.65
Fixing centre distance 195
Go

Supports

EQUIPMENT AND NOTES
Bracket 41x41 single flat tang
Bracket 41x41 single flat tang
Gewiss Code
Length (mm)
Max load (kg/bracket)
Finishing
Kg/u

Gewiss Code MV61447
Length (mm) 150
Max load (kg/bracket) 825
Finishing EZ
Kg/u 0.6
Go
Gewiss Code MV61448
Length (mm) 250
Max load (kg/bracket) 600
Finishing EZ
Kg/u 0.81
Go
Gewiss Code MV61449
Length (mm) 350
Max load (kg/bracket) 465
Finishing EZ
Kg/u 1.01
Go
Gewiss Code MV61450
Length (mm) 450
Max load (kg/bracket) 385
Finishing EZ
Kg/u 1.22
Go
Gewiss Code MV61451
Length (mm) 550
Max load (kg/bracket) 280
Finishing EZ
Kg/u 1.43
Go
Gewiss Code MV61452
Length (mm) 650
Max load (kg/bracket) 250
Finishing EZ
Kg/u 1.64
Go
Gewiss Code MV61247
Length (mm) 150
Max load (kg/bracket) 825
Finishing GAC
Kg/u 0.6
Go
Gewiss Code MV61248
Length (mm) 250
Max load (kg/bracket) 600
Finishing GAC
Kg/u 0.81
Go
Gewiss Code MV61249
Length (mm) 350
Max load (kg/bracket) 465
Finishing GAC
Kg/u 1.01
Go
Gewiss Code MV61250
Length (mm) 450
Max load (kg/bracket) 385
Finishing GAC
Kg/u 1.22
Go
Gewiss Code MV61251
Length (mm) 550
Max load (kg/bracket) 280
Finishing GAC
Kg/u 1.43
Go
Gewiss Code MV61252
Length (mm) 650
Max load (kg/bracket) 250
Finishing GAC
Kg/u 1.64
Go
EQUIPMENT AND NOTES

Link parts for STRUT and MAVISTRUT rails

Profile bracket 41x41
Profile bracket 41x41
Gewiss Code
